Geom::Geometry2d Class Reference

#include <Geometry2d.h>

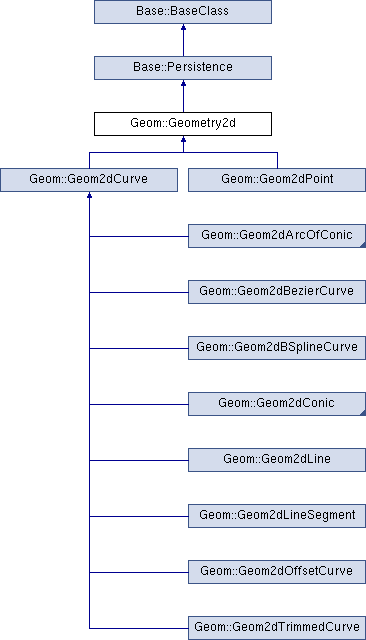

Inheritance diagram for Geom::Geometry2d:

Public Member Functions
virtual	~Geometry2d ()
virtual TopoDS_Shape	toShape () const =0
virtual const	Handle (Geom2d_Geometry) &handle() const =0
virtual void	save (Base::AbstractWriter &, Base::PersistenceVersion &) override
	This method is used to save properties or very small amounts of data to an XML document. More...
virtual void	restore (Base::AbstractXMLReader &, Base::PersistenceVersion &) override
	This method is used to restore properties from an XML document. More...
virtual Geometry2d *	clone (void) const =0
	returns a cloned object More...
Public Member Functions inherited from Base::Persistence
virtual void	saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
	This method is used to save large amounts of data to a binary file. More...
virtual void	restoreDocFile (Base::Reader &, const Base::String &)
	This method is used to restore large amounts of data from a binary file. More...
virtual bool	mustbeSaved () const
	Return 'true' if this object must always be saved in the file. More...
virtual bool	createSQL (Base::AbstractWriter &, Base::PersistenceVersion &, bool)
	This method is used to save properties or very small amounts of data to an XML document. More...
Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const
template<typename T >
bool	isDerivedFrom () const
bool	isDerivedFrom (const Type type) const
	BaseClass ()
	Construction. More...
virtual	~BaseClass ()
	Destruction. More...

Protected Member Functions
	Geometry2d ()

Additional Inherited Members
Static Public Member Functions inherited from Base::Persistence
static std::string	encodeAttribute (const std::string &)
Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)
static void	init (void)
static void *	create (void)
static void	setIfcNameAndID (const std::string &n, int id)
Public Attributes inherited from Base::BaseClass
long	____deadVal = 0xBADEAFFE
Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char *ClassName, const char *ParentName, Type::instantiationMethod method=0)
static void	initIfcTypes (const std::string &s, Base::Type classTypeId, int id)

Constructor & Destructor Documentation

~Geometry2d()

virtual Geom::Geometry2d::~Geometry2d ( )

virtual

Geometry2d()

Geom::Geometry2d::Geometry2d ( )

protected

Member Function Documentation

clone()

virtual Geometry2d* Geom::Geometry2d::clone ( void  ) const

pure virtual

returns a cloned object

Implemented in Geom::Geom2dTrimmedCurve, Geom::Geom2dOffsetCurve, Geom::Geom2dLineSegment, Geom::Geom2dLine, Geom::Geom2dArcOfParabola, Geom::Geom2dParabola, Geom::Geom2dArcOfHyperbola, Geom::Geom2dHyperbola, Geom::Geom2dArcOfEllipse, Geom::Geom2dEllipse, Geom::Geom2dArcOfCircle, Geom::Geom2dCircle, Geom::Geom2dArcOfConic, Geom::Geom2dConic, Geom::Geom2dBSplineCurve, Geom::Geom2dBezierCurve, and Geom::Geom2dPoint.

Handle()

virtual const Geom::Geometry2d::Handle ( Geom2d_Geometry  ) const &

pure virtual

Implemented in Geom::Geom2dTrimmedCurve, Geom::Geom2dOffsetCurve, Geom::Geom2dLineSegment, Geom::Geom2dLine, Geom::Geom2dArcOfParabola, Geom::Geom2dParabola, Geom::Geom2dArcOfHyperbola, Geom::Geom2dHyperbola, Geom::Geom2dArcOfEllipse, Geom::Geom2dEllipse, Geom::Geom2dArcOfCircle, Geom::Geom2dCircle, Geom::Geom2dArcOfConic, Geom::Geom2dConic, Geom::Geom2dBSplineCurve, Geom::Geom2dBezierCurve, and Geom::Geom2dPoint.

restore()

virtual void Geom::Geometry2d::restore ( Base::AbstractXMLReader &  , Base::PersistenceVersion &    )

overridevirtual

This method is used to restore properties from an XML document.

Implements Base::Persistence.

Reimplemented in Geom::Geom2dTrimmedCurve, Geom::Geom2dOffsetCurve, Geom::Geom2dLineSegment, Geom::Geom2dLine, Geom::Geom2dArcOfParabola, Geom::Geom2dParabola, Geom::Geom2dArcOfHyperbola, Geom::Geom2dHyperbola, Geom::Geom2dArcOfEllipse, Geom::Geom2dEllipse, Geom::Geom2dArcOfCircle, Geom::Geom2dCircle, Geom::Geom2dBSplineCurve, Geom::Geom2dBezierCurve, and Geom::Geom2dPoint.

save()

virtual void Geom::Geometry2d::save ( Base::AbstractWriter &  , Base::PersistenceVersion &    )

overridevirtual

This method is used to save properties or very small amounts of data to an XML document.

Implements Base::Persistence.

Reimplemented in Geom::Geom2dTrimmedCurve, Geom::Geom2dOffsetCurve, Geom::Geom2dLineSegment, Geom::Geom2dLine, Geom::Geom2dArcOfParabola, Geom::Geom2dParabola, Geom::Geom2dArcOfHyperbola, Geom::Geom2dHyperbola, Geom::Geom2dArcOfEllipse, Geom::Geom2dEllipse, Geom::Geom2dArcOfCircle, Geom::Geom2dCircle, Geom::Geom2dBSplineCurve, Geom::Geom2dBezierCurve, and Geom::Geom2dPoint.

toShape()

virtual TopoDS_Shape Geom::Geometry2d::toShape ( ) const

pure virtual

Implemented in Geom::Geom2dCurve, and Geom::Geom2dPoint.

---

The documentation for this class was generated from the following file:

• D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/Geom/include/Geom/Geometry2d.h
