#include <Geometry2d.h>

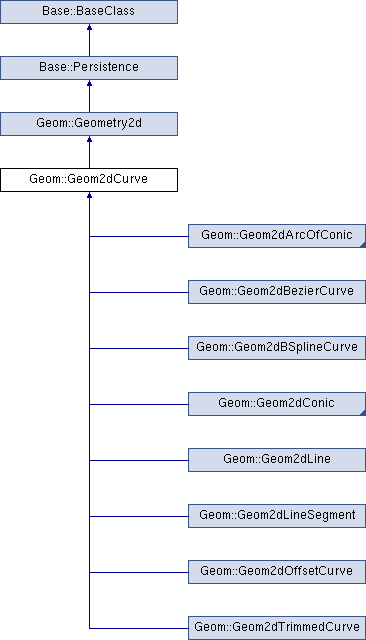

Inheritance diagram for Geom::Geom2dCurve:

Public Member Functions
	Geom2dCurve ()

virtual	~Geom2dCurve ()

virtual TopoDS_Shape	toShape () const

bool	tangent (double u, gp_Dir2d &) const

Base::Vector2d	pointAtParameter (double u) const

Base::Vector2d	firstDerivativeAtParameter (double u) const

Base::Vector2d	secondDerivativeAtParameter (double u) const

bool	normal (double u, gp_Dir2d &dir) const

bool	closestParameter (const Base::Vector2d &point, double &u) const

bool	closestParameterToBasicCurve (const Base::Vector2d &point, double &u) const

Public Member Functions inherited from Geom::Geometry2d
virtual	~Geometry2d ()

virtual const	Handle (Geom2d_Geometry) &handle() const =0

virtual void	save (Base::AbstractWriter &, Base::PersistenceVersion &) override
	This method is used to save properties or very small amounts of data to an XML document. More...

virtual void	restore (Base::AbstractXMLReader &, Base::PersistenceVersion &) override
	This method is used to restore properties from an XML document. More...

virtual Geometry2d *	clone (void) const =0
	returns a cloned object More...

Public Member Functions inherited from Base::Persistence
virtual void	saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
	This method is used to save large amounts of data to a binary file. More...

virtual void	restoreDocFile (Base::Reader &, const Base::String &)
	This method is used to restore large amounts of data from a binary file. More...

virtual bool	mustbeSaved () const
	Return 'true' if this object must always be saved in the file. More...

virtual bool	createSQL (Base::AbstractWriter &, Base::PersistenceVersion &, bool)
	This method is used to save properties or very small amounts of data to an XML document. More...

Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const

template<typename T >
bool	isDerivedFrom () const

bool	isDerivedFrom (const Type type) const

	BaseClass ()
	Construction. More...

virtual	~BaseClass ()
	Destruction. More...

Additional Inherited Members
Static Public Member Functions inherited from Base::Persistence
static std::string	encodeAttribute (const std::string &)

Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)

static void	init (void)

static void *	create (void)

static void	setIfcNameAndID (const std::string &n, int id)

Public Attributes inherited from Base::BaseClass
long	____deadVal = 0xBADEAFFE

Protected Member Functions inherited from Geom::Geometry2d
	Geometry2d ()

Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char ClassName, const char ParentName, Type::instantiationMethod method=0)

static void	initIfcTypes (const std::string &s, Base::Type classTypeId, int id)

Constructor & Destructor Documentation

◆ Geom2dCurve()

Geom::Geom2dCurve::Geom2dCurve ( )

◆ ~Geom2dCurve()

virtual Geom::Geom2dCurve::~Geom2dCurve ( )

virtual

Member Function Documentation

◆ closestParameter()

bool Geom::Geom2dCurve::closestParameter	(	const Base::Vector2d &	point,
		double &	u
	)		const

◆ closestParameterToBasicCurve()

bool Geom::Geom2dCurve::closestParameterToBasicCurve	(	const Base::Vector2d &	point,
		double &	u
	)		const

◆ firstDerivativeAtParameter()

Base::Vector2d Geom::Geom2dCurve::firstDerivativeAtParameter ( double u ) const

◆ normal()

bool Geom::Geom2dCurve::normal	(	double	u,
		gp_Dir2d &	dir
	)		const

◆ pointAtParameter()

Base::Vector2d Geom::Geom2dCurve::pointAtParameter ( double u ) const

◆ secondDerivativeAtParameter()

Base::Vector2d Geom::Geom2dCurve::secondDerivativeAtParameter ( double u ) const

◆ tangent()

bool Geom::Geom2dCurve::tangent	(	double	u,
		gp_Dir2d &
	)		const

◆ toShape()

virtual TopoDS_Shape Geom::Geom2dCurve::toShape ( ) const
