Geom::Geom2dArcOfConic Class Referenceabstract
#include <Geometry2d.h>

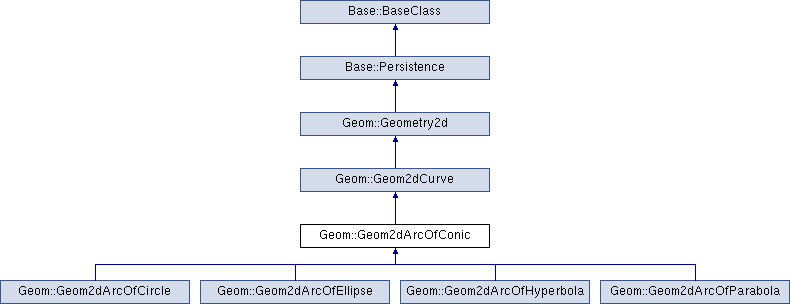

Inheritance diagram for Geom::Geom2dArcOfConic:
Public Member Functions | |
| virtual | ~Geom2dArcOfConic () |
| virtual Geometry2d * | clone (void) const =0 |
| returns a cloned object More... | |
| Base::Vector2d | getLocation (void) const |
| void | setLocation (const Base::Vector2d &Center) |
| bool | isReversed () const |
| Base::Vector2d | getStartPoint () const |
| Base::Vector2d | getEndPoint () const |
| void | getRange (double &u, double &v) const |
| void | setRange (double u, double v) |
| const | Handle (Geom2d_Geometry) &handle() const =0 |
 Public Member Functions inherited from Geom::Geom2dCurve | |
| Geom2dCurve () | |
| virtual | ~Geom2dCurve () |
| virtual TopoDS_Shape | toShape () const |
| bool | tangent (double u, gp_Dir2d &) const |
| Base::Vector2d | pointAtParameter (double u) const |
| Base::Vector2d | firstDerivativeAtParameter (double u) const |
| Base::Vector2d | secondDerivativeAtParameter (double u) const |
| bool | normal (double u, gp_Dir2d &dir) const |
| bool | closestParameter (const Base::Vector2d &point, double &u) const |
| bool | closestParameterToBasicCurve (const Base::Vector2d &point, double &u) const |
| Public Member Functions inherited from Geom::Geometry2d | |
| virtual | ~Geometry2d () |
| virtual void | save (Base::AbstractWriter &, Base::PersistenceVersion &) override |
| This method is used to save properties or very small amounts of data to an XML document. More... | |
| virtual void | restore (Base::AbstractXMLReader &, Base::PersistenceVersion &) override |
| This method is used to restore properties from an XML document. More... | |
| Public Member Functions inherited from Base::Persistence | |
| virtual void | saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &) |
| This method is used to save large amounts of data to a binary file. More... | |
| virtual void | restoreDocFile (Base::Reader &, const Base::String &) |
| This method is used to restore large amounts of data from a binary file. More... | |
| virtual bool | mustbeSaved () const |
| Return 'true' if this object must always be saved in the file. More... | |
| virtual bool | createSQL (Base::AbstractWriter &, Base::PersistenceVersion &, bool) |
| This method is used to save properties or very small amounts of data to an XML document. More... | |
| Public Member Functions inherited from Base::BaseClass | |
| virtual Type | getTypeId (void) const |
| template<typename T > | |
| bool | isDerivedFrom () const |
| bool | isDerivedFrom (const Type type) const |
| BaseClass () | |
| Construction. More... | |
| virtual | ~BaseClass () |
| Destruction. More... | |
Protected Member Functions | |
| Geom2dArcOfConic () | |
| void | SaveAxis (Base::AbstractWriter &writer, const gp_Ax22d &, double u, double v) const |
| void | RestoreAxis (Base::AbstractXMLReader &reader, gp_Ax22d &, double &u, double &v) |
| Protected Member Functions inherited from Geom::Geometry2d | |
| Geometry2d () | |
Additional Inherited Members | |
| Static Public Member Functions inherited from Base::Persistence | |
| static std::string | encodeAttribute (const std::string &) |
| Static Public Member Functions inherited from Base::BaseClass | |
| static Type | getClassTypeId (void) |
| static void | init (void) |
| static void * | create (void) |
| static void | setIfcNameAndID (const std::string &n, int id) |
| Public Attributes inherited from Base::BaseClass | |
| long | ____deadVal = 0xBADEAFFE |
| Static Protected Member Functions inherited from Base::BaseClass | |
| static void | initSubclass (Base::Type &toInit, const char *ClassName, const char *ParentName, Type::instantiationMethod method=0) |
| static void | initIfcTypes (const std::string &s, Base::Type classTypeId, int id) |
Constructor & Destructor Documentation
◆ Geom2dArcOfConic()
|
protected |
◆ ~Geom2dArcOfConic()
|
virtual |
Member Function Documentation
◆ clone()
|
pure virtual |
returns a cloned object
Implements Geom::Geometry2d.
Implemented in Geom::Geom2dArcOfParabola, Geom::Geom2dArcOfHyperbola, Geom::Geom2dArcOfEllipse, and Geom::Geom2dArcOfCircle.
◆ getEndPoint()
| Base::Vector2d Geom::Geom2dArcOfConic::getEndPoint | ( | ) | const |
◆ getLocation()
| Base::Vector2d Geom::Geom2dArcOfConic::getLocation | ( | void | ) | const |
◆ getRange()
| void Geom::Geom2dArcOfConic::getRange | ( | double & | u, |
| double & | v | ||
| ) | const |
◆ getStartPoint()
| Base::Vector2d Geom::Geom2dArcOfConic::getStartPoint | ( | ) | const |
◆ Handle()
|
pure virtual |
Implements Geom::Geometry2d.
Implemented in Geom::Geom2dArcOfParabola, Geom::Geom2dArcOfHyperbola, Geom::Geom2dArcOfEllipse, and Geom::Geom2dArcOfCircle.
◆ isReversed()
| bool Geom::Geom2dArcOfConic::isReversed | ( | ) | const |
◆ RestoreAxis()
|
protected |
◆ SaveAxis()
|
protected |
◆ setLocation()
| void Geom::Geom2dArcOfConic::setLocation | ( | const Base::Vector2d & | Center | ) |
◆ setRange()
| void Geom::Geom2dArcOfConic::setRange | ( | double | u, |
| double | v | ||
| ) |
The documentation for this class was generated from the following file:
- D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/Geom/include/Geom/Geometry2d.h
