Geom::Geom2dConic Class Referenceabstract

#include <Geometry2d.h>

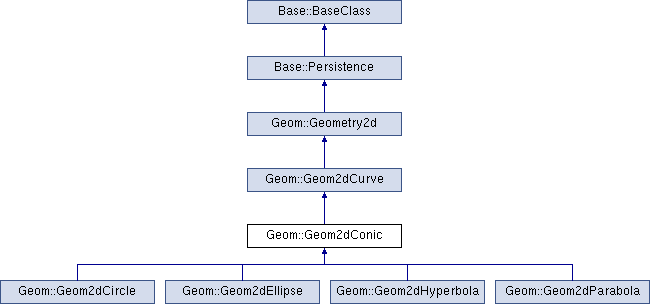

Inheritance diagram for Geom::Geom2dConic:
Geom::Geom2dCurve Geom::Geometry2d Base::Persistence Base::BaseClass Geom::Geom2dCircle Geom::Geom2dEllipse Geom::Geom2dHyperbola Geom::Geom2dParabola

Public Member Functions

virtual ~Geom2dConic ()

virtual Geometry2d * clone (void) const =0
 returns a cloned object More...

Base::Vector2d getLocation (void) const

void setLocation (const Base::Vector2d &Center)

bool isReversed () const

const Handle (Geom2d_Geometry) &handle() const =0

- Public Member Functions inherited from Geom::Geom2dCurve
 Geom2dCurve ()

virtual ~Geom2dCurve ()

virtual TopoDS_Shape toShape () const

bool tangent (double u, gp_Dir2d &) const

Base::Vector2d pointAtParameter (double u) const

Base::Vector2d firstDerivativeAtParameter (double u) const

Base::Vector2d secondDerivativeAtParameter (double u) const

bool normal (double u, gp_Dir2d &dir) const

bool closestParameter (const Base::Vector2d &point, double &u) const

bool closestParameterToBasicCurve (const Base::Vector2d &point, double &u) const

- Public Member Functions inherited from Geom::Geometry2d
virtual ~Geometry2d ()

virtual void save (Base::AbstractWriter &, Base::PersistenceVersion &) override
 This method is used to save properties or very small amounts of data to an XML document. More...

virtual void restore (Base::AbstractXMLReader &, Base::PersistenceVersion &) override
 This method is used to restore properties from an XML document. More...

- Public Member Functions inherited from Base::Persistence
virtual void saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
 This method is used to save large amounts of data to a binary file. More...

virtual void restoreDocFile (Base::Reader &, const Base::String &)
 This method is used to restore large amounts of data from a binary file. More...

virtual bool mustbeSaved () const
 Return 'true' if this object must always be saved in the file. More...

virtual bool createSQL (Base::AbstractWriter &, Base::PersistenceVersion &, bool)
 This method is used to save properties or very small amounts of data to an XML document. More...

- Public Member Functions inherited from Base::BaseClass
virtual Type getTypeId (void) const

template<typename T >
bool isDerivedFrom () const

bool isDerivedFrom (const Type type) const

 BaseClass ()
 Construction. More...

virtual ~BaseClass ()
 Destruction. More...


Protected Member Functions

 Geom2dConic ()

void SaveAxis (Base::AbstractWriter &writer, const gp_Ax22d &) const

void RestoreAxis (Base::AbstractXMLReader &reader, gp_Ax22d &)

- Protected Member Functions inherited from Geom::Geometry2d
 Geometry2d ()


Additional Inherited Members

- Static Public Member Functions inherited from Base::Persistence
static std::string encodeAttribute (const std::string &)

- Static Public Member Functions inherited from Base::BaseClass
static Type getClassTypeId (void)

static void init (void)

static void * create (void)

static void setIfcNameAndID (const std::string &n, int id)

- Public Attributes inherited from Base::BaseClass
long ____deadVal = 0xBADEAFFE

- Static Protected Member Functions inherited from Base::BaseClass
static void initSubclass (Base::Type &toInit, const char *ClassName, const char *ParentName, Type::instantiationMethod method=0)

static void initIfcTypes (const std::string &s, Base::Type classTypeId, int id)


Constructor & Destructor Documentation

◆ Geom2dConic()

Geom::Geom2dConic::Geom2dConic ( )
protected

◆ ~Geom2dConic()

virtual Geom::Geom2dConic::~Geom2dConic ( )
virtual

Member Function Documentation

◆ clone()

virtual Geometry2d* Geom::Geom2dConic::clone ( void  ) const
pure virtual

returns a cloned object

Implements Geom::Geometry2d.

Implemented in Geom::Geom2dParabola, Geom::Geom2dHyperbola, Geom::Geom2dEllipse, and Geom::Geom2dCircle.

◆ getLocation()

Base::Vector2d Geom::Geom2dConic::getLocation ( void  ) const

◆ Handle()

const Geom::Geom2dConic::Handle ( Geom2d_Geometry  ) const &
pure virtual

Implements Geom::Geometry2d.

Implemented in Geom::Geom2dParabola, Geom::Geom2dHyperbola, Geom::Geom2dEllipse, and Geom::Geom2dCircle.

◆ isReversed()

bool Geom::Geom2dConic::isReversed ( ) const

◆ RestoreAxis()

void Geom::Geom2dConic::RestoreAxis ( Base::AbstractXMLReader &  reader,
gp_Ax22d &
)
protected

◆ SaveAxis()

void Geom::Geom2dConic::SaveAxis ( Base::AbstractWriter &  writer,
const gp_Ax22d &
) const
protected

◆ setLocation()

void Geom::Geom2dConic::setLocation ( const Base::Vector2d &  Center)
The documentation for this class was generated from the following file:
