#include <Geometry.h>

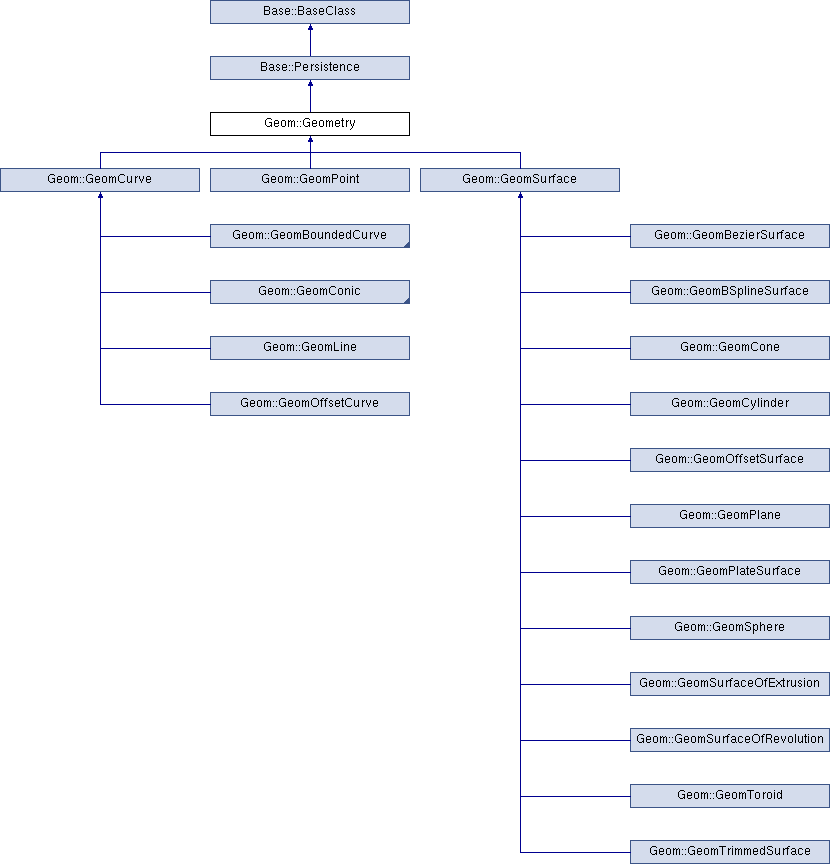

Inheritance diagram for Geom::Geometry:

Public Member Functions
virtual	~Geometry ()

virtual TopoDS_Shape	toShape () const =0

virtual const	Handle (Geom_Geometry) &handle() const =0

virtual void	save (Base::AbstractWriter &, Base::PersistenceVersion &) override
	This method is used to save properties or very small amounts of data to an XML document. More...

virtual void	restore (Base::AbstractXMLReader &, Base::PersistenceVersion &) override
	This method is used to restore properties from an XML document. More...

virtual Geometry *	copy (void) const =0

Geometry *	clone (void) const

boost::uuids::uuid	getTag () const
	returns the tag of the geometry object More...

std::vector< std::weak_ptr< const GeometryExtension > >	getExtensions () const

bool	hasExtension (Base::Type type) const

bool	hasExtension (std::string name) const

std::weak_ptr< const GeometryExtension >	getExtension (Base::Type type) const

std::weak_ptr< const GeometryExtension >	getExtension (std::string name) const

std::weak_ptr< GeometryExtension >	getExtension (Base::Type type)

std::weak_ptr< GeometryExtension >	getExtension (std::string name)

void	setExtension (std::unique_ptr< GeometryExtension > &&geo)

void	deleteExtension (Base::Type type)

void	deleteExtension (std::string name)

void	mirror (const Base::Vector3d &point)

void	mirror (const Base::Vector3d &point, const Base::Vector3d &dir)

void	rotate (const Base::Placement &plm)

void	scale (const Base::Vector3d &vec, double scale)

void	transform (const Base::Matrix4D &mat)

void	translate (const Base::Vector3d &vec)

Public Member Functions inherited from Base::Persistence
virtual void	saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
	This method is used to save large amounts of data to a binary file. More...

virtual void	restoreDocFile (Base::Reader &, const Base::String &)
	This method is used to restore large amounts of data from a binary file. More...

virtual bool	mustbeSaved () const
	Return 'true' if this object must always be saved in the file. More...

virtual bool	createSQL (Base::AbstractWriter &, Base::PersistenceVersion &, bool)
	This method is used to save properties or very small amounts of data to an XML document. More...

Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const

template<typename T >
bool	isDerivedFrom () const

bool	isDerivedFrom (const Type type) const

	BaseClass ()
	Construction. More...

virtual	~BaseClass ()
	Destruction. More...

Protected Member Functions
void	createNewTag ()
	create a new tag for the geometry object More...

void	assignTag (const Geom::Geometry *)
	copies the tag from the geometry passed as a parameter to this object More...

void	copyNonTag (const Geom::Geometry *)

	Geometry ()

Protected Attributes
boost::uuids::uuid	tag

std::vector< std::shared_ptr< GeometryExtension > >	extensions

Additional Inherited Members
Static Public Member Functions inherited from Base::Persistence
static std::string	encodeAttribute (const std::string &)

Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)

static void	init (void)

static void *	create (void)

static void	setIfcNameAndID (const std::string &n, int id)

Public Attributes inherited from Base::BaseClass
long	____deadVal = 0xBADEAFFE

Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char ClassName, const char ParentName, Type::instantiationMethod method=0)

static void	initIfcTypes (const std::string &s, Base::Type classTypeId, int id)

Constructor & Destructor Documentation

◆ ~Geometry()

virtual Geom::Geometry::~Geometry ( )

virtual

◆ Geometry()

Geom::Geometry::Geometry ( )

protected

Member Function Documentation

◆ assignTag()

void Geom::Geometry::assignTag ( const Geom::Geometry * )

protected

copies the tag from the geometry passed as a parameter to this object

◆ clone()

Geometry* Geom::Geometry::clone ( void ) const

returns a cloned object. A cloned object has the same tag (see getTag) as the original object. if you want a copy not having the same tag, you can use copy() instead. If you want a clone with another geometry handle, it is possible to clone an object and then assign another handle or to create an object via constructor and use assignTag to assign the tag of the other geometry. If you do not desire to have the same tag, then a copy can be performed by using a constructor (which will generate another tag) and then, if necessary (e.g. if the constructor did not take a handle as a parameter), set a new handle.

◆ copy()

virtual Geometry* Geom::Geometry::copy ( void ) const

pure virtual

returns a copy of this object having a new randomly generated tag. If you also want to copy the tag, you may use clone() instead. For creation of geometry with other handles, with or without the same tag, you may use the constructors and the sethandle functions. The tag of a geometry can be copied to another geometry using the assignTag function.

Implemented in Geom::GeomSurfaceOfExtrusion, Geom::GeomSurfaceOfRevolution, Geom::GeomTrimmedSurface, Geom::GeomPlateSurface, Geom::GeomOffsetSurface, Geom::GeomPlane, Geom::GeomToroid, Geom::GeomSphere, Geom::GeomCone, Geom::GeomCylinder, Geom::GeomBSplineSurface, Geom::GeomBezierSurface, Geom::GeomOffsetCurve, Geom::GeomLineSegment, Geom::GeomLine, Geom::GeomArcOfParabola, Geom::GeomParabola, Geom::GeomArcOfHyperbola, Geom::GeomHyperbola, Geom::GeomArcOfEllipse, Geom::GeomEllipse, Geom::GeomArcOfCircle, Geom::GeomCircle, Geom::GeomArcOfConic, Geom::GeomTrimmedCurve, Geom::GeomConic, Geom::GeomBSplineCurve, Geom::GeomBezierCurve, and Geom::GeomPoint.

◆ copyNonTag()

void Geom::Geometry::copyNonTag ( const Geom::Geometry * )

protected

◆ createNewTag()

void Geom::Geometry::createNewTag ( )

protected

create a new tag for the geometry object

◆ deleteExtension() [1/2]

void Geom::Geometry::deleteExtension ( Base::Type type )

◆ deleteExtension() [2/2]

void Geom::Geometry::deleteExtension ( std::string name )

◆ getExtension() [1/4]

std::weak_ptr<const GeometryExtension> Geom::Geometry::getExtension ( Base::Type type ) const

◆ getExtension() [2/4]

std::weak_ptr<const GeometryExtension> Geom::Geometry::getExtension ( std::string name ) const

◆ getExtension() [3/4]

std::weak_ptr<GeometryExtension> Geom::Geometry::getExtension ( Base::Type type )

◆ getExtension() [4/4]

std::weak_ptr<GeometryExtension> Geom::Geometry::getExtension ( std::string name )

◆ getExtensions()

std::vector<std::weak_ptr<const GeometryExtension> > Geom::Geometry::getExtensions ( ) const

◆ getTag()

boost::uuids::uuid Geom::Geometry::getTag ( ) const

returns the tag of the geometry object

◆ Handle()

virtual const Geom::Geometry::Handle ( Geom_Geometry ) const &

pure virtual

◆ hasExtension() [1/2]

bool Geom::Geometry::hasExtension ( Base::Type type ) const

◆ hasExtension() [2/2]

bool Geom::Geometry::hasExtension ( std::string name ) const

◆ mirror() [1/2]

void Geom::Geometry::mirror ( const Base::Vector3d & point )

◆ mirror() [2/2]

void Geom::Geometry::mirror	(	const Base::Vector3d &	point,
		const Base::Vector3d &	dir
	)

◆ restore()

virtual void Geom::Geometry::restore	(	Base::AbstractXMLReader &	,
		Base::PersistenceVersion &
	)

overridevirtual

This method is used to restore properties from an XML document.

Implements Base::Persistence.

Reimplemented in Geom::GeomSurfaceOfExtrusion, Geom::GeomSurfaceOfRevolution, Geom::GeomTrimmedSurface, Geom::GeomPlateSurface, Geom::GeomOffsetSurface, Geom::GeomPlane, Geom::GeomToroid, Geom::GeomSphere, Geom::GeomCone, Geom::GeomCylinder, Geom::GeomBSplineSurface, Geom::GeomBezierSurface, Geom::GeomOffsetCurve, Geom::GeomLineSegment, Geom::GeomLine, Geom::GeomArcOfParabola, Geom::GeomParabola, Geom::GeomArcOfHyperbola, Geom::GeomHyperbola, Geom::GeomArcOfEllipse, Geom::GeomEllipse, Geom::GeomArcOfCircle, Geom::GeomCircle, Geom::GeomTrimmedCurve, Geom::GeomBSplineCurve, Geom::GeomBezierCurve, and Geom::GeomPoint.

◆ rotate()

void Geom::Geometry::rotate ( const Base::Placement & plm )

◆ save()

virtual void Geom::Geometry::save	(	Base::AbstractWriter &	,
		Base::PersistenceVersion &
	)

overridevirtual

This method is used to save properties or very small amounts of data to an XML document.

Implements Base::Persistence.

Reimplemented in Geom::GeomSurfaceOfExtrusion, Geom::GeomSurfaceOfRevolution, Geom::GeomTrimmedSurface, Geom::GeomPlateSurface, Geom::GeomOffsetSurface, Geom::GeomPlane, Geom::GeomToroid, Geom::GeomSphere, Geom::GeomCone, Geom::GeomCylinder, Geom::GeomBSplineSurface, Geom::GeomBezierSurface, Geom::GeomOffsetCurve, Geom::GeomLineSegment, Geom::GeomLine, Geom::GeomArcOfParabola, Geom::GeomParabola, Geom::GeomArcOfHyperbola, Geom::GeomHyperbola, Geom::GeomArcOfEllipse, Geom::GeomEllipse, Geom::GeomArcOfCircle, Geom::GeomCircle, Geom::GeomTrimmedCurve, Geom::GeomBSplineCurve, Geom::GeomBezierCurve, and Geom::GeomPoint.

◆ scale()

void Geom::Geometry::scale	(	const Base::Vector3d &	vec,
		double	scale
	)

◆ setExtension()

void Geom::Geometry::setExtension ( std::unique_ptr< GeometryExtension > && geo )

◆ toShape()

virtual TopoDS_Shape Geom::Geometry::toShape ( ) const

pure virtual

Implemented in Geom::GeomSurface, Geom::GeomCurve, and Geom::GeomPoint.

◆ transform()

void Geom::Geometry::transform ( const Base::Matrix4D & mat )

◆ translate()

void Geom::Geometry::translate ( const Base::Vector3d & vec )

Member Data Documentation

◆ extensions

std::vector<std::shared_ptr<GeometryExtension> > Geom::Geometry::extensions

protected

◆ tag

boost::uuids::uuid Geom::Geometry::tag

protected

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/Geom/include/Geom/Geometry.h
