#include <Geometry.h>

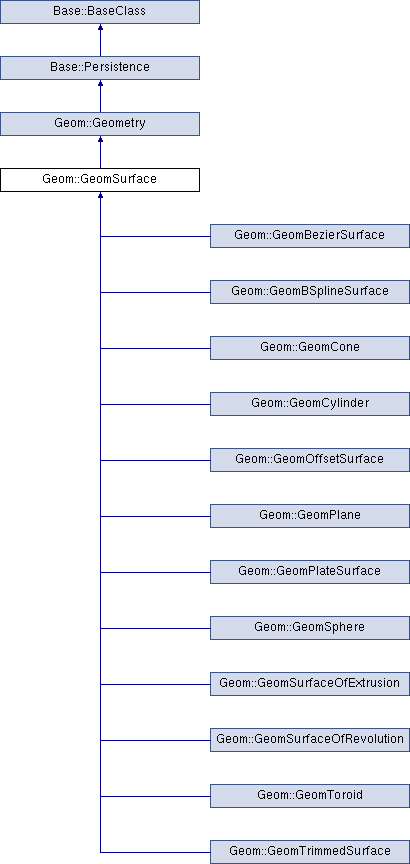

Inheritance diagram for Geom::GeomSurface:

Public Types
enum	Curvature { Maximum, Minimum, Mean, Gaussian }

Public Member Functions
	GeomSurface ()

virtual	~GeomSurface ()

TopoDS_Shape	toShape () const

bool	tangentU (double u, double v, gp_Dir &dirU) const

bool	tangentV (double u, double v, gp_Dir &dirV) const

bool	normal (double u, double v, gp_Dir &dir) const

Curvature information
bool	isUmbillic (double u, double v) const

double	curvature (double u, double v, Curvature) const

void	curvatureDirections (double u, double v, gp_Dir &maxD, gp_Dir &minD) const

Public Member Functions inherited from Geom::Geometry
virtual	~Geometry ()

virtual const	Handle (Geom_Geometry) &handle() const =0

virtual void	save (Base::AbstractWriter &, Base::PersistenceVersion &) override
	This method is used to save properties or very small amounts of data to an XML document. More...

virtual void	restore (Base::AbstractXMLReader &, Base::PersistenceVersion &) override
	This method is used to restore properties from an XML document. More...

virtual Geometry *	copy (void) const =0

Geometry *	clone (void) const

boost::uuids::uuid	getTag () const
	returns the tag of the geometry object More...

std::vector< std::weak_ptr< const GeometryExtension > >	getExtensions () const

bool	hasExtension (Base::Type type) const

bool	hasExtension (std::string name) const

std::weak_ptr< const GeometryExtension >	getExtension (Base::Type type) const

std::weak_ptr< const GeometryExtension >	getExtension (std::string name) const

std::weak_ptr< GeometryExtension >	getExtension (Base::Type type)

std::weak_ptr< GeometryExtension >	getExtension (std::string name)

void	setExtension (std::unique_ptr< GeometryExtension > &&geo)

void	deleteExtension (Base::Type type)

void	deleteExtension (std::string name)

void	mirror (const Base::Vector3d &point)

void	mirror (const Base::Vector3d &point, const Base::Vector3d &dir)

void	rotate (const Base::Placement &plm)

void	scale (const Base::Vector3d &vec, double scale)

void	transform (const Base::Matrix4D &mat)

void	translate (const Base::Vector3d &vec)

Public Member Functions inherited from Base::Persistence
virtual void	saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
	This method is used to save large amounts of data to a binary file. More...

virtual void	restoreDocFile (Base::Reader &, const Base::String &)
	This method is used to restore large amounts of data from a binary file. More...

virtual bool	mustbeSaved () const
	Return 'true' if this object must always be saved in the file. More...

virtual bool	createSQL (Base::AbstractWriter &, Base::PersistenceVersion &, bool)
	This method is used to save properties or very small amounts of data to an XML document. More...

Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const

template<typename T >
bool	isDerivedFrom () const

bool	isDerivedFrom (const Type type) const

	BaseClass ()
	Construction. More...

virtual	~BaseClass ()
	Destruction. More...

Additional Inherited Members
Static Public Member Functions inherited from Base::Persistence
static std::string	encodeAttribute (const std::string &)

Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)

static void	init (void)

static void *	create (void)

static void	setIfcNameAndID (const std::string &n, int id)

Public Attributes inherited from Base::BaseClass
long	____deadVal = 0xBADEAFFE

Protected Member Functions inherited from Geom::Geometry
void	createNewTag ()
	create a new tag for the geometry object More...

void	assignTag (const Geom::Geometry *)
	copies the tag from the geometry passed as a parameter to this object More...

void	copyNonTag (const Geom::Geometry *)

	Geometry ()

Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char ClassName, const char ParentName, Type::instantiationMethod method=0)

static void	initIfcTypes (const std::string &s, Base::Type classTypeId, int id)

Protected Attributes inherited from Geom::Geometry
boost::uuids::uuid	tag

std::vector< std::shared_ptr< GeometryExtension > >	extensions

Member Enumeration Documentation

◆ Curvature

enum Geom::GeomSurface::Curvature

Enumerator
Maximum
Minimum
Mean
Gaussian

Constructor & Destructor Documentation

◆ GeomSurface()

Geom::GeomSurface::GeomSurface ( )

◆ ~GeomSurface()

virtual Geom::GeomSurface::~GeomSurface ( )

virtual

Member Function Documentation

◆ curvature()

double Geom::GeomSurface::curvature	(	double	u,
		double	v,
		Curvature
	)		const

◆ curvatureDirections()

void Geom::GeomSurface::curvatureDirections	(	double	u,
		double	v,
		gp_Dir &	maxD,
		gp_Dir &	minD
	)		const

◆ isUmbillic()

bool Geom::GeomSurface::isUmbillic	(	double	u,
		double	v
	)		const

◆ normal()

bool Geom::GeomSurface::normal	(	double	u,
		double	v,
		gp_Dir &	dir
	)		const

◆ tangentU()

bool Geom::GeomSurface::tangentU	(	double	u,
		double	v,
		gp_Dir &	dirU
	)		const

◆ tangentV()

bool Geom::GeomSurface::tangentV	(	double	u,
		double	v,
		gp_Dir &	dirV
	)		const

◆ toShape()

TopoDS_Shape Geom::GeomSurface::toShape ( ) const

virtual

Implements Geom::Geometry.

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/Geom/include/Geom/Geometry.h
