#include <Geometry.h>

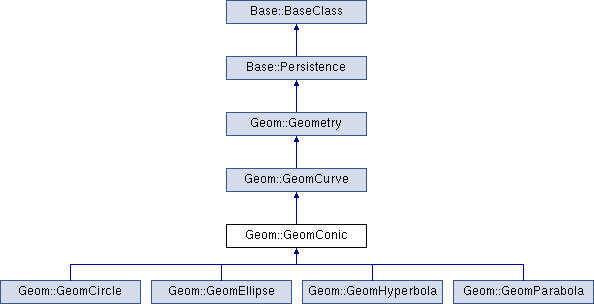

Inheritance diagram for Geom::GeomConic:

Public Member Functions
virtual	~GeomConic ()

virtual Geometry *	copy (void) const =0

Base::Vector3d	getCenter (void) const
	getCenter More...

Base::Vector3d	getLocation (void) const

void	setLocation (const Base::Vector3d &Center)

void	setCenter (const Base::Vector3d &Center)
	setCenter More...

double	getAngleXU (void) const

void	setAngleXU (double angle)

bool	isReversed () const

const	Handle (Geom_Geometry) &handle() const =0

Public Member Functions inherited from Geom::GeomCurve
	GeomCurve ()

virtual	~GeomCurve ()

TopoDS_Shape	toShape () const

GeomBSplineCurve *	toBSpline (double first, double last) const
	toBSpline Converts the curve to a B-spline More...

virtual GeomBSplineCurve *	toNurbs (double first, double last) const

bool	tangent (double u, gp_Dir &) const

bool	tangent (double u, Base::Vector3d &dir) const

Base::Vector3d	pointAtParameter (double u) const

Base::Vector3d	firstDerivativeAtParameter (double u) const

Base::Vector3d	secondDerivativeAtParameter (double u) const

bool	closestParameter (const Base::Vector3d &point, double &u) const

bool	closestParameterToBasisCurve (const Base::Vector3d &point, double &u) const

double	getFirstParameter () const

double	getLastParameter () const

double	curvatureAt (double u) const

double	length (double u, double v) const

bool	normalAt (double u, Base::Vector3d &dir) const

bool	intersect (GeomCurve *c, std::vector< std::pair< Base::Vector3d, Base::Vector3d >> &points, double tol=::Precision::Confusion()) const

void	reverse (void)

Public Member Functions inherited from Geom::Geometry
virtual	~Geometry ()

virtual void	save (Base::AbstractWriter &, Base::PersistenceVersion &) override
	This method is used to save properties or very small amounts of data to an XML document. More...

virtual void	restore (Base::AbstractXMLReader &, Base::PersistenceVersion &) override
	This method is used to restore properties from an XML document. More...

Geometry *	clone (void) const

boost::uuids::uuid	getTag () const
	returns the tag of the geometry object More...

std::vector< std::weak_ptr< const GeometryExtension > >	getExtensions () const

bool	hasExtension (Base::Type type) const

bool	hasExtension (std::string name) const

std::weak_ptr< const GeometryExtension >	getExtension (Base::Type type) const

std::weak_ptr< const GeometryExtension >	getExtension (std::string name) const

std::weak_ptr< GeometryExtension >	getExtension (Base::Type type)

std::weak_ptr< GeometryExtension >	getExtension (std::string name)

void	setExtension (std::unique_ptr< GeometryExtension > &&geo)

void	deleteExtension (Base::Type type)

void	deleteExtension (std::string name)

void	mirror (const Base::Vector3d &point)

void	mirror (const Base::Vector3d &point, const Base::Vector3d &dir)

void	rotate (const Base::Placement &plm)

void	scale (const Base::Vector3d &vec, double scale)

void	transform (const Base::Matrix4D &mat)

void	translate (const Base::Vector3d &vec)

Public Member Functions inherited from Base::Persistence
virtual void	saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
	This method is used to save large amounts of data to a binary file. More...

virtual void	restoreDocFile (Base::Reader &, const Base::String &)
	This method is used to restore large amounts of data from a binary file. More...

virtual bool	mustbeSaved () const
	Return 'true' if this object must always be saved in the file. More...

virtual bool	createSQL (Base::AbstractWriter &, Base::PersistenceVersion &, bool)
	This method is used to save properties or very small amounts of data to an XML document. More...

Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const

template<typename T >
bool	isDerivedFrom () const

bool	isDerivedFrom (const Type type) const

	BaseClass ()
	Construction. More...

virtual	~BaseClass ()
	Destruction. More...

Protected Member Functions
	GeomConic ()

Protected Member Functions inherited from Geom::Geometry
void	createNewTag ()
	create a new tag for the geometry object More...

void	assignTag (const Geom::Geometry *)
	copies the tag from the geometry passed as a parameter to this object More...

void	copyNonTag (const Geom::Geometry *)

	Geometry ()

Additional Inherited Members
Static Public Member Functions inherited from Base::Persistence
static std::string	encodeAttribute (const std::string &)

Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)

static void	init (void)

static void *	create (void)

static void	setIfcNameAndID (const std::string &n, int id)

Public Attributes inherited from Base::BaseClass
long	____deadVal = 0xBADEAFFE

Static Protected Member Functions inherited from Geom::GeomCurve
static bool	intersect (const Handle(Geom_Curve) c, const Handle(Geom_Curve) c2, std::vector< std::pair< Base::Vector3d, Base::Vector3d >> &points, double tol=::Precision::Confusion())

Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char ClassName, const char ParentName, Type::instantiationMethod method=0)

static void	initIfcTypes (const std::string &s, Base::Type classTypeId, int id)

Protected Attributes inherited from Geom::Geometry
boost::uuids::uuid	tag

std::vector< std::shared_ptr< GeometryExtension > >	extensions

Constructor & Destructor Documentation

◆ GeomConic()

Geom::GeomConic::GeomConic ( )

protected

◆ ~GeomConic()

virtual Geom::GeomConic::~GeomConic ( )

virtual

Member Function Documentation

◆ copy()

virtual Geometry* Geom::GeomConic::copy ( void ) const

pure virtual

returns a copy of this object having a new randomly generated tag. If you also want to copy the tag, you may use clone() instead. For creation of geometry with other handles, with or without the same tag, you may use the constructors and the sethandle functions. The tag of a geometry can be copied to another geometry using the assignTag function.

Implements Geom::Geometry.

Implemented in Geom::GeomParabola, Geom::GeomHyperbola, Geom::GeomEllipse, and Geom::GeomCircle.

◆ getAngleXU()

double Geom::GeomConic::getAngleXU ( void ) const

◆ getCenter()

Base::Vector3d Geom::GeomConic::getCenter ( void ) const

getCenter

Deprecated:: use getLocation

◆ getLocation()

Base::Vector3d Geom::GeomConic::getLocation ( void ) const

◆ Handle()

const Geom::GeomConic::Handle ( Geom_Geometry ) const &

pure virtual

Implements Geom::Geometry.

Implemented in Geom::GeomParabola, Geom::GeomHyperbola, Geom::GeomEllipse, and Geom::GeomCircle.

◆ isReversed()

bool Geom::GeomConic::isReversed ( ) const

◆ setAngleXU()

void Geom::GeomConic::setAngleXU ( double angle )

◆ setCenter()

void Geom::GeomConic::setCenter ( const Base::Vector3d & Center )

setCenter

Deprecated:: use setLocation

◆ setLocation()

void Geom::GeomConic::setLocation ( const Base::Vector3d & Center )

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/Geom/include/Geom/Geometry.h
