Geom::GeomBSplineCurve Class Reference

#include <Geometry.h>

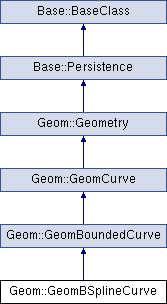

Inheritance diagram for Geom::GeomBSplineCurve:

Public Member Functions
	GeomBSplineCurve ()
	GeomBSplineCurve (const Handle(Geom_BSplineCurve)&)
	GeomBSplineCurve (const std::vector< Base::Vector3d > &poles, const std::vector< double > &weights, const std::vector< double > &knots, const std::vector< int > &multiplicities, int degree, bool periodic=false, bool checkrational=true)
virtual	~GeomBSplineCurve ()
virtual Geometry *	copy (void) const
void	interpolate (const std::vector< gp_Pnt > &, const std::vector< gp_Vec > &)
void	getCardinalSplineTangents (const std::vector< gp_Pnt > &, const std::vector< double > &, std::vector< gp_Vec > &) const
void	getCardinalSplineTangents (const std::vector< gp_Pnt > &, double, std::vector< gp_Vec > &) const
int	countPoles () const
int	countKnots () const
void	setPole (int index, const Base::Vector3d &, double weight=-1)
void	setPoles (const std::vector< Base::Vector3d > &poles, const std::vector< double > &weights)
void	setPoles (const std::vector< Base::Vector3d > &poles)
void	setWeights (const std::vector< double > &weights)
void	setKnot (int index, const double val, int mult=-1)
void	setKnots (const std::vector< double > &knots)
void	setKnots (const std::vector< double > &knots, const std::vector< int > &multiplicities)
std::vector< Base::Vector3d >	getPoles () const
std::vector< double >	getWeights () const
std::vector< double >	getKnots () const
std::vector< int >	getMultiplicities () const
int	getMultiplicity (int index) const
int	getDegree () const
bool	isPeriodic () const
bool	isRational () const
bool	join (const Handle(Geom_BSplineCurve)&)
void	makeC1Continuous (double, double)
std::list< Geometry * >	toBiArcs (double tolerance) const
void	increaseDegree (int degree)
bool	approximate (double tol3d, int maxSegments, int maxDegree, int continuity)
void	increaseMultiplicity (int index, int multiplicity)
bool	removeKnot (int index, int multiplicity, double tolerance=::Precision::PConfusion())
virtual void	save (Base::AbstractWriter &, Base::PersistenceVersion &) override
	This method is used to save properties or very small amounts of data to an XML document. More...
virtual void	restore (Base::AbstractXMLReader &, Base::PersistenceVersion &) override
	This method is used to restore properties from an XML document. More...
void	setHandle (const Handle(Geom_BSplineCurve)&)
const	Handle (Geom_Geometry) &handle() const
Public Member Functions inherited from Geom::GeomBoundedCurve
	GeomBoundedCurve ()
virtual	~GeomBoundedCurve ()
virtual Base::Vector3d	getStartPoint () const
virtual Base::Vector3d	getEndPoint () const
Public Member Functions inherited from Geom::GeomCurve
	GeomCurve ()
virtual	~GeomCurve ()
TopoDS_Shape	toShape () const
GeomBSplineCurve *	toBSpline (double first, double last) const
	toBSpline Converts the curve to a B-spline More...
virtual GeomBSplineCurve *	toNurbs (double first, double last) const
bool	tangent (double u, gp_Dir &) const
bool	tangent (double u, Base::Vector3d &dir) const
Base::Vector3d	pointAtParameter (double u) const
Base::Vector3d	firstDerivativeAtParameter (double u) const
Base::Vector3d	secondDerivativeAtParameter (double u) const
bool	closestParameter (const Base::Vector3d &point, double &u) const
bool	closestParameterToBasisCurve (const Base::Vector3d &point, double &u) const
double	getFirstParameter () const
double	getLastParameter () const
double	curvatureAt (double u) const
double	length (double u, double v) const
bool	normalAt (double u, Base::Vector3d &dir) const
bool	intersect (GeomCurve *c, std::vector< std::pair< Base::Vector3d, Base::Vector3d >> &points, double tol=::Precision::Confusion()) const
void	reverse (void)
Public Member Functions inherited from Geom::Geometry
virtual	~Geometry ()
Geometry *	clone (void) const
boost::uuids::uuid	getTag () const
	returns the tag of the geometry object More...
std::vector< std::weak_ptr< const GeometryExtension > >	getExtensions () const
bool	hasExtension (Base::Type type) const
bool	hasExtension (std::string name) const
std::weak_ptr< const GeometryExtension >	getExtension (Base::Type type) const
std::weak_ptr< const GeometryExtension >	getExtension (std::string name) const
std::weak_ptr< GeometryExtension >	getExtension (Base::Type type)
std::weak_ptr< GeometryExtension >	getExtension (std::string name)
void	setExtension (std::unique_ptr< GeometryExtension > &&geo)
void	deleteExtension (Base::Type type)
void	deleteExtension (std::string name)
void	mirror (const Base::Vector3d &point)
void	mirror (const Base::Vector3d &point, const Base::Vector3d &dir)
void	rotate (const Base::Placement &plm)
void	scale (const Base::Vector3d &vec, double scale)
void	transform (const Base::Matrix4D &mat)
void	translate (const Base::Vector3d &vec)
Public Member Functions inherited from Base::Persistence
virtual void	saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
	This method is used to save large amounts of data to a binary file. More...
virtual void	restoreDocFile (Base::Reader &, const Base::String &)
	This method is used to restore large amounts of data from a binary file. More...
virtual bool	mustbeSaved () const
	Return 'true' if this object must always be saved in the file. More...
virtual bool	createSQL (Base::AbstractWriter &, Base::PersistenceVersion &, bool)
	This method is used to save properties or very small amounts of data to an XML document. More...
Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const
template<typename T >
bool	isDerivedFrom () const
bool	isDerivedFrom (const Type type) const
	BaseClass ()
	Construction. More...
virtual	~BaseClass ()
	Destruction. More...

Additional Inherited Members
Static Public Member Functions inherited from Base::Persistence
static std::string	encodeAttribute (const std::string &)
Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)
static void	init (void)
static void *	create (void)
static void	setIfcNameAndID (const std::string &n, int id)
Public Attributes inherited from Base::BaseClass
long	____deadVal = 0xBADEAFFE
Protected Member Functions inherited from Geom::Geometry
void	createNewTag ()
	create a new tag for the geometry object More...
void	assignTag (const Geom::Geometry *)
	copies the tag from the geometry passed as a parameter to this object More...
void	copyNonTag (const Geom::Geometry *)
	Geometry ()
Static Protected Member Functions inherited from Geom::GeomCurve
static bool	intersect (const Handle(Geom_Curve) c, const Handle(Geom_Curve) c2, std::vector< std::pair< Base::Vector3d, Base::Vector3d >> &points, double tol=::Precision::Confusion())
Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char *ClassName, const char *ParentName, Type::instantiationMethod method=0)
static void	initIfcTypes (const std::string &s, Base::Type classTypeId, int id)
Protected Attributes inherited from Geom::Geometry
boost::uuids::uuid	tag
std::vector< std::shared_ptr< GeometryExtension > >	extensions

Constructor & Destructor Documentation

GeomBSplineCurve() [1/3]

Geom::GeomBSplineCurve::GeomBSplineCurve

(

)

GeomBSplineCurve() [2/3]

Geom::GeomBSplineCurve::GeomBSplineCurve

(

const Handle(Geom_BSplineCurve)&

)

GeomBSplineCurve() [3/3]

Geom::GeomBSplineCurve::GeomBSplineCurve	(	const std::vector< Base::Vector3d > &	poles,
		const std::vector< double > &	weights,
		const std::vector< double > &	knots,
		const std::vector< int > &	multiplicities,
		int	degree,
		bool	periodic = false,
		bool	checkrational = true
	)

~GeomBSplineCurve()

virtual Geom::GeomBSplineCurve::~GeomBSplineCurve ( )

virtual

Member Function Documentation

approximate()

bool Geom::GeomBSplineCurve::approximate	(	double	tol3d,
		int	maxSegments,
		int	maxDegree,
		int	continuity
	)

copy()

virtual Geometry* Geom::GeomBSplineCurve::copy ( void  ) const

virtual

returns a copy of this object having a new randomly generated tag. If you also want to copy the tag, you may use clone() instead. For creation of geometry with other handles, with or without the same tag, you may use the constructors and the sethandle functions. The tag of a geometry can be copied to another geometry using the assignTag function.

Implements Geom::Geometry.

countKnots()

int Geom::GeomBSplineCurve::countKnots

(

)

const

countPoles()

int Geom::GeomBSplineCurve::countPoles

(

)

const

getCardinalSplineTangents() [1/2]

void Geom::GeomBSplineCurve::getCardinalSplineTangents	(	const std::vector< gp_Pnt > &	,
		const std::vector< double > &	,
		std::vector< gp_Vec > &
	)		const

Compute the tangents for a Cardinal spline using the the cubic Hermite spline. It uses the method for Cardinal splines.

getCardinalSplineTangents() [2/2]

void Geom::GeomBSplineCurve::getCardinalSplineTangents	(	const std::vector< gp_Pnt > &	,
		double	,
		std::vector< gp_Vec > &
	)		const

Compute the tangents for a Cardinal spline using the the cubic Hermite spline. It uses the method for Cardinal splines. It uses the same parameter for each tangent.

getDegree()

int Geom::GeomBSplineCurve::getDegree

(

)

const

getKnots()

std::vector<double> Geom::GeomBSplineCurve::getKnots

(

)

const

getMultiplicities()

std::vector<int> Geom::GeomBSplineCurve::getMultiplicities

(

)

const

getMultiplicity()

int Geom::GeomBSplineCurve::getMultiplicity

(

int

index

)

const

getPoles()

std::vector<Base::Vector3d> Geom::GeomBSplineCurve::getPoles

(

)

const

getWeights()

std::vector<double> Geom::GeomBSplineCurve::getWeights

(

)

const

Handle()

const Geom::GeomBSplineCurve::Handle ( Geom_Geometry  ) const &

virtual

Implements Geom::Geometry.

increaseDegree()

void Geom::GeomBSplineCurve::increaseDegree

(

int

degree

)

increaseMultiplicity()

void Geom::GeomBSplineCurve::increaseMultiplicity	(	int	index,
		int	multiplicity
	)

interpolate()

void Geom::GeomBSplineCurve::interpolate	(	const std::vector< gp_Pnt > &	,
		const std::vector< gp_Vec > &
	)

Set the poles and tangents for the cubic Hermite spline

isPeriodic()

bool Geom::GeomBSplineCurve::isPeriodic

(

)

const

isRational()

bool Geom::GeomBSplineCurve::isRational

(

)

const

join()

bool Geom::GeomBSplineCurve::join

(

const Handle(Geom_BSplineCurve)&

)

makeC1Continuous()

void Geom::GeomBSplineCurve::makeC1Continuous	(	double	,
		double
	)

removeKnot()

bool Geom::GeomBSplineCurve::removeKnot	(	int	index,
		int	multiplicity,
		double	tolerance = ::Precision::PConfusion()
	)

restore()

virtual void Geom::GeomBSplineCurve::restore ( Base::AbstractXMLReader &  , Base::PersistenceVersion &    )

overridevirtual

This method is used to restore properties from an XML document.

Reimplemented from Geom::Geometry.

save()

virtual void Geom::GeomBSplineCurve::save ( Base::AbstractWriter &  , Base::PersistenceVersion &    )

overridevirtual

This method is used to save properties or very small amounts of data to an XML document.

Reimplemented from Geom::Geometry.

setHandle()

void Geom::GeomBSplineCurve::setHandle

(

const Handle(Geom_BSplineCurve)&

)

setKnot()

void Geom::GeomBSplineCurve::setKnot	(	int	index,
		const double	val,
		int	mult = -1
	)

setKnots() [1/2]

void Geom::GeomBSplineCurve::setKnots

(

const std::vector< double > &

knots

)

setKnots() [2/2]

void Geom::GeomBSplineCurve::setKnots	(	const std::vector< double > &	knots,
		const std::vector< int > &	multiplicities
	)

setPole()

void Geom::GeomBSplineCurve::setPole	(	int	index,
		const Base::Vector3d &	,
		double	weight = -1
	)

setPoles() [1/2]

void Geom::GeomBSplineCurve::setPoles	(	const std::vector< Base::Vector3d > &	poles,
		const std::vector< double > &	weights
	)

setPoles() [2/2]

void Geom::GeomBSplineCurve::setPoles

(

const std::vector< Base::Vector3d > &

poles

)

setWeights()

void Geom::GeomBSplineCurve::setWeights

(

const std::vector< double > &

weights

)

toBiArcs()

std::list<Geometry*> Geom::GeomBSplineCurve::toBiArcs

(

double

tolerance

)

const

---

The documentation for this class was generated from the following file:

• D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/Geom/include/Geom/Geometry.h
