#include <Geometry.h>

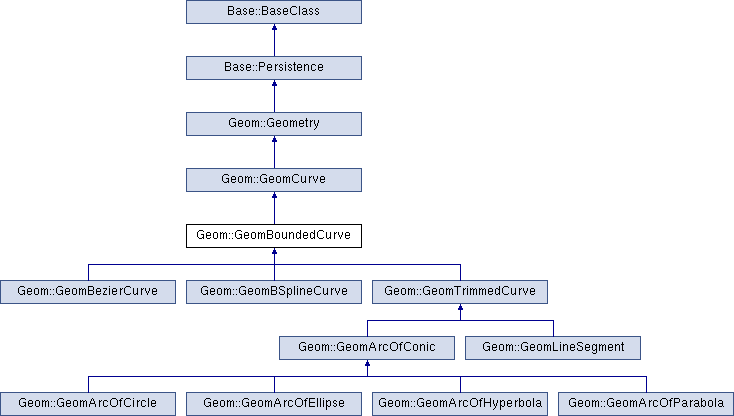

Inheritance diagram for Geom::GeomBoundedCurve:

Public Member Functions
	GeomBoundedCurve ()

virtual	~GeomBoundedCurve ()

virtual Base::Vector3d	getStartPoint () const

virtual Base::Vector3d	getEndPoint () const

Public Member Functions inherited from Geom::GeomCurve
	GeomCurve ()

virtual	~GeomCurve ()

TopoDS_Shape	toShape () const

GeomBSplineCurve *	toBSpline (double first, double last) const
	toBSpline Converts the curve to a B-spline More...

virtual GeomBSplineCurve *	toNurbs (double first, double last) const

bool	tangent (double u, gp_Dir &) const

bool	tangent (double u, Base::Vector3d &dir) const

Base::Vector3d	pointAtParameter (double u) const

Base::Vector3d	firstDerivativeAtParameter (double u) const

Base::Vector3d	secondDerivativeAtParameter (double u) const

bool	closestParameter (const Base::Vector3d &point, double &u) const

bool	closestParameterToBasisCurve (const Base::Vector3d &point, double &u) const

double	getFirstParameter () const

double	getLastParameter () const

double	curvatureAt (double u) const

double	length (double u, double v) const

bool	normalAt (double u, Base::Vector3d &dir) const

bool	intersect (GeomCurve *c, std::vector< std::pair< Base::Vector3d, Base::Vector3d >> &points, double tol=::Precision::Confusion()) const

void	reverse (void)

Public Member Functions inherited from Geom::Geometry
virtual	~Geometry ()

virtual const	Handle (Geom_Geometry) &handle() const =0

virtual void	save (Base::AbstractWriter &, Base::PersistenceVersion &) override
	This method is used to save properties or very small amounts of data to an XML document. More...

virtual void	restore (Base::AbstractXMLReader &, Base::PersistenceVersion &) override
	This method is used to restore properties from an XML document. More...

virtual Geometry *	copy (void) const =0

Geometry *	clone (void) const

boost::uuids::uuid	getTag () const
	returns the tag of the geometry object More...

std::vector< std::weak_ptr< const GeometryExtension > >	getExtensions () const

bool	hasExtension (Base::Type type) const

bool	hasExtension (std::string name) const

std::weak_ptr< const GeometryExtension >	getExtension (Base::Type type) const

std::weak_ptr< const GeometryExtension >	getExtension (std::string name) const

std::weak_ptr< GeometryExtension >	getExtension (Base::Type type)

std::weak_ptr< GeometryExtension >	getExtension (std::string name)

void	setExtension (std::unique_ptr< GeometryExtension > &&geo)

void	deleteExtension (Base::Type type)

void	deleteExtension (std::string name)

void	mirror (const Base::Vector3d &point)

void	mirror (const Base::Vector3d &point, const Base::Vector3d &dir)

void	rotate (const Base::Placement &plm)

void	scale (const Base::Vector3d &vec, double scale)

void	transform (const Base::Matrix4D &mat)

void	translate (const Base::Vector3d &vec)

Public Member Functions inherited from Base::Persistence
virtual void	saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
	This method is used to save large amounts of data to a binary file. More...

virtual void	restoreDocFile (Base::Reader &, const Base::String &)
	This method is used to restore large amounts of data from a binary file. More...

virtual bool	mustbeSaved () const
	Return 'true' if this object must always be saved in the file. More...

virtual bool	createSQL (Base::AbstractWriter &, Base::PersistenceVersion &, bool)
	This method is used to save properties or very small amounts of data to an XML document. More...

Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const

template<typename T >
bool	isDerivedFrom () const

bool	isDerivedFrom (const Type type) const

	BaseClass ()
	Construction. More...

virtual	~BaseClass ()
	Destruction. More...

Additional Inherited Members
Static Public Member Functions inherited from Base::Persistence
static std::string	encodeAttribute (const std::string &)

Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)

static void	init (void)

static void *	create (void)

static void	setIfcNameAndID (const std::string &n, int id)

Public Attributes inherited from Base::BaseClass
long	____deadVal = 0xBADEAFFE

Protected Member Functions inherited from Geom::Geometry
void	createNewTag ()
	create a new tag for the geometry object More...

void	assignTag (const Geom::Geometry *)
	copies the tag from the geometry passed as a parameter to this object More...

void	copyNonTag (const Geom::Geometry *)

	Geometry ()

Static Protected Member Functions inherited from Geom::GeomCurve
static bool	intersect (const Handle(Geom_Curve) c, const Handle(Geom_Curve) c2, std::vector< std::pair< Base::Vector3d, Base::Vector3d >> &points, double tol=::Precision::Confusion())

Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char ClassName, const char ParentName, Type::instantiationMethod method=0)

static void	initIfcTypes (const std::string &s, Base::Type classTypeId, int id)

Protected Attributes inherited from Geom::Geometry
boost::uuids::uuid	tag

std::vector< std::shared_ptr< GeometryExtension > >	extensions

Constructor & Destructor Documentation

◆ GeomBoundedCurve()

Geom::GeomBoundedCurve::GeomBoundedCurve ( )

◆ ~GeomBoundedCurve()

virtual Geom::GeomBoundedCurve::~GeomBoundedCurve ( )

virtual

Member Function Documentation

◆ getEndPoint()

virtual Base::Vector3d Geom::GeomBoundedCurve::getEndPoint ( ) const

virtual

Reimplemented in Geom::GeomLineSegment, and Geom::GeomArcOfConic.

◆ getStartPoint()

virtual Base::Vector3d Geom::GeomBoundedCurve::getStartPoint ( ) const

virtual

Reimplemented in Geom::GeomLineSegment, and Geom::GeomArcOfConic.

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/Geom/include/Geom/Geometry.h
