Topo::Shape Class Reference

#include <Shape.h>

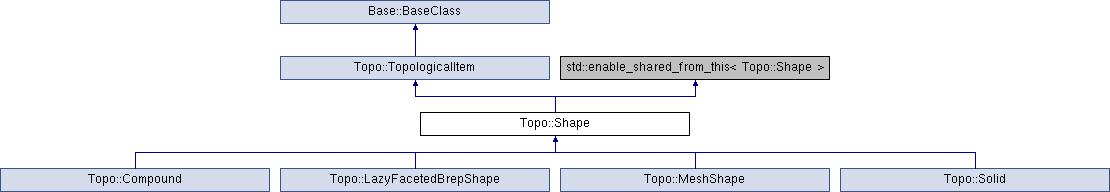

Inheritance diagram for Topo::Shape:

Public Types
enum	CheckShape { CheckShapeIsValidAndThrowException, CheckShapeIsValid, Unchecked }
Public Types inherited from Topo::TopologicalItem
enum	MesherType { MesherType::Default_Mesher, MesherType::Acis_Mesher, MesherType::Compound_Mesher }
enum	ModellingKernel {   ModellingKernel::OCC, ModellingKernel::ACIS, ModellingKernel::CARVE, ModellingKernel::MIXED,   ModellingKernel::UNKNOWN }

Public Member Functions
	Shape (void)
	Shape (pConstShape rhs)
virtual	~Shape (void)
virtual void	transform (const Geom::Trsf &t)
virtual Geom::Trsf	getTransform () const
virtual Topo::ShapeType	getShapeType () const =0
	operator Core::Variant () const
	Variant operator. More...
virtual pConstTopologicalItem	getOwner () const
	Returns top-level owner. Returns this if item is top-level. More...
bool	hasShapeAttributes () const
	Checks if this shape has ShapeAttributes. More...
Topo::ShapeAttributes *	getShapeAttributes () const
	Returns the ShapeAttributes of this shape. More...
void	addShapeAttributes (Topo::ShapeAttributes *atts)
	Adds ShapeAttributes to this shape. If shape already had some attributes they are released. More...
void	releaseShapesAttributes ()
	Deletes the ShapeAttributes associated with this shape. More...
virtual Geom::Bnd_Box	getBoundingBox () const =0
	Get BoundingBox. More...
virtual void	setIndexMesh (pIndexedMesh m)
virtual pIndexedMesh	getIndexedMesh () const
virtual bool	createIndexedMesh (pIndexedMesh m) const
virtual void	setIndexedDrawable (pIndexedDrawable)
virtual pIndexedDrawable	getIndexedDrawable () const
virtual std::shared_ptr< Core::DbgInfo >	getDbgInfo () const
virtual Topo::Shape *	clone (bool deepcopy) const =0
virtual bool	getGeometricInformation (Topo::GeometricInformation &) const
virtual bool	wasCreatedWithProblems () const
virtual void	setWasCreatedWithProblems (bool)
Public Member Functions inherited from Topo::TopologicalItem
	TopologicalItem ()
virtual	~TopologicalItem (void)
virtual Topo::TopologicalItem::MesherType	getMesherType () const =0
virtual Topo::TopologicalItem::ModellingKernel	getModellingKernel () const =0
virtual Topo::ShapeTool *	getShapeTool () const =0
virtual ENTITY *	getEntity () const
Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const
template<typename T >
bool	isDerivedFrom () const
bool	isDerivedFrom (const Type type) const
	BaseClass ()
	Construction. More...
virtual	~BaseClass ()
	Destruction. More...

Public Attributes
std::set< Core::DocObject * >	m_appGeometryBackLinks
Public Attributes inherited from Base::BaseClass
long	____deadVal = 0xBADEAFFE

Protected Member Functions
	Shape (ENTITY *ent)
virtual void	copyFrom (pConstShape rhs, bool deepCopy=true)=0
virtual bool	isSingleFace () const
virtual bool	isSingleWire () const
virtual bool	isSingleEdge () const
virtual bool	isSingleVertex () const
virtual bool	isSolid () const
virtual bool	isClosedSolid () const
virtual bool	isWire () const
virtual bool	isCompound () const
virtual bool	isMesh () const
bool	_copy (const Topo::Shape *rhs, bool deepCopy=true)
Protected Member Functions inherited from Topo::TopologicalItem
	TopologicalItem (ENTITY *)

Friends
class	ShapeTool
class	FaceTool

Additional Inherited Members
Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)
static void	init (void)
static void *	create (void)
static void	setIfcNameAndID (const std::string &n, int id)
Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char *ClassName, const char *ParentName, Type::instantiationMethod method=0)
static void	initIfcTypes (const std::string &s, Base::Type classTypeId, int id)
Protected Attributes inherited from Topo::TopologicalItem
pConstTopologicalItem	source

Member Enumeration Documentation

CheckShape

enum Topo::Shape::CheckShape

Enumerator
CheckShapeIsValidAndThrowException
CheckShapeIsValid
Unchecked

Constructor & Destructor Documentation

Shape() [1/3]

Topo::Shape::Shape

(

void

)

Shape() [2/3]

Topo::Shape::Shape

(

pConstShape

rhs

)

~Shape()

virtual Topo::Shape::~Shape ( void  )

virtual

Shape() [3/3]

Topo::Shape::Shape ( ENTITY *  ent )

protected

Member Function Documentation

_copy()

bool Topo::Shape::_copy ( const Topo::Shape *  rhs, bool  deepCopy = true  )

protected

addShapeAttributes()

void Topo::Shape::addShapeAttributes

(

Topo::ShapeAttributes *

atts

)

Adds ShapeAttributes to this shape. If shape already had some attributes they are released.

clone()

virtual Topo::Shape* Topo::Shape::clone ( bool  deepcopy ) const

pure virtual

copyFrom()

virtual void Topo::Shape::copyFrom ( pConstShape  rhs, bool  deepCopy = true  )

protectedpure virtual

createIndexedMesh()

virtual bool Topo::Shape::createIndexedMesh ( pIndexedMesh  m ) const

virtual

getBoundingBox()

virtual Geom::Bnd_Box Topo::Shape::getBoundingBox ( ) const

pure virtual

Get BoundingBox.

Implemented in Topo::MeshShape.

getDbgInfo()

virtual std::shared_ptr<Core::DbgInfo> Topo::Shape::getDbgInfo ( ) const

virtual

getGeometricInformation()

virtual bool Topo::Shape::getGeometricInformation ( Topo::GeometricInformation &  ) const

inlinevirtual

Implements Topo::TopologicalItem.

Reimplemented in Topo::Solid, Topo::Compound, and Topo::MeshShape.

getIndexedDrawable()

virtual pIndexedDrawable Topo::Shape::getIndexedDrawable ( ) const

virtual

getIndexedMesh()

virtual pIndexedMesh Topo::Shape::getIndexedMesh ( ) const

virtual

getOwner()

virtual pConstTopologicalItem Topo::Shape::getOwner ( ) const

virtual

Returns top-level owner. Returns this if item is top-level.

Implements Topo::TopologicalItem.

getShapeAttributes()

Topo::ShapeAttributes* Topo::Shape::getShapeAttributes

(

)

const

Returns the ShapeAttributes of this shape.

getShapeType()

virtual Topo::ShapeType Topo::Shape::getShapeType ( ) const

pure virtual

getTransform()

virtual Geom::Trsf Topo::Shape::getTransform ( ) const

virtual

hasShapeAttributes()

bool Topo::Shape::hasShapeAttributes

(

)

const

Checks if this shape has ShapeAttributes.

isClosedSolid()

virtual bool Topo::Shape::isClosedSolid ( ) const

protectedvirtual

isCompound()

virtual bool Topo::Shape::isCompound ( ) const

protectedvirtual

isMesh()

virtual bool Topo::Shape::isMesh ( ) const

inlineprotectedvirtual

isSingleEdge()

virtual bool Topo::Shape::isSingleEdge ( ) const

protectedvirtual

isSingleFace()

virtual bool Topo::Shape::isSingleFace ( ) const

protectedvirtual

isSingleVertex()

virtual bool Topo::Shape::isSingleVertex ( ) const

protectedvirtual

isSingleWire()

virtual bool Topo::Shape::isSingleWire ( ) const

protectedvirtual

isSolid()

virtual bool Topo::Shape::isSolid ( ) const

protectedvirtual

isWire()

virtual bool Topo::Shape::isWire ( ) const

protectedvirtual

operator Core::Variant()

Topo::Shape::operator Core::Variant

(

)

const

Variant operator.

releaseShapesAttributes()

void Topo::Shape::releaseShapesAttributes

(

)

Deletes the ShapeAttributes associated with this shape.

setIndexedDrawable()

virtual void Topo::Shape::setIndexedDrawable ( pIndexedDrawable  )

virtual

setIndexMesh()

virtual void Topo::Shape::setIndexMesh ( pIndexedMesh  m )

virtual

setWasCreatedWithProblems()

virtual void Topo::Shape::setWasCreatedWithProblems ( bool  )

inlinevirtual

transform()

virtual void Topo::Shape::transform ( const Geom::Trsf &  t )

virtual

Reimplemented in Topo::Compound.

wasCreatedWithProblems()

virtual bool Topo::Shape::wasCreatedWithProblems ( ) const

inlinevirtual

Friends And Related Function Documentation

FaceTool

friend class FaceTool

friend

ShapeTool

friend class ShapeTool

friend

Member Data Documentation

m_appGeometryBackLinks

std::set<Core::DocObject*> Topo::Shape::m_appGeometryBackLinks

mutable

---

The documentation for this class was generated from the following file:

• D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/Topo/include/Topo/Shape.h
