#include <Shape.h>

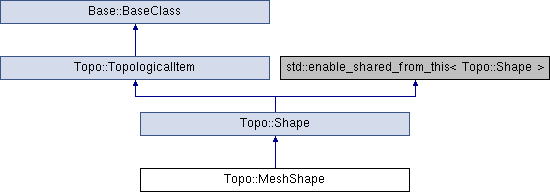

Inheritance diagram for Topo::MeshShape:

Public Types
typedef std::vector< int >	MeshModel

typedef std::vector< MeshModel >	SubMeshModels

Public Types inherited from Topo::Shape
enum	CheckShape { CheckShapeIsValidAndThrowException, CheckShapeIsValid, Unchecked }

Public Types inherited from Topo::TopologicalItem
enum	MesherType { MesherType::Default_Mesher, MesherType::Acis_Mesher, MesherType::Compound_Mesher }

enum	ModellingKernel { ModellingKernel::OCC, ModellingKernel::ACIS, ModellingKernel::CARVE, ModellingKernel::MIXED, ModellingKernel::UNKNOWN }

Public Member Functions
	MeshShape (void)

	MeshShape (pConstMesh rhs, bool deepCopy=true)

virtual	~MeshShape (void)

virtual void	copyFrom (pConstMesh rhs, bool deepCopy=true)=0

virtual Geom::Bnd_Box	getBoundingBox () const =0
	Calculates (if needed) and returns the BoundingBox of the mesh. More...

virtual pConstBrepData	getMeshAsBrepData () const =0
	Returns the mesh as BrepData. More...

virtual void	getTextureCoordinates (std::vector< Geom::Pnt2d > &textureCoordinates, std::vector< int > &textureIndices) const =0

virtual bool	calculateDetail (CA_Detail &detail, const CA_Snap &theSnap)=0

virtual void	getEdges (std::vector< std::pair< Geom::Pnt, Geom::Pnt > > &lines) const =0

virtual void	getPoints (std::vector< Geom::Pnt > &points) const =0

virtual void	getModel (Topo::MeshShape::MeshModel &model) const =0

virtual std::vector< Geom::Pnt >	getNormals () const =0

virtual void	getOuterBoundaries (std::vector< Geom::Pnt > &points, std::vector< int > &edges) const =0

virtual void	getFacePoints (int index, std::vector< Geom::Pnt > &points) const =0

virtual bool	getGeometricInformation (Topo::GeometricInformation &) const

Public Member Functions inherited from Topo::Shape
	Shape (void)

	Shape (pConstShape rhs)

virtual	~Shape (void)

virtual void	transform (const Geom::Trsf &t)

virtual Geom::Trsf	getTransform () const

virtual Topo::ShapeType	getShapeType () const =0

	operator Core::Variant () const
	Variant operator. More...

virtual pConstTopologicalItem	getOwner () const
	Returns top-level owner. Returns this if item is top-level. More...

bool	hasShapeAttributes () const
	Checks if this shape has ShapeAttributes. More...

Topo::ShapeAttributes *	getShapeAttributes () const
	Returns the ShapeAttributes of this shape. More...

void	addShapeAttributes (Topo::ShapeAttributes *atts)
	Adds ShapeAttributes to this shape. If shape already had some attributes they are released. More...

void	releaseShapesAttributes ()
	Deletes the ShapeAttributes associated with this shape. More...

virtual void	setIndexMesh (pIndexedMesh m)

virtual pIndexedMesh	getIndexedMesh () const

virtual bool	createIndexedMesh (pIndexedMesh m) const

virtual void	setIndexedDrawable (pIndexedDrawable)

virtual pIndexedDrawable	getIndexedDrawable () const

virtual std::shared_ptr< Core::DbgInfo >	getDbgInfo () const

virtual Topo::Shape *	clone (bool deepcopy) const =0

virtual bool	wasCreatedWithProblems () const

virtual void	setWasCreatedWithProblems (bool)

Public Member Functions inherited from Topo::TopologicalItem
	TopologicalItem ()

virtual	~TopologicalItem (void)

virtual Topo::TopologicalItem::MesherType	getMesherType () const =0

virtual Topo::TopologicalItem::ModellingKernel	getModellingKernel () const =0

virtual Topo::ShapeTool *	getShapeTool () const =0

virtual ENTITY *	getEntity () const

Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const

template<typename T >
bool	isDerivedFrom () const

bool	isDerivedFrom (const Type type) const

	BaseClass ()
	Construction. More...

virtual	~BaseClass ()
	Destruction. More...

Protected Member Functions
virtual Topo::MeshTool *	getMeshTool () const =0

Protected Member Functions inherited from Topo::Shape
	Shape (ENTITY *ent)

virtual bool	isSingleFace () const

virtual bool	isSingleWire () const

virtual bool	isSingleEdge () const

virtual bool	isSingleVertex () const

virtual bool	isSolid () const

virtual bool	isClosedSolid () const

virtual bool	isWire () const

virtual bool	isCompound () const

virtual bool	isMesh () const

bool	_copy (const Topo::Shape *rhs, bool deepCopy=true)

Protected Member Functions inherited from Topo::TopologicalItem
	TopologicalItem (ENTITY *)

Friends
class	MeshTool

Additional Inherited Members
Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)

static void	init (void)

static void *	create (void)

static void	setIfcNameAndID (const std::string &n, int id)

Public Attributes inherited from Topo::Shape
std::set< Core::DocObject * >	m_appGeometryBackLinks

Public Attributes inherited from Base::BaseClass
long	____deadVal = 0xBADEAFFE

Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char ClassName, const char ParentName, Type::instantiationMethod method=0)

static void	initIfcTypes (const std::string &s, Base::Type classTypeId, int id)

Protected Attributes inherited from Topo::TopologicalItem
pConstTopologicalItem	source

Member Typedef Documentation

◆ MeshModel

typedef std::vector<int> Topo::MeshShape::MeshModel

◆ SubMeshModels

typedef std::vector<MeshModel> Topo::MeshShape::SubMeshModels

Constructor & Destructor Documentation

◆ MeshShape() [1/2]

Topo::MeshShape::MeshShape ( void )

◆ MeshShape() [2/2]

Topo::MeshShape::MeshShape	(	pConstMesh	rhs,
		bool	deepCopy = `true`
	)

◆ ~MeshShape()

virtual Topo::MeshShape::~MeshShape ( void )

virtual

Member Function Documentation

◆ calculateDetail()

virtual bool Topo::MeshShape::calculateDetail	(	CA_Detail &	detail,
		const CA_Snap &	theSnap
	)

pure virtual

◆ copyFrom()

virtual void Topo::MeshShape::copyFrom	(	pConstMesh	rhs,
		bool	deepCopy = `true`
	)

pure virtual

◆ getBoundingBox()

virtual Geom::Bnd_Box Topo::MeshShape::getBoundingBox ( ) const

pure virtual

Calculates (if needed) and returns the BoundingBox of the mesh.

Implements Topo::Shape.

◆ getEdges()

virtual void Topo::MeshShape::getEdges ( std::vector< std::pair< Geom::Pnt, Geom::Pnt > > & lines ) const

pure virtual

◆ getFacePoints()

virtual void Topo::MeshShape::getFacePoints	(	int	index,
		std::vector< Geom::Pnt > &	points
	)		const

pure virtual

◆ getGeometricInformation()

virtual bool Topo::MeshShape::getGeometricInformation ( Topo::GeometricInformation & ) const

inlinevirtual

Reimplemented from Topo::Shape.

◆ getMeshAsBrepData()

virtual pConstBrepData Topo::MeshShape::getMeshAsBrepData ( ) const

pure virtual

Returns the mesh as BrepData.

◆ getMeshTool()

virtual Topo::MeshTool* Topo::MeshShape::getMeshTool ( ) const

protectedpure virtual

◆ getModel()

virtual void Topo::MeshShape::getModel ( Topo::MeshShape::MeshModel & model ) const

pure virtual

◆ getNormals()

virtual std::vector<Geom::Pnt> Topo::MeshShape::getNormals ( ) const

pure virtual

◆ getOuterBoundaries()

virtual void Topo::MeshShape::getOuterBoundaries	(	std::vector< Geom::Pnt > &	points,
		std::vector< int > &	edges
	)		const

pure virtual

◆ getPoints()

virtual void Topo::MeshShape::getPoints ( std::vector< Geom::Pnt > & points ) const

pure virtual

◆ getTextureCoordinates()

virtual void Topo::MeshShape::getTextureCoordinates	(	std::vector< Geom::Pnt2d > &	textureCoordinates,
		std::vector< int > &	textureIndices
	)		const

pure virtual

Friends And Related Function Documentation

◆ MeshTool

friend class MeshTool

friend

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/Topo/include/Topo/Shape.h
