OpenLxApp::OpeningStandardCase Class Reference
Building Elements

The standard opening, OpeningStandardCase, defines an opening with certain constraints for the dimension parameters, position within the voided element, and with certain constraints for the geometric representation. The OpeningStandardCase handles all cases of openings, that: More...

#include <OpeningStandardCase.h>

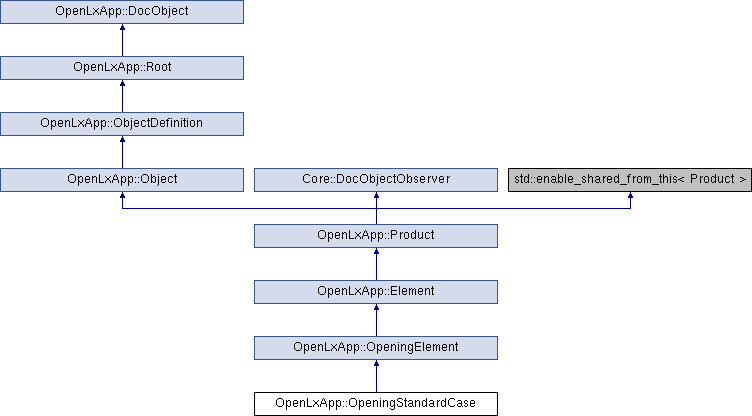

Inheritance diagram for OpenLxApp::OpeningStandardCase:
OpenLxApp::OpeningElement OpenLxApp::Element OpenLxApp::Product OpenLxApp::Object Core::DocObjectObserver OpenLxApp::ObjectDefinition OpenLxApp::Root OpenLxApp::DocObject

Public Member Functions

virtual ~OpeningStandardCase (void)

virtual bool setGeometry (std::shared_ptr< Geometry > geo) override

- Public Member Functions inherited from OpenLxApp::OpeningElement
void setPredefinedType (OpeningElementTypeEnum aType)

OpeningElementTypeEnum getPredefinedType () const

void addFilling (std::shared_ptr< Element > aFilling)

std::vector< std::shared_ptr< Element > > getFillings () const

void removeFilling (std::shared_ptr< Element > aFilling)

void removeFillings ()

std::shared_ptr< Element > getVoidedElement () const

virtual ~OpeningElement (void)

- Public Member Functions inherited from OpenLxApp::Element
virtual ~Element ()=default

void setPlacementRelativeTo (std::shared_ptr< Element > other)

void setPlacementRelativeTo (std::shared_ptr< Element > other, bool keepGlobalPosition)

std::shared_ptr< Element > getPlacementRelativeTo () const

bool setLayer (int layernumber)

int getLayer () const

void addOpeningElement (std::shared_ptr< OpeningElement > aOpening)

void removeOpeningElement (std::shared_ptr< OpeningElement > aOpening)

void removeOpeningElements ()

std::vector< std::shared_ptr< OpeningElement > > getOpeningElements () const

void addParamCutHardElement (std::shared_ptr< Element > aElement)

void addParamCutSoftElement (std::shared_ptr< Element > aElement)

void removeParamCutHardElement (std::shared_ptr< Element > aElement)

void removeParamCutSoftElement (std::shared_ptr< Element > aElement)

std::vector< std::shared_ptr< Element > > getParamCutHardElements (bool includeAggregatedElements=false) const

std::vector< std::shared_ptr< Element > > getParamCutSoftElements () const

bool isParamCutHardElement () const

bool isParamCutSoftElement () const

void addSubElement (std::shared_ptr< SubElement > aSubElement)

std::vector< std::shared_ptr< SubElement > > getSubElements () const

void removeSubElement (std::shared_ptr< SubElement > aSubElement)

void removeSubElements ()

std::shared_ptr< OpeningElement > getFilledOpeningElement () const

void setAssociatedMaterial (std::shared_ptr< MaterialDefinition > aMaterialDefinition)

void removeAssociatedMaterial ()

std::shared_ptr< MaterialSelect > getAssociatedMaterial () const

bool isTemporary () const

void setTemporary (bool on)

std::shared_ptr< Group > getGroup () const

std::shared_ptr< Element > copy () const

Topo::Cdwk_SAT_Attributes get_Cdwk_SAT_Attributes () const

Base::String getTag () const

void setTag (const Base::String &aTag)

void setCdwkAttributeData (const CdwkAttributeData &aData)

std::string getCadworkGroup () const

void setBoundingBoxEnabled (bool enabled)

std::shared_ptr< OpenLxApp::Geometry > getAxisRepresentation () const

bool setAxisRepresentation (std::shared_ptr< OpenLxApp::Geometry > aGeometry) const

std::shared_ptr< OpenLxApp::Geometry > getSolidModelRepresentation () const

bool setSolidModelRepresentation (std::shared_ptr< OpenLxApp::Geometry > aGeometry) const

void showAxisRepresentation () const

void showSolidModelRepresentation () const

- Public Member Functions inherited from OpenLxApp::Product
virtual ~Product (void)

std::shared_ptr< Geometry > getGeometry () const

Geom::Trsf getGeometryToWorldTransform () const

Geom::Bnd_Box getBoundingBox () const

Geom::Ax2 getLocalPlacement () const

void setLocalPlacement (const Geom::Ax2 &pos)

Geom::Trsf getTransform () const

Geom::Trsf getLocalToWorldTransform () const

void setTransform (const Geom::Trsf &t)

void translate (const Geom::Vec &aVec, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)

void rotate (const Geom::Ax1 &axis, double angle, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)

bool getLocalAxes (Geom::Ax2 &localAxes)

void setLocalAxes (const Geom::Dir &zHeight, const Geom::Dir &xLength)

pConstShape getShape () const

pConstShape getLocalShape () const

void setOglMaterial (const Draw::OglMaterial &mat, int faceIndex=-1)

Draw::OglMaterial getOglMaterial () const

void setAmbientColor (const Base::Color &aCol)

void setDiffuseColor (const Base::Color &aCol)

void setSpecularColor (const Base::Color &aCol)

void setEmissiveColor (const Base::Color &aCol)

void setReflectiveColor (const Base::Color &aCol)

void setShininess (int aVal)

void setTransparency (int aVal)

void setDrawStyle (const Draw::DrawStyle &ds)

Draw::DrawStyle getDrawStyle () const

void setLineWidth (float width)

void setTexture (const Draw::Texture2 &tex, int faceIndex=-1)

void setLengthAndCrossTexture (const Draw::Texture2 &lengthTexture, const Draw::Texture2 &crossTexture, const Draw::Texture2Transform &lengthTextureTrsf=Draw::Texture2Transform(), const Draw::Texture2Transform &crossTextureTrsf=Draw::Texture2Transform())

std::shared_ptr< SpatialStructureElement > getSpatialStructure () const

void setSpatialStructure (std::shared_ptr< SpatialStructureElement > aSpatialStructureElement)

void setPositionNb (long value)

long getPositionNb () const

bool isVisible () const

void setVisible (bool onoff)

bool registerPythonClass (const std::string &aClassName, const std::string &aParentClassName)

virtual Base::GlobalId getGlobalClassId () const

std::shared_ptr< PropertyInteger > registerPropertyInteger (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyEnum > registerPropertyEnum (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyDouble > registerPropertyDouble (const std::string &aName, double aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyButton > registerPropertyButton (const std::string &aName, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyBool > registerPropertyBool (const std::string &aName, bool aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyString > registerPropertyString (const std::string &aName, Base::String aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyColor > registerPropertyColor (const std::string &aName, Base::Color aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< OpenLxApp::Property > getProperty (const std::string &aName) const

std::map< std::string, std::shared_ptr< Property > > getPropertyMap () const

std::shared_ptr< PropertyInteger > getPropertyInteger (const std::string &aName) const

std::shared_ptr< PropertyEnum > getPropertyEnum (const std::string &aName) const

std::shared_ptr< PropertyDouble > getPropertyDouble (const std::string &aName) const

std::shared_ptr< PropertyButton > getPropertyButton (const std::string &aName) const

std::shared_ptr< PropertyBool > getPropertyBool (const std::string &aName) const

std::shared_ptr< PropertyString > getPropertyString (const std::string &aName) const

std::shared_ptr< PropertyColor > getPropertyColor (const std::string &aName) const

bool isRegisteredProperty (const std::string &aName) const

virtual void onPropertyChanged (const std::string &aPropertyName)

virtual void onScaling (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)

virtual void translateAfterScaled (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)

void setStandardManipulatorPolicy (const Core::StandardManipulatorPolicy &aPolicy)

void setPropertyHeader (const Base::String &aDefaultName, int aTranslationId)

void setPropertyHeader (const Base::String &aDefaultName)

void setPropertyGroupName (const Base::String &aDefaultName, int aTranslationId)

void setPropertyGroupName (const Base::String &aDefaultName)

Base::String getPropertyHeader () const

Base::String getPropertyGroupName () const

std::shared_ptr< PropertyUser > getPropertyUser (const std::string &aName) const

std::vector< std::shared_ptr< PropertyUser > > getPropertyUser () const

std::vector< Base::String > getPropertySetNames () const

std::shared_ptr< PropertySet > getPropertySetByName (const Base::String &aName) const

ExternalPythonTypeObject * getExternalPythonTypeObject () const

void setExternalPythonTypeObject (ExternalPythonTypeObject *aObj)

void removeExternalTypeObject ()

- Public Member Functions inherited from OpenLxApp::Object
virtual ~Object (void)

- Public Member Functions inherited from OpenLxApp::ObjectDefinition
virtual ~ObjectDefinition (void)

std::vector< std::shared_ptr< ObjectDefinition > > getDecompositionObjects () const

std::vector< std::shared_ptr< ObjectDefinition > > getAllDecompositionObjects () const

std::shared_ptr< ObjectDefinition > getDecomposedObject () const

std::vector< std::shared_ptr< ObjectDefinition > > getAllDecomposedObjects () const

void addAggregationObject (std::shared_ptr< ObjectDefinition > aObject)

void addAggregationObjects (const std::vector< std::shared_ptr< ObjectDefinition >> &aObjects)

void removeAggregationObject (std::shared_ptr< ObjectDefinition > aObject)

void removeAggregationObjects ()

std::vector< std::shared_ptr< ObjectDefinition > > getAggregationObjects () const

std::vector< std::shared_ptr< ObjectDefinition > > getAllAggregationObjects () const

std::shared_ptr< ObjectDefinition > getAggregatedObject () const

std::vector< std::shared_ptr< ObjectDefinition > > getAllAggregatedObjects () const

void addAssociationObject (std::shared_ptr< Root > aObject)

std::vector< std::shared_ptr< Root > > getAssociationObjects () const

std::shared_ptr< LxIfcBase::LxIfcProperty > getIfcPropertySets () const

- Public Member Functions inherited from OpenLxApp::Root
void setUserName (const Base::String &aName)

Base::String getUserName () const

virtual ~Root (void)

Base::GlobalId getGlobalId () const

bool setGlobalId (const Base::GlobalId &aGlobalId)

- Public Member Functions inherited from OpenLxApp::DocObject
std::shared_ptr< Document > getDocument () const

bool isNew () const

bool isUpdated () const

bool isValid () const

bool hasErrors () const

void touch ()

LxIfc4::LxIfc4EntityEnum getEntityType () const

std::string getEntityTypeAsString () const

std::shared_ptr< Core::DbgInfo > getDbgInfo () const

 DocObject (Core::DocObject *aObject)

virtual ~DocObject (void)

Core::DocObject * __getObj__ () const

- Public Member Functions inherited from Core::DocObjectObserver
virtual ~DocObjectObserver ()


Protected Member Functions

 OpeningStandardCase ()

- Protected Member Functions inherited from OpenLxApp::OpeningElement
 OpeningElement ()

- Protected Member Functions inherited from OpenLxApp::Element
 Element ()=default

void _copySubElems (App::Element *fromElem, std::shared_ptr< Element > toElem) const

- Protected Member Functions inherited from OpenLxApp::Product
void onChange (Core::DocObject *aCaller, const Core::DocObjectObserverMsg &aReason) override

 Product ()

- Protected Member Functions inherited from OpenLxApp::Object
 Object ()

- Protected Member Functions inherited from OpenLxApp::ObjectDefinition
 ObjectDefinition ()

- Protected Member Functions inherited from OpenLxApp::Root
 Root ()

- Protected Member Functions inherited from OpenLxApp::DocObject
 DocObject ()


Additional Inherited Members

- Public Types inherited from OpenLxApp::OpeningElement
enum  OpeningElementTypeEnum { OpeningElementTypeEnum::OPENING, OpeningElementTypeEnum::RECESS, OpeningElementTypeEnum::USERDEFINED, OpeningElementTypeEnum::NOTDEFINED }

- Protected Attributes inherited from OpenLxApp::DocObject
Core::DocObject * _coreObj = nullptr


Detailed Description

The standard opening, OpeningStandardCase, defines an opening with certain constraints for the dimension parameters, position within the voided element, and with certain constraints for the geometric representation. The OpeningStandardCase handles all cases of openings, that:

  • are true openings by cutting through the body of the voided element, that is, where the opening depth is greater than or equal to the thickness of the element,
  • are extruded perpendicular to the wall plane in case of openings in a wall
  • are extruded perpendicular to the slab plane in case of openings in a slab
  • have a local placement relative to the local placement of the voided element
  • have a 'Body' shape representation with 'SweptSolid' representation type
  • have only a single extrusion body within the 'Body' shape representation

(Definition from ISO/CD 16739:2011)

See also
Documentation from IFC4: IfcOpeningStandardCase

Constructor & Destructor Documentation

◆ ~OpeningStandardCase()

virtual OpenLxApp::OpeningStandardCase::~OpeningStandardCase ( void  )
virtual

◆ OpeningStandardCase()

OpenLxApp::OpeningStandardCase::OpeningStandardCase ( )
inlineprotected

Member Function Documentation

◆ setGeometry()

virtual bool OpenLxApp::OpeningStandardCase::setGeometry ( std::shared_ptr< Geometry >  geo)
overridevirtual

Reimplemented from OpenLxApp::Product.

The documentation for this class was generated from the following file:
