OpenLxApp::Element Class Reference

An element is a generalization of all components that make up an AEC product. Those elements can be logically contained by a spatial structure element that constitutes a certain level within a project structure hierarchy (site, building, storey or space). More...

#include <Element.h>

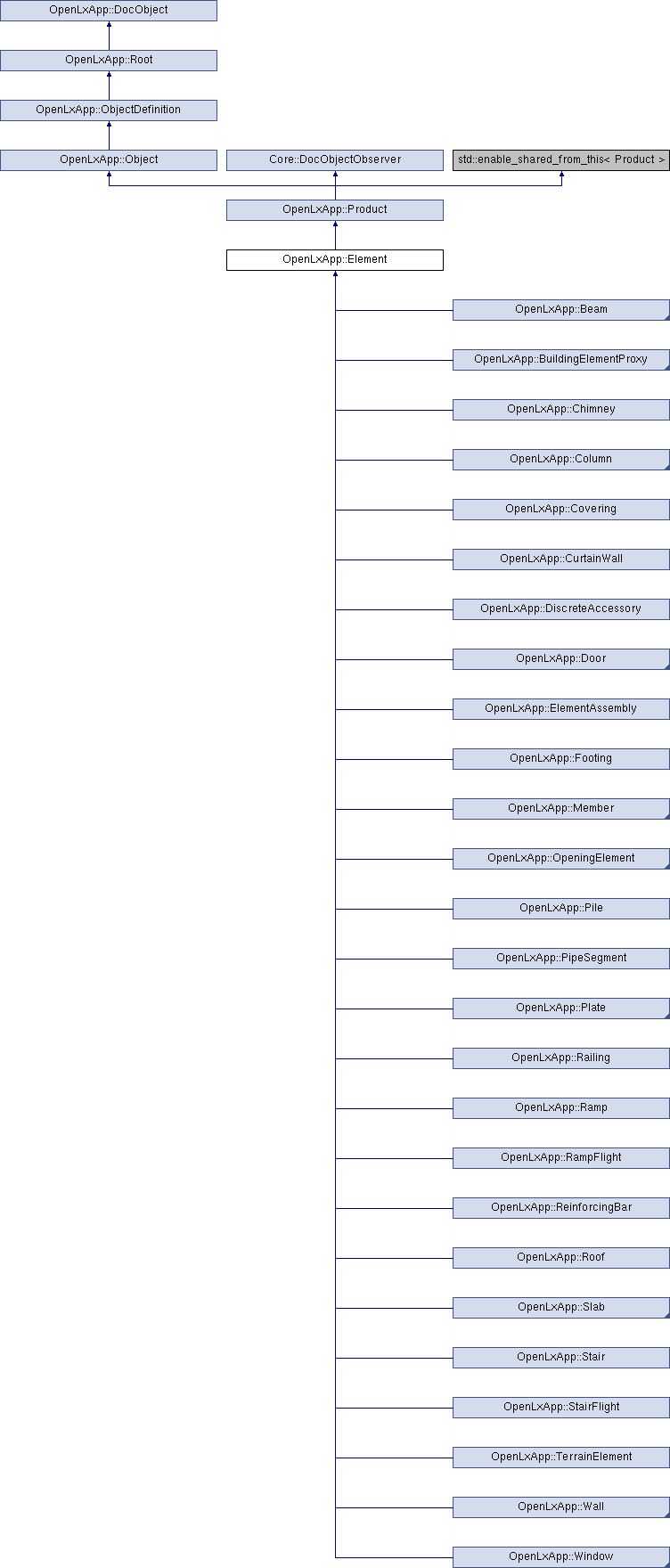

Inheritance diagram for OpenLxApp::Element:

Public Member Functions
virtual	~Element ()=default
Placement
void	setPlacementRelativeTo (std::shared_ptr< Element > other)
void	setPlacementRelativeTo (std::shared_ptr< Element > other, bool keepGlobalPosition)
std::shared_ptr< Element >	getPlacementRelativeTo () const
Layer
bool	setLayer (int layernumber)
int	getLayer () const
Openings
void	addOpeningElement (std::shared_ptr< OpeningElement > aOpening)
void	removeOpeningElement (std::shared_ptr< OpeningElement > aOpening)
void	removeOpeningElements ()
std::vector< std::shared_ptr< OpeningElement > >	getOpeningElements () const
Parametric Cuts
void	addParamCutHardElement (std::shared_ptr< Element > aElement)
void	addParamCutSoftElement (std::shared_ptr< Element > aElement)
void	removeParamCutHardElement (std::shared_ptr< Element > aElement)
void	removeParamCutSoftElement (std::shared_ptr< Element > aElement)
std::vector< std::shared_ptr< Element > >	getParamCutHardElements (bool includeAggregatedElements=false) const
std::vector< std::shared_ptr< Element > >	getParamCutSoftElements () const
bool	isParamCutHardElement () const
bool	isParamCutSoftElement () const
SubElements
void	addSubElement (std::shared_ptr< SubElement > aSubElement)
std::vector< std::shared_ptr< SubElement > >	getSubElements () const
void	removeSubElement (std::shared_ptr< SubElement > aSubElement)
void	removeSubElements ()
Fillings
std::shared_ptr< OpeningElement >	getFilledOpeningElement () const
Material
void	setAssociatedMaterial (std::shared_ptr< MaterialDefinition > aMaterialDefinition)
void	removeAssociatedMaterial ()
std::shared_ptr< MaterialSelect >	getAssociatedMaterial () const
Misc
bool	isTemporary () const
void	setTemporary (bool on)
std::shared_ptr< Group >	getGroup () const
std::shared_ptr< Element >	copy () const
Topo::Cdwk_SAT_Attributes	get_Cdwk_SAT_Attributes () const
Base::String	getTag () const
void	setTag (const Base::String &aTag)
void	setCdwkAttributeData (const CdwkAttributeData &aData)
std::string	getCadworkGroup () const
void	setBoundingBoxEnabled (bool enabled)
std::shared_ptr< OpenLxApp::Geometry >	getAxisRepresentation () const
bool	setAxisRepresentation (std::shared_ptr< OpenLxApp::Geometry > aGeometry) const
std::shared_ptr< OpenLxApp::Geometry >	getSolidModelRepresentation () const
bool	setSolidModelRepresentation (std::shared_ptr< OpenLxApp::Geometry > aGeometry) const
void	showAxisRepresentation () const
void	showSolidModelRepresentation () const
Public Member Functions inherited from OpenLxApp::Product
virtual	~Product (void)
virtual bool	setGeometry (std::shared_ptr< Geometry > geo)
std::shared_ptr< Geometry >	getGeometry () const
Geom::Trsf	getGeometryToWorldTransform () const
Geom::Bnd_Box	getBoundingBox () const
Geom::Ax2	getLocalPlacement () const
void	setLocalPlacement (const Geom::Ax2 &pos)
Geom::Trsf	getTransform () const
Geom::Trsf	getLocalToWorldTransform () const
void	setTransform (const Geom::Trsf &t)
void	translate (const Geom::Vec &aVec, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)
void	rotate (const Geom::Ax1 &axis, double angle, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)
bool	getLocalAxes (Geom::Ax2 &localAxes)
void	setLocalAxes (const Geom::Dir &zHeight, const Geom::Dir &xLength)
pConstShape	getShape () const
pConstShape	getLocalShape () const
void	setOglMaterial (const Draw::OglMaterial &mat, int faceIndex=-1)
Draw::OglMaterial	getOglMaterial () const
void	setAmbientColor (const Base::Color &aCol)
void	setDiffuseColor (const Base::Color &aCol)
void	setSpecularColor (const Base::Color &aCol)
void	setEmissiveColor (const Base::Color &aCol)
void	setReflectiveColor (const Base::Color &aCol)
void	setShininess (int aVal)
void	setTransparency (int aVal)
void	setDrawStyle (const Draw::DrawStyle &ds)
Draw::DrawStyle	getDrawStyle () const
void	setLineWidth (float width)
void	setTexture (const Draw::Texture2 &tex, int faceIndex=-1)
void	setLengthAndCrossTexture (const Draw::Texture2 &lengthTexture, const Draw::Texture2 &crossTexture, const Draw::Texture2Transform &lengthTextureTrsf=Draw::Texture2Transform(), const Draw::Texture2Transform &crossTextureTrsf=Draw::Texture2Transform())
std::shared_ptr< SpatialStructureElement >	getSpatialStructure () const
void	setSpatialStructure (std::shared_ptr< SpatialStructureElement > aSpatialStructureElement)
void	setPositionNb (long value)
long	getPositionNb () const
bool	isVisible () const
void	setVisible (bool onoff)
bool	registerPythonClass (const std::string &aClassName, const std::string &aParentClassName)
virtual Base::GlobalId	getGlobalClassId () const
std::shared_ptr< PropertyInteger >	registerPropertyInteger (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)
std::shared_ptr< PropertyEnum >	registerPropertyEnum (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)
std::shared_ptr< PropertyDouble >	registerPropertyDouble (const std::string &aName, double aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)
std::shared_ptr< PropertyButton >	registerPropertyButton (const std::string &aName, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)
std::shared_ptr< PropertyBool >	registerPropertyBool (const std::string &aName, bool aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)
std::shared_ptr< PropertyString >	registerPropertyString (const std::string &aName, Base::String aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)
std::shared_ptr< PropertyColor >	registerPropertyColor (const std::string &aName, Base::Color aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)
std::shared_ptr< OpenLxApp::Property >	getProperty (const std::string &aName) const
std::map< std::string, std::shared_ptr< Property > >	getPropertyMap () const
std::shared_ptr< PropertyInteger >	getPropertyInteger (const std::string &aName) const
std::shared_ptr< PropertyEnum >	getPropertyEnum (const std::string &aName) const
std::shared_ptr< PropertyDouble >	getPropertyDouble (const std::string &aName) const
std::shared_ptr< PropertyButton >	getPropertyButton (const std::string &aName) const
std::shared_ptr< PropertyBool >	getPropertyBool (const std::string &aName) const
std::shared_ptr< PropertyString >	getPropertyString (const std::string &aName) const
std::shared_ptr< PropertyColor >	getPropertyColor (const std::string &aName) const
bool	isRegisteredProperty (const std::string &aName) const
virtual void	onPropertyChanged (const std::string &aPropertyName)
virtual void	onScaling (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)
virtual void	translateAfterScaled (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)
void	setStandardManipulatorPolicy (const Core::StandardManipulatorPolicy &aPolicy)
void	setPropertyHeader (const Base::String &aDefaultName, int aTranslationId)
void	setPropertyHeader (const Base::String &aDefaultName)
void	setPropertyGroupName (const Base::String &aDefaultName, int aTranslationId)
void	setPropertyGroupName (const Base::String &aDefaultName)
Base::String	getPropertyHeader () const
Base::String	getPropertyGroupName () const
std::shared_ptr< PropertyUser >	getPropertyUser (const std::string &aName) const
std::vector< std::shared_ptr< PropertyUser > >	getPropertyUser () const
std::vector< Base::String >	getPropertySetNames () const
std::shared_ptr< PropertySet >	getPropertySetByName (const Base::String &aName) const
ExternalPythonTypeObject *	getExternalPythonTypeObject () const
void	setExternalPythonTypeObject (ExternalPythonTypeObject *aObj)
void	removeExternalTypeObject ()
Public Member Functions inherited from OpenLxApp::Object
virtual	~Object (void)
Public Member Functions inherited from OpenLxApp::ObjectDefinition
virtual	~ObjectDefinition (void)
std::vector< std::shared_ptr< ObjectDefinition > >	getDecompositionObjects () const
std::vector< std::shared_ptr< ObjectDefinition > >	getAllDecompositionObjects () const
std::shared_ptr< ObjectDefinition >	getDecomposedObject () const
std::vector< std::shared_ptr< ObjectDefinition > >	getAllDecomposedObjects () const
void	addAggregationObject (std::shared_ptr< ObjectDefinition > aObject)
void	addAggregationObjects (const std::vector< std::shared_ptr< ObjectDefinition >> &aObjects)
void	removeAggregationObject (std::shared_ptr< ObjectDefinition > aObject)
void	removeAggregationObjects ()
std::vector< std::shared_ptr< ObjectDefinition > >	getAggregationObjects () const
std::vector< std::shared_ptr< ObjectDefinition > >	getAllAggregationObjects () const
std::shared_ptr< ObjectDefinition >	getAggregatedObject () const
std::vector< std::shared_ptr< ObjectDefinition > >	getAllAggregatedObjects () const
void	addAssociationObject (std::shared_ptr< Root > aObject)
std::vector< std::shared_ptr< Root > >	getAssociationObjects () const
std::shared_ptr< LxIfcBase::LxIfcProperty >	getIfcPropertySets () const
Public Member Functions inherited from OpenLxApp::Root
void	setUserName (const Base::String &aName)
Base::String	getUserName () const
virtual	~Root (void)
Base::GlobalId	getGlobalId () const
bool	setGlobalId (const Base::GlobalId &aGlobalId)
Public Member Functions inherited from OpenLxApp::DocObject
std::shared_ptr< Document >	getDocument () const
bool	isNew () const
bool	isUpdated () const
bool	isValid () const
bool	hasErrors () const
void	touch ()
LxIfc4::LxIfc4EntityEnum	getEntityType () const
std::string	getEntityTypeAsString () const
std::shared_ptr< Core::DbgInfo >	getDbgInfo () const
	DocObject (Core::DocObject *aObject)
virtual	~DocObject (void)
Core::DocObject *	__getObj__ () const
Public Member Functions inherited from Core::DocObjectObserver
virtual	~DocObjectObserver ()

Protected Member Functions
	Element ()=default
void	_copySubElems (App::Element *fromElem, std::shared_ptr< Element > toElem) const
Protected Member Functions inherited from OpenLxApp::Product
void	onChange (Core::DocObject *aCaller, const Core::DocObjectObserverMsg &aReason) override
	Product ()
Protected Member Functions inherited from OpenLxApp::Object
	Object ()
Protected Member Functions inherited from OpenLxApp::ObjectDefinition
	ObjectDefinition ()
Protected Member Functions inherited from OpenLxApp::Root
	Root ()
Protected Member Functions inherited from OpenLxApp::DocObject
	DocObject ()

Additional Inherited Members
Protected Attributes inherited from OpenLxApp::DocObject
Core::DocObject *	_coreObj = nullptr

Detailed Description

An element is a generalization of all components that make up an AEC product. Those elements can be logically contained by a spatial structure element that constitutes a certain level within a project structure hierarchy (site, building, storey or space).

Constructor & Destructor Documentation

~Element()

virtual OpenLxApp::Element::~Element ( )

virtualdefault

Element()

OpenLxApp::Element::Element ( )

protecteddefault

Member Function Documentation

_copySubElems()

void OpenLxApp::Element::_copySubElems ( App::Element *  fromElem, std::shared_ptr< Element >  toElem  ) const

protected

addOpeningElement()

void OpenLxApp::Element::addOpeningElement

(

std::shared_ptr< OpeningElement >

aOpening

)

addParamCutHardElement()

void OpenLxApp::Element::addParamCutHardElement

(

std::shared_ptr< Element >

aElement

)

addParamCutSoftElement()

void OpenLxApp::Element::addParamCutSoftElement

(

std::shared_ptr< Element >

aElement

)

addSubElement()

void OpenLxApp::Element::addSubElement

(

std::shared_ptr< SubElement >

aSubElement

)

copy()

std::shared_ptr<Element> OpenLxApp::Element::copy

(

)

const

get_Cdwk_SAT_Attributes()

Topo::Cdwk_SAT_Attributes OpenLxApp::Element::get_Cdwk_SAT_Attributes

(

)

const

getAssociatedMaterial()

std::shared_ptr<MaterialSelect> OpenLxApp::Element::getAssociatedMaterial

(

)

const

getAxisRepresentation()

std::shared_ptr<OpenLxApp::Geometry> OpenLxApp::Element::getAxisRepresentation

(

)

const

@desc Interface to allow "switching" between Axis and SolidModel Representations

getCadworkGroup()

std::string OpenLxApp::Element::getCadworkGroup

(

)

const

getFilledOpeningElement()

std::shared_ptr<OpeningElement> OpenLxApp::Element::getFilledOpeningElement

(

)

const

getGroup()

std::shared_ptr<Group> OpenLxApp::Element::getGroup

(

)

const

getLayer()

int OpenLxApp::Element::getLayer

(

)

const

getOpeningElements()

std::vector<std::shared_ptr<OpeningElement> > OpenLxApp::Element::getOpeningElements

(

)

const

getParamCutHardElements()

std::vector<std::shared_ptr<Element> > OpenLxApp::Element::getParamCutHardElements

(

bool

includeAggregatedElements = false

)

const

getParamCutSoftElements()

std::vector<std::shared_ptr<Element> > OpenLxApp::Element::getParamCutSoftElements

(

)

const

getPlacementRelativeTo()

std::shared_ptr<Element> OpenLxApp::Element::getPlacementRelativeTo

(

)

const

getSolidModelRepresentation()

std::shared_ptr<OpenLxApp::Geometry> OpenLxApp::Element::getSolidModelRepresentation

(

)

const

getSubElements()

std::vector<std::shared_ptr<SubElement> > OpenLxApp::Element::getSubElements

(

)

const

getTag()

Base::String OpenLxApp::Element::getTag

(

)

const

isParamCutHardElement()

bool OpenLxApp::Element::isParamCutHardElement

(

)

const

isParamCutSoftElement()

bool OpenLxApp::Element::isParamCutSoftElement

(

)

const

isTemporary()

bool OpenLxApp::Element::isTemporary

(

)

const

removeAssociatedMaterial()

void OpenLxApp::Element::removeAssociatedMaterial

(

)

removeOpeningElement()

void OpenLxApp::Element::removeOpeningElement

(

std::shared_ptr< OpeningElement >

aOpening

)

removeOpeningElements()

void OpenLxApp::Element::removeOpeningElements

(

)

removeParamCutHardElement()

void OpenLxApp::Element::removeParamCutHardElement

(

std::shared_ptr< Element >

aElement

)

removeParamCutSoftElement()

void OpenLxApp::Element::removeParamCutSoftElement

(

std::shared_ptr< Element >

aElement

)

removeSubElement()

void OpenLxApp::Element::removeSubElement

(

std::shared_ptr< SubElement >

aSubElement

)

removeSubElements()

void OpenLxApp::Element::removeSubElements

(

)

setAssociatedMaterial()

void OpenLxApp::Element::setAssociatedMaterial

(

std::shared_ptr< MaterialDefinition >

aMaterialDefinition

)

setAxisRepresentation()

bool OpenLxApp::Element::setAxisRepresentation

(

std::shared_ptr< OpenLxApp::Geometry >

aGeometry

)

const

setBoundingBoxEnabled()

void OpenLxApp::Element::setBoundingBoxEnabled

(

bool

enabled

)

setCdwkAttributeData()

void OpenLxApp::Element::setCdwkAttributeData

(

const CdwkAttributeData &

aData

)

setLayer()

bool OpenLxApp::Element::setLayer

(

int

layernumber

)

setPlacementRelativeTo() [1/2]

void OpenLxApp::Element::setPlacementRelativeTo

(

std::shared_ptr< Element >

other

)

setPlacementRelativeTo() [2/2]

void OpenLxApp::Element::setPlacementRelativeTo	(	std::shared_ptr< Element >	other,
		bool	keepGlobalPosition
	)

setSolidModelRepresentation()

bool OpenLxApp::Element::setSolidModelRepresentation

(

std::shared_ptr< OpenLxApp::Geometry >

aGeometry

)

const

setTag()

void OpenLxApp::Element::setTag

(

const Base::String &

aTag

)

setTemporary()

void OpenLxApp::Element::setTemporary

(

bool

on

)

showAxisRepresentation()

void OpenLxApp::Element::showAxisRepresentation

(

)

const

showSolidModelRepresentation()

void OpenLxApp::Element::showSolidModelRepresentation

(

)

const

---

The documentation for this class was generated from the following file:

• D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/OpenLxApp/include/OpenLxApp/Element.h
