The IfcElementAssembly represents complex element assemblies aggregated from several elements, such as discrete elements, building elements, or other elements. More...

#include <ElementAssembly.h>

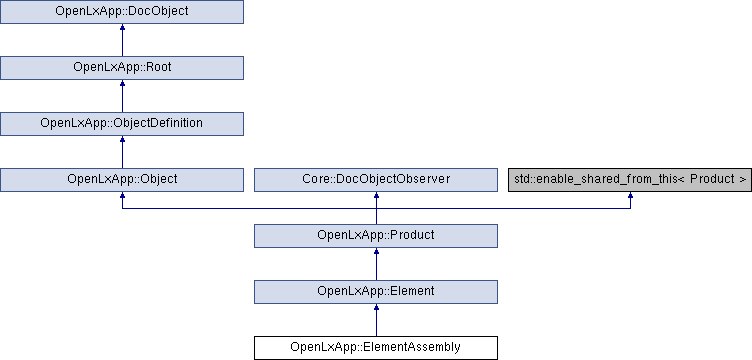

Inheritance diagram for OpenLxApp::ElementAssembly:

Public Types
enum	ElementAssemblyTypeEnum { ElementAssemblyTypeEnum::ACCESSORY_ASSEMBLY, ElementAssemblyTypeEnum::ARCH, ElementAssemblyTypeEnum::BEAM_GRID, ElementAssemblyTypeEnum::BRACED_FRAME, ElementAssemblyTypeEnum::GIRDER, ElementAssemblyTypeEnum::REINFORCEMENT_UNIT, ElementAssemblyTypeEnum::RIGID_FRAME, ElementAssemblyTypeEnum::SLAB_FIELD, ElementAssemblyTypeEnum::TRUSS, ElementAssemblyTypeEnum::USERDEFINED, ElementAssemblyTypeEnum::NOTDEFINED }

Public Member Functions
void	setPredefinedType (ElementAssemblyTypeEnum aType)

ElementAssemblyTypeEnum	getPredefinedType () const

void	addToAssembly (std::shared_ptr< Element > aElement)

void	removeFromAssembly (std::shared_ptr< Element > aElement)

std::vector< std::shared_ptr< Element > >	getAssembledElements () const

virtual	~ElementAssembly (void)

Public Member Functions inherited from OpenLxApp::Element
virtual	~Element ()=default

void	setPlacementRelativeTo (std::shared_ptr< Element > other)

void	setPlacementRelativeTo (std::shared_ptr< Element > other, bool keepGlobalPosition)

std::shared_ptr< Element >	getPlacementRelativeTo () const

bool	setLayer (int layernumber)

int	getLayer () const

void	addOpeningElement (std::shared_ptr< OpeningElement > aOpening)

void	removeOpeningElement (std::shared_ptr< OpeningElement > aOpening)

void	removeOpeningElements ()

std::vector< std::shared_ptr< OpeningElement > >	getOpeningElements () const

void	addParamCutHardElement (std::shared_ptr< Element > aElement)

void	addParamCutSoftElement (std::shared_ptr< Element > aElement)

void	removeParamCutHardElement (std::shared_ptr< Element > aElement)

void	removeParamCutSoftElement (std::shared_ptr< Element > aElement)

std::vector< std::shared_ptr< Element > >	getParamCutHardElements (bool includeAggregatedElements=false) const

std::vector< std::shared_ptr< Element > >	getParamCutSoftElements () const

bool	isParamCutHardElement () const

bool	isParamCutSoftElement () const

void	addSubElement (std::shared_ptr< SubElement > aSubElement)

std::vector< std::shared_ptr< SubElement > >	getSubElements () const

void	removeSubElement (std::shared_ptr< SubElement > aSubElement)

void	removeSubElements ()

std::shared_ptr< OpeningElement >	getFilledOpeningElement () const

void	setAssociatedMaterial (std::shared_ptr< MaterialDefinition > aMaterialDefinition)

void	removeAssociatedMaterial ()

std::shared_ptr< MaterialSelect >	getAssociatedMaterial () const

bool	isTemporary () const

void	setTemporary (bool on)

std::shared_ptr< Group >	getGroup () const

std::shared_ptr< Element >	copy () const

Topo::Cdwk_SAT_Attributes	get_Cdwk_SAT_Attributes () const

Base::String	getTag () const

void	setTag (const Base::String &aTag)

void	setCdwkAttributeData (const CdwkAttributeData &aData)

std::string	getCadworkGroup () const

void	setBoundingBoxEnabled (bool enabled)

std::shared_ptr< OpenLxApp::Geometry >	getAxisRepresentation () const

bool	setAxisRepresentation (std::shared_ptr< OpenLxApp::Geometry > aGeometry) const

std::shared_ptr< OpenLxApp::Geometry >	getSolidModelRepresentation () const

bool	setSolidModelRepresentation (std::shared_ptr< OpenLxApp::Geometry > aGeometry) const

void	showAxisRepresentation () const

void	showSolidModelRepresentation () const

Public Member Functions inherited from OpenLxApp::Product
virtual	~Product (void)

virtual bool	setGeometry (std::shared_ptr< Geometry > geo)

std::shared_ptr< Geometry >	getGeometry () const

Geom::Trsf	getGeometryToWorldTransform () const

Geom::Bnd_Box	getBoundingBox () const

Geom::Ax2	getLocalPlacement () const

void	setLocalPlacement (const Geom::Ax2 &pos)

Geom::Trsf	getTransform () const

Geom::Trsf	getLocalToWorldTransform () const

void	setTransform (const Geom::Trsf &t)

void	translate (const Geom::Vec &aVec, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)

void	rotate (const Geom::Ax1 &axis, double angle, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)

bool	getLocalAxes (Geom::Ax2 &localAxes)

void	setLocalAxes (const Geom::Dir &zHeight, const Geom::Dir &xLength)

pConstShape	getShape () const

pConstShape	getLocalShape () const

void	setOglMaterial (const Draw::OglMaterial &mat, int faceIndex=-1)

Draw::OglMaterial	getOglMaterial () const

void	setAmbientColor (const Base::Color &aCol)

void	setDiffuseColor (const Base::Color &aCol)

void	setSpecularColor (const Base::Color &aCol)

void	setEmissiveColor (const Base::Color &aCol)

void	setReflectiveColor (const Base::Color &aCol)

void	setShininess (int aVal)

void	setTransparency (int aVal)

void	setDrawStyle (const Draw::DrawStyle &ds)

Draw::DrawStyle	getDrawStyle () const

void	setLineWidth (float width)

void	setTexture (const Draw::Texture2 &tex, int faceIndex=-1)

void	setLengthAndCrossTexture (const Draw::Texture2 &lengthTexture, const Draw::Texture2 &crossTexture, const Draw::Texture2Transform &lengthTextureTrsf=Draw::Texture2Transform(), const Draw::Texture2Transform &crossTextureTrsf=Draw::Texture2Transform())

std::shared_ptr< SpatialStructureElement >	getSpatialStructure () const

void	setSpatialStructure (std::shared_ptr< SpatialStructureElement > aSpatialStructureElement)

void	setPositionNb (long value)

long	getPositionNb () const

bool	isVisible () const

void	setVisible (bool onoff)

bool	registerPythonClass (const std::string &aClassName, const std::string &aParentClassName)

virtual Base::GlobalId	getGlobalClassId () const

std::shared_ptr< PropertyInteger >	registerPropertyInteger (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyEnum >	registerPropertyEnum (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyDouble >	registerPropertyDouble (const std::string &aName, double aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyButton >	registerPropertyButton (const std::string &aName, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyBool >	registerPropertyBool (const std::string &aName, bool aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyString >	registerPropertyString (const std::string &aName, Base::String aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyColor >	registerPropertyColor (const std::string &aName, Base::Color aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< OpenLxApp::Property >	getProperty (const std::string &aName) const

std::map< std::string, std::shared_ptr< Property > >	getPropertyMap () const

std::shared_ptr< PropertyInteger >	getPropertyInteger (const std::string &aName) const

std::shared_ptr< PropertyEnum >	getPropertyEnum (const std::string &aName) const

std::shared_ptr< PropertyDouble >	getPropertyDouble (const std::string &aName) const

std::shared_ptr< PropertyButton >	getPropertyButton (const std::string &aName) const

std::shared_ptr< PropertyBool >	getPropertyBool (const std::string &aName) const

std::shared_ptr< PropertyString >	getPropertyString (const std::string &aName) const

std::shared_ptr< PropertyColor >	getPropertyColor (const std::string &aName) const

bool	isRegisteredProperty (const std::string &aName) const

virtual void	onPropertyChanged (const std::string &aPropertyName)

virtual void	onScaling (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)

virtual void	translateAfterScaled (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)

void	setStandardManipulatorPolicy (const Core::StandardManipulatorPolicy &aPolicy)

void	setPropertyHeader (const Base::String &aDefaultName, int aTranslationId)

void	setPropertyHeader (const Base::String &aDefaultName)

void	setPropertyGroupName (const Base::String &aDefaultName, int aTranslationId)

void	setPropertyGroupName (const Base::String &aDefaultName)

Base::String	getPropertyHeader () const

Base::String	getPropertyGroupName () const

std::shared_ptr< PropertyUser >	getPropertyUser (const std::string &aName) const

std::vector< std::shared_ptr< PropertyUser > >	getPropertyUser () const

std::vector< Base::String >	getPropertySetNames () const

std::shared_ptr< PropertySet >	getPropertySetByName (const Base::String &aName) const

ExternalPythonTypeObject *	getExternalPythonTypeObject () const

void	setExternalPythonTypeObject (ExternalPythonTypeObject *aObj)

void	removeExternalTypeObject ()

Public Member Functions inherited from OpenLxApp::Object
virtual	~Object (void)

Public Member Functions inherited from OpenLxApp::ObjectDefinition
virtual	~ObjectDefinition (void)

std::vector< std::shared_ptr< ObjectDefinition > >	getDecompositionObjects () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllDecompositionObjects () const

std::shared_ptr< ObjectDefinition >	getDecomposedObject () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllDecomposedObjects () const

void	addAggregationObject (std::shared_ptr< ObjectDefinition > aObject)

void	addAggregationObjects (const std::vector< std::shared_ptr< ObjectDefinition >> &aObjects)

void	removeAggregationObject (std::shared_ptr< ObjectDefinition > aObject)

void	removeAggregationObjects ()

std::vector< std::shared_ptr< ObjectDefinition > >	getAggregationObjects () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllAggregationObjects () const

std::shared_ptr< ObjectDefinition >	getAggregatedObject () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllAggregatedObjects () const

void	addAssociationObject (std::shared_ptr< Root > aObject)

std::vector< std::shared_ptr< Root > >	getAssociationObjects () const

std::shared_ptr< LxIfcBase::LxIfcProperty >	getIfcPropertySets () const

Public Member Functions inherited from OpenLxApp::Root
void	setUserName (const Base::String &aName)

Base::String	getUserName () const

virtual	~Root (void)

Base::GlobalId	getGlobalId () const

bool	setGlobalId (const Base::GlobalId &aGlobalId)

Public Member Functions inherited from OpenLxApp::DocObject
std::shared_ptr< Document >	getDocument () const

bool	isNew () const

bool	isUpdated () const

bool	isValid () const

bool	hasErrors () const

void	touch ()

LxIfc4::LxIfc4EntityEnum	getEntityType () const

std::string	getEntityTypeAsString () const

std::shared_ptr< Core::DbgInfo >	getDbgInfo () const

	DocObject (Core::DocObject *aObject)

virtual	~DocObject (void)

Core::DocObject *	__getObj__ () const

Public Member Functions inherited from Core::DocObjectObserver
virtual	~DocObjectObserver ()

Protected Member Functions
	ElementAssembly ()

Protected Member Functions inherited from OpenLxApp::Element
	Element ()=default

void	_copySubElems (App::Element *fromElem, std::shared_ptr< Element > toElem) const

Protected Member Functions inherited from OpenLxApp::Product
void	onChange (Core::DocObject *aCaller, const Core::DocObjectObserverMsg &aReason) override

	Product ()

Protected Member Functions inherited from OpenLxApp::Object
	Object ()

Protected Member Functions inherited from OpenLxApp::ObjectDefinition
	ObjectDefinition ()

Protected Member Functions inherited from OpenLxApp::Root
	Root ()

Protected Member Functions inherited from OpenLxApp::DocObject
	DocObject ()

Additional Inherited Members
Protected Attributes inherited from OpenLxApp::DocObject
Core::DocObject *	_coreObj = nullptr

Detailed Description

The IfcElementAssembly represents complex element assemblies aggregated from several elements, such as discrete elements, building elements, or other elements.

EXAMPLE: Steel construction assemblies, such as trusses and different kinds of frames, can be represented by the IfcElementAssembly entity. Other examples include slab fields aggregated from a number of precast concrete slabs or reinforcement units made from several reinforcement bars. Also bathroom units, staircase sections and other premanufactured or precast elements are examples of the general IfcElementAssembly entity

NOTE: The IfcElementAssembly is a general purpose entity that is required to be decomposed. Also other subtypes of Element can be decomposed, with some dedicated entities such as WallElementedCase and SlabElementedCase. The assembly structure can be nested, i.e. an ElementAssembly could be an aggregated part within another ElementAssembly.

NOTE View definitions and/or implementer agreements may restrict the number of allowed levels of nesting. The geometry of an ElementAssembly is generally formed from its components, in which case it does not need to have an explicit geometric representation. In some cases it may be useful to also expose an own explicit representation of the aggregate.

NOTE: View definitions or implementer agreements may further constrain the applicability of certain shape representations at the ElementAssembly in respect of the shape representations of its parts.

Member Enumeration Documentation

◆ ElementAssemblyTypeEnum

enum OpenLxApp::ElementAssembly::ElementAssemblyTypeEnum

strong

Enumerator
ACCESSORY_ASSEMBLY
ARCH
BEAM_GRID
BRACED_FRAME
GIRDER
REINFORCEMENT_UNIT
RIGID_FRAME
SLAB_FIELD
TRUSS
USERDEFINED
NOTDEFINED

Constructor & Destructor Documentation

◆ ~ElementAssembly()

virtual OpenLxApp::ElementAssembly::~ElementAssembly ( void )

virtual

◆ ElementAssembly()

OpenLxApp::ElementAssembly::ElementAssembly ( )

inlineprotected

Member Function Documentation

◆ addToAssembly()

void OpenLxApp::ElementAssembly::addToAssembly ( std::shared_ptr< Element > aElement )

◆ getAssembledElements()

std::vector<std::shared_ptr<Element> > OpenLxApp::ElementAssembly::getAssembledElements ( ) const

◆ getPredefinedType()

ElementAssemblyTypeEnum OpenLxApp::ElementAssembly::getPredefinedType ( ) const

◆ removeFromAssembly()

void OpenLxApp::ElementAssembly::removeFromAssembly ( std::shared_ptr< Element > aElement )

◆ setPredefinedType()

void OpenLxApp::ElementAssembly::setPredefinedType ( ElementAssemblyTypeEnum aType )

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/OpenLxApp/include/OpenLxApp/ElementAssembly.h

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members
