The BuildingElementProxy is a proxy definition that provides the same functionality as subtypes of BuildingElement, but without having a predefined meaning of the special type of building element, it represents. Proxies can also be used as spatial place holders or provisions, that are later replaced by special types of elements. One use of the proxy object is a provision for voids, i.e. where a particular volume of space is requested by an engineering function that might later be accepted or rejected. If accepted it is transformed into a void within a building element, like a wall opening, or a slab opening. The provision for voids is exchanged as an BuildingElementProxy with the PredefinedType = ProvisionForVoid. Such proxy shall have a swept solid geometry, where the profile of the swept solid lies on/near the surface of the referred building element and the extrusion depths is equal to or bigger then (in case of round or otherwise irregular element shape) the thickness of the building element. The appropriate property set should be attached. In addition to the provision for voids, the building element proxy can also represent a provision for space, often the necessary space allocation for mechanical equipment that will be determined in a later design phase. The provision for space is exchanged as an IfcBuildingElementProxy with the PredefinedType = ProvisionForSpace. More...

#include <BuildingElementProxy.h>

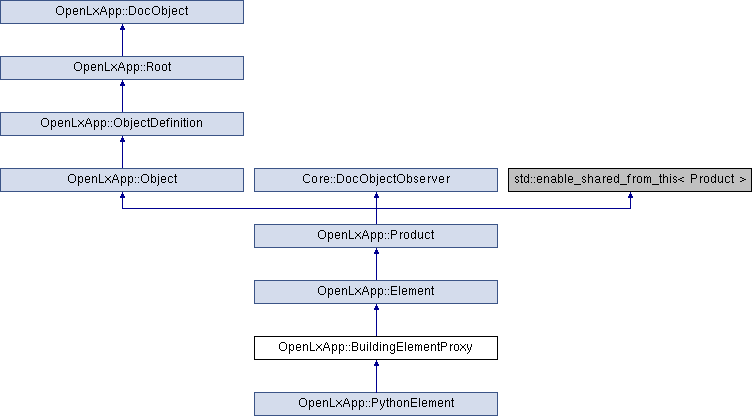

Inheritance diagram for OpenLxApp::BuildingElementProxy:

Public Types
enum	BuildingElementProxyTypeEnum { BuildingElementProxyTypeEnum::COMPLEX, BuildingElementProxyTypeEnum::ELEMENT, BuildingElementProxyTypeEnum::PARTIAL, BuildingElementProxyTypeEnum::PROVISIONFORVOID, BuildingElementProxyTypeEnum::USERDEFINED, BuildingElementProxyTypeEnum::NOTDEFINED }

Public Member Functions
void	setPredefinedType (BuildingElementProxyTypeEnum aType)

BuildingElementProxyTypeEnum	getPredefinedType () const

virtual	~BuildingElementProxy (void)

Public Member Functions inherited from OpenLxApp::Element
virtual	~Element ()=default

void	setPlacementRelativeTo (std::shared_ptr< Element > other)

void	setPlacementRelativeTo (std::shared_ptr< Element > other, bool keepGlobalPosition)

std::shared_ptr< Element >	getPlacementRelativeTo () const

bool	setLayer (int layernumber)

int	getLayer () const

void	addOpeningElement (std::shared_ptr< OpeningElement > aOpening)

void	removeOpeningElement (std::shared_ptr< OpeningElement > aOpening)

void	removeOpeningElements ()

std::vector< std::shared_ptr< OpeningElement > >	getOpeningElements () const

void	addParamCutHardElement (std::shared_ptr< Element > aElement)

void	addParamCutSoftElement (std::shared_ptr< Element > aElement)

void	removeParamCutHardElement (std::shared_ptr< Element > aElement)

void	removeParamCutSoftElement (std::shared_ptr< Element > aElement)

std::vector< std::shared_ptr< Element > >	getParamCutHardElements (bool includeAggregatedElements=false) const

std::vector< std::shared_ptr< Element > >	getParamCutSoftElements () const

bool	isParamCutHardElement () const

bool	isParamCutSoftElement () const

void	addSubElement (std::shared_ptr< SubElement > aSubElement)

std::vector< std::shared_ptr< SubElement > >	getSubElements () const

void	removeSubElement (std::shared_ptr< SubElement > aSubElement)

void	removeSubElements ()

std::shared_ptr< OpeningElement >	getFilledOpeningElement () const

void	setAssociatedMaterial (std::shared_ptr< MaterialDefinition > aMaterialDefinition)

void	removeAssociatedMaterial ()

std::shared_ptr< MaterialSelect >	getAssociatedMaterial () const

bool	isTemporary () const

void	setTemporary (bool on)

std::shared_ptr< Group >	getGroup () const

std::shared_ptr< Element >	copy () const

Topo::Cdwk_SAT_Attributes	get_Cdwk_SAT_Attributes () const

Base::String	getTag () const

void	setTag (const Base::String &aTag)

void	setCdwkAttributeData (const CdwkAttributeData &aData)

std::string	getCadworkGroup () const

void	setBoundingBoxEnabled (bool enabled)

std::shared_ptr< OpenLxApp::Geometry >	getAxisRepresentation () const

bool	setAxisRepresentation (std::shared_ptr< OpenLxApp::Geometry > aGeometry) const

std::shared_ptr< OpenLxApp::Geometry >	getSolidModelRepresentation () const

bool	setSolidModelRepresentation (std::shared_ptr< OpenLxApp::Geometry > aGeometry) const

void	showAxisRepresentation () const

void	showSolidModelRepresentation () const

Public Member Functions inherited from OpenLxApp::Product
virtual	~Product (void)

virtual bool	setGeometry (std::shared_ptr< Geometry > geo)

std::shared_ptr< Geometry >	getGeometry () const

Geom::Trsf	getGeometryToWorldTransform () const

Geom::Bnd_Box	getBoundingBox () const

Geom::Ax2	getLocalPlacement () const

void	setLocalPlacement (const Geom::Ax2 &pos)

Geom::Trsf	getTransform () const

Geom::Trsf	getLocalToWorldTransform () const

void	setTransform (const Geom::Trsf &t)

void	translate (const Geom::Vec &aVec, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)

void	rotate (const Geom::Ax1 &axis, double angle, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)

bool	getLocalAxes (Geom::Ax2 &localAxes)

void	setLocalAxes (const Geom::Dir &zHeight, const Geom::Dir &xLength)

pConstShape	getShape () const

pConstShape	getLocalShape () const

void	setOglMaterial (const Draw::OglMaterial &mat, int faceIndex=-1)

Draw::OglMaterial	getOglMaterial () const

void	setAmbientColor (const Base::Color &aCol)

void	setDiffuseColor (const Base::Color &aCol)

void	setSpecularColor (const Base::Color &aCol)

void	setEmissiveColor (const Base::Color &aCol)

void	setReflectiveColor (const Base::Color &aCol)

void	setShininess (int aVal)

void	setTransparency (int aVal)

void	setDrawStyle (const Draw::DrawStyle &ds)

Draw::DrawStyle	getDrawStyle () const

void	setLineWidth (float width)

void	setTexture (const Draw::Texture2 &tex, int faceIndex=-1)

void	setLengthAndCrossTexture (const Draw::Texture2 &lengthTexture, const Draw::Texture2 &crossTexture, const Draw::Texture2Transform &lengthTextureTrsf=Draw::Texture2Transform(), const Draw::Texture2Transform &crossTextureTrsf=Draw::Texture2Transform())

std::shared_ptr< SpatialStructureElement >	getSpatialStructure () const

void	setSpatialStructure (std::shared_ptr< SpatialStructureElement > aSpatialStructureElement)

void	setPositionNb (long value)

long	getPositionNb () const

bool	isVisible () const

void	setVisible (bool onoff)

bool	registerPythonClass (const std::string &aClassName, const std::string &aParentClassName)

virtual Base::GlobalId	getGlobalClassId () const

std::shared_ptr< PropertyInteger >	registerPropertyInteger (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyEnum >	registerPropertyEnum (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyDouble >	registerPropertyDouble (const std::string &aName, double aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyButton >	registerPropertyButton (const std::string &aName, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyBool >	registerPropertyBool (const std::string &aName, bool aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyString >	registerPropertyString (const std::string &aName, Base::String aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyColor >	registerPropertyColor (const std::string &aName, Base::Color aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< OpenLxApp::Property >	getProperty (const std::string &aName) const

std::map< std::string, std::shared_ptr< Property > >	getPropertyMap () const

std::shared_ptr< PropertyInteger >	getPropertyInteger (const std::string &aName) const

std::shared_ptr< PropertyEnum >	getPropertyEnum (const std::string &aName) const

std::shared_ptr< PropertyDouble >	getPropertyDouble (const std::string &aName) const

std::shared_ptr< PropertyButton >	getPropertyButton (const std::string &aName) const

std::shared_ptr< PropertyBool >	getPropertyBool (const std::string &aName) const

std::shared_ptr< PropertyString >	getPropertyString (const std::string &aName) const

std::shared_ptr< PropertyColor >	getPropertyColor (const std::string &aName) const

bool	isRegisteredProperty (const std::string &aName) const

virtual void	onPropertyChanged (const std::string &aPropertyName)

virtual void	onScaling (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)

virtual void	translateAfterScaled (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)

void	setStandardManipulatorPolicy (const Core::StandardManipulatorPolicy &aPolicy)

void	setPropertyHeader (const Base::String &aDefaultName, int aTranslationId)

void	setPropertyHeader (const Base::String &aDefaultName)

void	setPropertyGroupName (const Base::String &aDefaultName, int aTranslationId)

void	setPropertyGroupName (const Base::String &aDefaultName)

Base::String	getPropertyHeader () const

Base::String	getPropertyGroupName () const

std::shared_ptr< PropertyUser >	getPropertyUser (const std::string &aName) const

std::vector< std::shared_ptr< PropertyUser > >	getPropertyUser () const

std::vector< Base::String >	getPropertySetNames () const

std::shared_ptr< PropertySet >	getPropertySetByName (const Base::String &aName) const

ExternalPythonTypeObject *	getExternalPythonTypeObject () const

void	setExternalPythonTypeObject (ExternalPythonTypeObject *aObj)

void	removeExternalTypeObject ()

Public Member Functions inherited from OpenLxApp::Object
virtual	~Object (void)

Public Member Functions inherited from OpenLxApp::ObjectDefinition
virtual	~ObjectDefinition (void)

std::vector< std::shared_ptr< ObjectDefinition > >	getDecompositionObjects () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllDecompositionObjects () const

std::shared_ptr< ObjectDefinition >	getDecomposedObject () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllDecomposedObjects () const

void	addAggregationObject (std::shared_ptr< ObjectDefinition > aObject)

void	addAggregationObjects (const std::vector< std::shared_ptr< ObjectDefinition >> &aObjects)

void	removeAggregationObject (std::shared_ptr< ObjectDefinition > aObject)

void	removeAggregationObjects ()

std::vector< std::shared_ptr< ObjectDefinition > >	getAggregationObjects () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllAggregationObjects () const

std::shared_ptr< ObjectDefinition >	getAggregatedObject () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllAggregatedObjects () const

void	addAssociationObject (std::shared_ptr< Root > aObject)

std::vector< std::shared_ptr< Root > >	getAssociationObjects () const

std::shared_ptr< LxIfcBase::LxIfcProperty >	getIfcPropertySets () const

Public Member Functions inherited from OpenLxApp::Root
void	setUserName (const Base::String &aName)

Base::String	getUserName () const

virtual	~Root (void)

Base::GlobalId	getGlobalId () const

bool	setGlobalId (const Base::GlobalId &aGlobalId)

Public Member Functions inherited from OpenLxApp::DocObject
std::shared_ptr< Document >	getDocument () const

bool	isNew () const

bool	isUpdated () const

bool	isValid () const

bool	hasErrors () const

void	touch ()

LxIfc4::LxIfc4EntityEnum	getEntityType () const

std::string	getEntityTypeAsString () const

std::shared_ptr< Core::DbgInfo >	getDbgInfo () const

	DocObject (Core::DocObject *aObject)

virtual	~DocObject (void)

Core::DocObject *	__getObj__ () const

Public Member Functions inherited from Core::DocObjectObserver
virtual	~DocObjectObserver ()

Protected Member Functions
	BuildingElementProxy ()

Protected Member Functions inherited from OpenLxApp::Element
	Element ()=default

void	_copySubElems (App::Element *fromElem, std::shared_ptr< Element > toElem) const

Protected Member Functions inherited from OpenLxApp::Product
void	onChange (Core::DocObject *aCaller, const Core::DocObjectObserverMsg &aReason) override

	Product ()

Protected Member Functions inherited from OpenLxApp::Object
	Object ()

Protected Member Functions inherited from OpenLxApp::ObjectDefinition
	ObjectDefinition ()

Protected Member Functions inherited from OpenLxApp::Root
	Root ()

Protected Member Functions inherited from OpenLxApp::DocObject
	DocObject ()

Additional Inherited Members
Protected Attributes inherited from OpenLxApp::DocObject
Core::DocObject *	_coreObj = nullptr

Detailed Description

The BuildingElementProxy is a proxy definition that provides the same functionality as subtypes of BuildingElement, but without having a predefined meaning of the special type of building element, it represents. Proxies can also be used as spatial place holders or provisions, that are later replaced by special types of elements. One use of the proxy object is a provision for voids, i.e. where a particular volume of space is requested by an engineering function that might later be accepted or rejected. If accepted it is transformed into a void within a building element, like a wall opening, or a slab opening. The provision for voids is exchanged as an BuildingElementProxy with the PredefinedType = ProvisionForVoid. Such proxy shall have a swept solid geometry, where the profile of the swept solid lies on/near the surface of the referred building element and the extrusion depths is equal to or bigger then (in case of round or otherwise irregular element shape) the thickness of the building element. The appropriate property set should be attached. In addition to the provision for voids, the building element proxy can also represent a provision for space, often the necessary space allocation for mechanical equipment that will be determined in a later design phase. The provision for space is exchanged as an IfcBuildingElementProxy with the PredefinedType = ProvisionForSpace.

Other usages of BuildingElementProxy include:

The BuildingElementProxy can be used to exchange special types of building elements for which the current specification does not yet provide a semantic definition.
The BuildingElementProxy can also be used to represent building elements for which the participating applications can not provide a semantic definition.

See also: Documentation from IFC4: IfcBuildingElementProxy

Member Enumeration Documentation

◆ BuildingElementProxyTypeEnum

enum OpenLxApp::BuildingElementProxy::BuildingElementProxyTypeEnum

strong

Enumerator
COMPLEX
ELEMENT
PARTIAL
PROVISIONFORVOID
USERDEFINED
NOTDEFINED

Constructor & Destructor Documentation

◆ ~BuildingElementProxy()

virtual OpenLxApp::BuildingElementProxy::~BuildingElementProxy ( void )

virtual

◆ BuildingElementProxy()

OpenLxApp::BuildingElementProxy::BuildingElementProxy ( )

inlineprotected

Member Function Documentation

◆ getPredefinedType()

BuildingElementProxyTypeEnum OpenLxApp::BuildingElementProxy::getPredefinedType ( ) const

◆ setPredefinedType()

void OpenLxApp::BuildingElementProxy::setPredefinedType ( BuildingElementProxyTypeEnum aType )

The documentation for this class was generated from the following file:
