#include <Property.h>

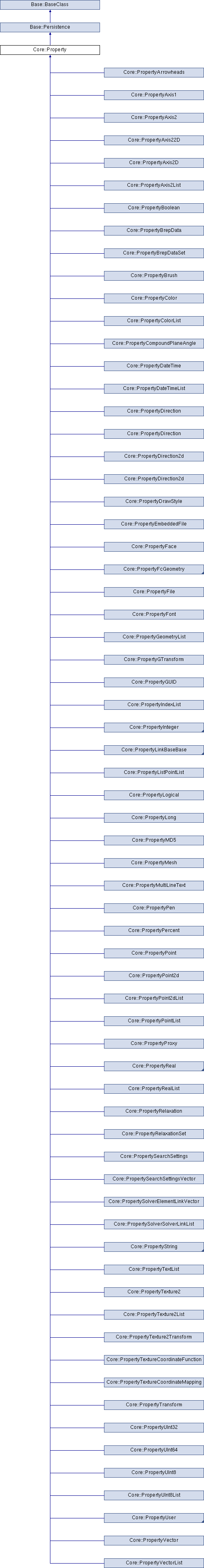

Inheritance diagram for Core::Property:

Public Types
enum	Status { New = 1 << 1, Valid = 1 << 2, Updated = 1 << 3 }

enum	ExStatus { Touched = 0, Immutable = 1, ReadOnly = 2, Hidden = 3, Transient = 4, MaterialEdit = 5, NoMaterialListEdit = 6, Output = 7, LockDynamic = 8, NoModify = 9, PartialTrigger = 10, NoRecompute = 11, Single = 12, Ordered = 13, EvalOnRestore = 14, PropStaticBegin = 21, PropDynamic = 21, PropNoPersist = 22, PropNoRecompute = 23, PropReadOnly = 24, PropTransient = 25, PropHidden = 26, PropOutput = 27, PropStaticEnd = 28, User1 = 28, User2 = 29, User3 = 30, User4 = 31 }

Public Member Functions
	Property (void)

virtual	~Property (void)

void	setName (const std::string &name)

std::string	getName () const

Core::PropertyContainer *	getContainer () const

void	setContainer (Core::PropertyContainer *container)

void	addToContainer (const std::string &name)

virtual Core::Variant	getVariant (void) const =0

virtual bool	setValueFromVariant (const Core::Variant &value)=0

virtual Property *	copy (void) const =0
	Returns a new copy of the property (mainly for Undo/Redo and transactions). The copy has no container. More...

virtual void	paste (const Property &from)=0
	Paste the value from the property (mainly for Undo/Redo and transactions) More...

virtual bool	setKeyValue (const std::string &key, const Core::Variant &value)
	Sets a sub key in this property. More...

virtual std::map< std::string, Core::Variant >	getKeyValueMap () const
	Returns all keys and their values of this property. More...

Core::Variant	getVariantFromKey (const std::string &key) const
	Gets the variant for a key. More...

std::vector< std::string >	getKeys () const
	Returns all keys of this property. More...

virtual void	copyValue (Core::Property *p)=0

virtual void	deepCopy (Core::Property p, Core::CoreDocument dest_doc, DocObjectMap &copyMap)

bool	enableNotify (bool on)

bool	isNotifyEnabled (void) const

void	touch ()

bool	setWillChangeStatusOnChange (bool on)

long	getTransactionNumber () const

bool	isUpdated () const
	Checks if the property was updated. More...

bool	isTheOnlyUpdatedPropertyInContainer () const
	Checks if this is the only updated property in the container. More...

virtual const Core::PropertyKind	getPropertyKind (void) const

virtual void	setPropertyKind (Core::PropertyKind p)

bool	hasValue () const
	Returns 'true' if the property has a value. This is mainly for optional properties. More...

virtual bool	isOptional () const
	Checks if this is an optional property. More...

void	setHasValue (bool yesno)
	is called when a property holds a value. For optional properties. More...

virtual bool	isEqual (const Property *) const =0
	compare properties More...

virtual bool	isLink () const
	Check if Property is of type PropertyLink, LinkSet etc. For better performance. More...

virtual std::shared_ptr< Core::DbgInfo >	getDbgInfo () const
	Returns the debug information for this property. More...

void	setStatus (const Property::Status &in)

Property::Status	getStatus () const

bool	isDefaultValue () const

void	setDefaultValue (bool on)

void	accept (Core::CoreVisitor *visitor)

virtual bool	createSQL (Base::AbstractWriter &writer, Base::PersistenceVersion &save_version, bool data) override
	This method is used to save properties or very small amounts of data to an XML document. More...

short	getType (void) const
	Get the type of the property in the container. More...

StatusBits
unsigned long	getExStatus () const

bool	testExStatus (ExStatus pos) const

void	setExStatus (ExStatus pos, bool on)

void	setExStatusValue (unsigned long status)

Public Member Functions inherited from Base::Persistence
virtual void	save (Base::AbstractWriter &, Base::PersistenceVersion &)=0
	This method is used to save properties or very small amounts of data to an XML document. More...

virtual void	restore (Base::AbstractXMLReader &, Base::PersistenceVersion &)=0
	This method is used to restore properties from an XML document. More...

virtual void	saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
	This method is used to save large amounts of data to a binary file. More...

virtual void	restoreDocFile (Base::Reader &, const Base::String &)
	This method is used to restore large amounts of data from a binary file. More...

virtual bool	mustbeSaved () const
	Return 'true' if this object must always be saved in the file. More...

Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const

template<typename T >
bool	isDerivedFrom () const

bool	isDerivedFrom (const Type type) const

	BaseClass ()
	Construction. More...

virtual	~BaseClass ()
	Destruction. More...

Static Public Member Functions
static void	registerProperties (Base::Type t, const Core::PropertyValueMap &pvm)
	Registers the properties with default values for type 't'. More...

static bool	getRegisteredProperties (Base::Type t, Core::PropertyValueMap &pvm)
	Returns the properties with default values of type t;. More...

static const char *	getXMLPropertyAttributeName ()

static const char *	getXMLPropertyAttributeValue ()

static void	setXMLPropertyAttributeName (const char *)

static void	setXMLPropertyAttributeValue (const char *)

Static Public Member Functions inherited from Base::Persistence
static std::string	encodeAttribute (const std::string &)

Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)

static void	init (void)

static void *	create (void)

static void	setIfcNameAndID (const std::string &n, int id)

Protected Member Functions
void	hasSetValue (void)
	Should be called by all setValue() methods after the value was changed. More...

bool	aboutToSetValue (const Core::Variant &newValue=Core::Variant())

Protected Attributes
std::bitset< 32 >	StatusBits

Friends
class	DynamicProperty

Additional Inherited Members
Public Attributes inherited from Base::BaseClass
long	____deadVal = 0xBADEAFFE

Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char ClassName, const char ParentName, Type::instantiationMethod method=0)

static void	initIfcTypes (const std::string &s, Base::Type classTypeId, int id)

Member Enumeration Documentation

◆ ExStatus

enum Core::Property::ExStatus

Enumerator
Touched
Immutable
ReadOnly
Hidden
Transient
MaterialEdit
NoMaterialListEdit
Output
LockDynamic
NoModify
PartialTrigger
NoRecompute
Single
Ordered
EvalOnRestore
PropStaticBegin
PropDynamic
PropNoPersist
PropNoRecompute
PropReadOnly
PropTransient
PropHidden
PropOutput
PropStaticEnd
User1
User2
User3
User4

◆ Status

enum Core::Property::Status

Enumerator
New
Valid
Updated

Constructor & Destructor Documentation

◆ Property()

Core::Property::Property ( void )

◆ ~Property()

virtual Core::Property::~Property ( void )

virtual

Member Function Documentation

◆ aboutToSetValue()

bool Core::Property::aboutToSetValue ( const Core::Variant & newValue = Core::Variant() )

protected

Should be called by all setValue() methods before the value is changed, returns true if the change is validated by container (false otherwise), so far only properties (and only their setValue() methods, copyValue() doesn't use it) in the following files use the container validation functionality: PropertyReal, PropertyInteger, PropertyLogical, PropertyDrawStyle

◆ accept()

void Core::Property::accept ( Core::CoreVisitor * visitor )

◆ addToContainer()

void Core::Property::addToContainer ( const std::string & name )

◆ copy()

virtual Property* Core::Property::copy ( void ) const

pure virtual

Returns a new copy of the property (mainly for Undo/Redo and transactions). The copy has no container.

◆ copyValue()

virtual void Core::Property::copyValue ( Core::Property * p )

pure virtual

Implemented in Core::PropertyUInt8List, Core::PropertyEnum, Core::PropertyIndexList, Core::PropertyPoint2dList, Core::PropertyTexture2List, Core::PropertyTypedLinkList< T >, Core::PropertyUInt8, Core::PropertyPoint2d, Core::PropertyTextureCoordinateFunction, Core::PropertyLinkList, Core::PropertyUInt32, Core::PropertyAxis2List, Core::PropertyListPointList, Core::PropertyBackLinkSetBase, Core::PropertyTextureCoordinateMapping, Core::PropertyUInt64, Core::PropertyMultiLineText, Core::PropertyAxis22D, Core::PropertyRealList, Core::PropertyArrowheads, Core::PropertyDirection2d, Core::PropertyAxis2D, Core::PropertyTexture2Transform, Core::PropertyColorList, Core::PropertyPointList, Core::PropertyGTransform, Core::PropertyBrepDataSet, Core::PropertyDirection2d, Core::PropertySearchSettingsVector, Core::PropertyRelaxationSet, Core::PropertyDateTimeList, Core::PropertyMD5, Core::PropertyVectorList, Core::PropertyLong, Core::PropertyGUID, Core::PropertyGeometryList, Core::PropertyBackLinkBase, Core::PropertyLinkBase, Core::PropertyTextList, Core::PropertyAxis2, Core::PropertyDirection, Core::PropertyString, Core::PropertyLinkSetBase, Core::PropertyProxy, Core::PropertyTexture2, Core::PropertyUser, Core::PropertyAxis1, Core::PropertyColor, Core::PropertyLinkListBase, Core::PropertyLogical, Core::PropertyPoint, Core::PropertySearchSettings, Core::PropertyDirection, Core::PropertyEmbeddedFile, Core::PropertyFont, Core::PropertyRelaxation, Core::PropertyBrush, Core::PropertyMesh, Core::PropertyBrepData, Core::PropertyCompoundPlaneAngle, Core::PropertySolverElementLinkVector, Core::PropertySolverSolverLinkList, Core::PropertyBoolean, Core::PropertyDrawStyle, Core::PropertyFace, Core::PropertyReal, Core::PropertyTransform, Core::PropertyVector, Core::PropertyDateTime, Core::PropertyInteger, Core::PropertyPen, Core::PropertyFile, and Core::PropertyPercent.

◆ createSQL()

virtual bool Core::Property::createSQL	(	Base::AbstractWriter &	,
		Base::PersistenceVersion &	,
		bool
	)

overridevirtual

This method is used to save properties or very small amounts of data to an XML document.

Reimplemented from Base::Persistence.

Reimplemented in Core::PropertyGUID, Core::PropertyString, Core::PropertyLinkBase, Core::PropertyInteger, Core::PropertyBoolean, Core::PropertyReal, and Core::PropertyDateTime.

◆ deepCopy()

virtual void Core::Property::deepCopy	(	Core::Property *	p,
		Core::CoreDocument *	dest_doc,
		DocObjectMap &	copyMap
	)

virtual

Reimplemented in Core::PropertyLinkBase, Core::PropertyLinkSetBase, and Core::PropertyLinkListBase.

◆ enableNotify()

bool Core::Property::enableNotify ( bool on )

inline

Controls whether to call container's aboutToSetValue() and hasSetValue(), if the parameter is false the integrity of the container is lost, when the parameter is true and the integrity isn't intact ensureIntegrity is called to resolve this

◆ getContainer()

Core::PropertyContainer* Core::Property::getContainer ( ) const

◆ getDbgInfo()

virtual std::shared_ptr<Core::DbgInfo> Core::Property::getDbgInfo ( ) const

virtual

Returns the debug information for this property.

Reimplemented in Core::PropertyBackLinkSetBase, Core::PropertyAxis22D, Core::PropertyGUID, Core::PropertyTexture2Transform, Core::PropertyLinkSetBase, Core::PropertyAxis2, Core::PropertyLinkBase, Core::PropertyLinkListBase, Core::PropertyBackLinkBase, Core::PropertySolverElementLinkVector, Core::PropertySolverSolverLinkList, Core::PropertyGeometryList, Core::PropertyTransform, and Core::PropertyDrawStyle.

◆ getExStatus()

unsigned long Core::Property::getExStatus ( ) const

inline

◆ getKeys()

std::vector<std::string> Core::Property::getKeys ( ) const

Returns all keys of this property.

◆ getKeyValueMap()

virtual std::map<std::string, Core::Variant> Core::Property::getKeyValueMap ( ) const

virtual

Returns all keys and their values of this property.

Reimplemented in Core::PropertyArrowheads, Core::PropertyAxis2, Core::PropertyPoint, Core::PropertyDrawStyle, Core::PropertyLinkBase, Core::PropertyColor, and Core::PropertyLinkSetBase.

◆ getName()

std::string Core::Property::getName ( ) const

inline

◆ getPropertyKind()

virtual const Core::PropertyKind Core::Property::getPropertyKind ( void ) const

virtual

Reimplemented in Core::PropertyBackLinkSetBase, Core::PropertyLinkSetBase, Core::PropertyBackLinkBase, Core::PropertyLinkBase, Core::PropertyLinkListBase, Core::PropertySolverElementLinkVector, and Core::PropertySolverSolverLinkList.

◆ getRegisteredProperties()

static bool Core::Property::getRegisteredProperties	(	Base::Type	t,
		Core::PropertyValueMap &	pvm
	)

static

Returns the properties with default values of type t;.

◆ getStatus()

Property::Status Core::Property::getStatus ( ) const

inline

◆ getTransactionNumber()

long Core::Property::getTransactionNumber ( ) const

inline

◆ getType()

short Core::Property::getType ( void ) const

Get the type of the property in the container.

◆ getVariant()

virtual Core::Variant Core::Property::getVariant ( void ) const

pure virtual

Implemented in Core::PropertyUInt8List, Core::PropertyIndexList, Core::PropertyPoint2dList, Core::PropertyTexture2List, Core::PropertyUInt8, Core::PropertyPoint2d, Core::PropertyTextureCoordinateFunction, Core::PropertyLinkList, Core::PropertyUInt32, Core::PropertyListPointList, Core::PropertyAxis2List, Core::PropertyBackLinkSetBase, Core::PropertyTextureCoordinateMapping, Core::PropertyUInt64, Core::PropertyMultiLineText, Core::PropertyAxis22D, Core::PropertyPointList, Core::PropertyColorList, Core::PropertyRealList, Core::PropertyBrepDataSet, Core::PropertyArrowheads, Core::PropertyDirection2d, Core::PropertyGTransform, Core::PropertyAxis2D, Core::PropertyTexture2Transform, Core::PropertyDateTimeList, Core::PropertyVectorList, Core::PropertyDirection2d, Core::PropertyRelaxationSet, Core::PropertySearchSettingsVector, Core::PropertyMD5, Core::PropertyLong, Core::PropertyGUID, Core::PropertyTextList, Core::PropertyBackLinkBase, Core::PropertyGeometryList, Core::PropertyAxis2, Core::PropertyDirection, Core::PropertySolverElementLinkVector, Core::PropertySolverSolverLinkList, Core::PropertyString, Core::PropertyProxy, Core::PropertyTexture2, Core::PropertyUser, Core::PropertyAxis1, Core::PropertyColor, Core::PropertyLinkBase, Core::PropertyLogical, Core::PropertyMesh, Core::PropertyPoint, Core::PropertySearchSettings, Core::PropertyBrepData, Core::PropertyDirection, Core::PropertyEmbeddedFile, Core::PropertyFont, Core::PropertyLinkSetBase, Core::PropertyRelaxation, Core::PropertyBrush, Core::PropertyTransform, Core::PropertyCompoundPlaneAngle, Core::PropertyBoolean, Core::PropertyDrawStyle, Core::PropertyFace, Core::PropertyLinkListBase, Core::PropertyReal, Core::PropertyVector, Core::PropertyDateTime, Core::PropertyFile, Core::PropertyInteger, Core::PropertyPen, and Core::PropertyPercent.

◆ getVariantFromKey()

Core::Variant Core::Property::getVariantFromKey ( const std::string & key ) const

Gets the variant for a key.

◆ getXMLPropertyAttributeName()

static const char* Core::Property::getXMLPropertyAttributeName ( )

static

◆ getXMLPropertyAttributeValue()

static const char* Core::Property::getXMLPropertyAttributeValue ( )

static

◆ hasSetValue()

void Core::Property::hasSetValue ( void )

protected

Should be called by all setValue() methods after the value was changed.

◆ hasValue()

bool Core::Property::hasValue ( ) const

Returns 'true' if the property has a value. This is mainly for optional properties.

◆ isDefaultValue()

bool Core::Property::isDefaultValue ( ) const

inline

◆ isEqual()

virtual bool Core::Property::isEqual ( const Property * ) const

pure virtual

compare properties

Implemented in Core::PropertyUInt8List, Core::PropertyEnum, Core::PropertyIndexList, Core::PropertyPoint2dList, Core::PropertyTexture2List, Core::PropertyTypedLinkList< T >, Core::PropertyUInt8, Core::PropertyPoint2d, Core::PropertyTextureCoordinateFunction, Core::PropertyLinkList, Core::PropertyListPointList, Core::PropertyUInt32, Core::PropertyAxis2List, Core::PropertyBackLinkSetBase, Core::PropertyTextureCoordinateMapping, Core::PropertyUInt64, Core::PropertyMultiLineText, Core::PropertyAxis22D, Core::PropertyPointList, Core::PropertyColorList, Core::PropertyRealList, Core::PropertyArrowheads, Core::PropertyTexture2Transform, Core::PropertyGTransform, Core::PropertyAxis2D, Core::PropertyBrepDataSet, Core::PropertyDirection2d, Core::PropertyDateTimeList, Core::PropertyVectorList, Core::PropertyRelaxationSet, Core::PropertyGUID, Core::PropertySearchSettingsVector, Core::PropertyMD5, Core::PropertyLong, Core::PropertyTextList, Core::PropertyLinkSetBase, Core::PropertyAxis2, Core::PropertyBackLinkBase, Core::PropertyLinkBase, Core::PropertyLinkListBase, Core::PropertySolverElementLinkVector, Core::PropertySolverSolverLinkList, Core::PropertyString, Core::PropertyGeometryList, Core::PropertyProxy, Core::PropertyAxis1, Core::PropertyTexture2, Core::PropertyUser, Core::PropertyPoint, Core::PropertyColor, Core::PropertyDirection, Core::PropertyLogical, Core::PropertyMesh, Core::PropertySearchSettings, Core::PropertyTransform, Core::PropertyBrepData, Core::PropertyCompoundPlaneAngle, Core::PropertyDrawStyle, Core::PropertyEmbeddedFile, Core::PropertyFont, Core::PropertyRelaxation, Core::PropertyBrush, Core::PropertyBoolean, Core::PropertyReal, Core::PropertyDateTime, Core::PropertyFace, Core::PropertyVector, Core::PropertyFile, Core::PropertyInteger, Core::PropertyPen, and Core::PropertyPercent.

◆ isLink()

virtual bool Core::Property::isLink ( ) const

inlinevirtual

Check if Property is of type PropertyLink, LinkSet etc. For better performance.

Reimplemented in Core::PropertyLinkSetBase, Core::PropertyLinkBase, Core::PropertyLinkListBase, Core::PropertySolverElementLinkVector, and Core::PropertySolverSolverLinkList.

◆ isNotifyEnabled()

bool Core::Property::isNotifyEnabled ( void ) const

inline

◆ isOptional()

virtual bool Core::Property::isOptional ( ) const

inlinevirtual

Checks if this is an optional property.

Reimplemented in Core::PropertyLengthOpt.

◆ isTheOnlyUpdatedPropertyInContainer()

bool Core::Property::isTheOnlyUpdatedPropertyInContainer ( ) const

Checks if this is the only updated property in the container.

◆ isUpdated()

bool Core::Property::isUpdated ( ) const

Checks if the property was updated.

◆ paste()

virtual void Core::Property::paste ( const Property & from )

pure virtual

Paste the value from the property (mainly for Undo/Redo and transactions)

◆ registerProperties()

static void Core::Property::registerProperties	(	Base::Type	t,
		const Core::PropertyValueMap &	pvm
	)

static

Registers the properties with default values for type 't'.

◆ setContainer()

void Core::Property::setContainer ( Core::PropertyContainer * container )

◆ setDefaultValue()

void Core::Property::setDefaultValue ( bool on )

inline

◆ setExStatus()

void Core::Property::setExStatus	(	ExStatus	pos,
		bool	on
	)

◆ setExStatusValue()

void Core::Property::setExStatusValue ( unsigned long status )

◆ setHasValue()

void Core::Property::setHasValue ( bool yesno )

is called when a property holds a value. For optional properties.

◆ setKeyValue()

virtual bool Core::Property::setKeyValue	(	const std::string &	key,
		const Core::Variant &	value
	)

virtual

Sets a sub key in this property.

Reimplemented in Core::PropertyArrowheads, Core::PropertyLinkBase, Core::PropertyPoint, Core::PropertyAxis2, Core::PropertyColor, Core::PropertyLinkSetBase, and Core::PropertyDrawStyle.

◆ setName()

void Core::Property::setName ( const std::string & name )

inline

◆ setPropertyKind()

virtual void Core::Property::setPropertyKind ( Core::PropertyKind p )

virtual

◆ setStatus()

void Core::Property::setStatus ( const Property::Status & in )

inline

◆ setValueFromVariant()

virtual bool Core::Property::setValueFromVariant ( const Core::Variant & value )

pure virtual

Implemented in Core::PropertyUInt8List, Core::PropertyIndexList, Core::PropertyPoint2dList, Core::PropertyTexture2List, Core::PropertyTypedLinkList< T >, Core::PropertyUInt8, Core::PropertyPoint2d, Core::PropertyTextureCoordinateFunction, Core::PropertyLinkList, Core::PropertyUInt32, Core::PropertyAxis2List, Core::PropertyListPointList, Core::PropertyBackLinkSetBase, Core::PropertyTextureCoordinateMapping, Core::PropertyUInt64, Core::PropertyMultiLineText, Core::PropertyAxis22D, Core::PropertyRealList, Core::PropertyArrowheads, Core::PropertyDirection2d, Core::PropertyAxis2D, Core::PropertyTexture2Transform, Core::PropertyColorList, Core::PropertyPointList, Core::PropertyGTransform, Core::PropertyBrepDataSet, Core::PropertyDirection2d, Core::PropertySearchSettingsVector, Core::PropertyRelaxationSet, Core::PropertyDateTimeList, Core::PropertyMD5, Core::PropertyVectorList, Core::PropertyLong, Core::PropertyGUID, Core::PropertyGeometryList, Core::PropertyBackLinkBase, Core::PropertyTextList, Core::PropertyDirection, Core::PropertyString, Core::PropertyProxy, Core::PropertyTexture2, Core::PropertyLogical, Core::PropertyUser, Core::PropertyLinkBase, Core::PropertySearchSettings, Core::PropertyDirection, Core::PropertyEmbeddedFile, Core::PropertyFont, Core::PropertyRelaxation, Core::PropertyAxis2, Core::PropertyBrush, Core::PropertyMesh, Core::PropertyPoint, Core::PropertyAxis1, Core::PropertyBrepData, Core::PropertyCompoundPlaneAngle, Core::PropertyLinkListBase, Core::PropertySolverElementLinkVector, Core::PropertySolverSolverLinkList, Core::PropertyBoolean, Core::PropertyLinkSetBase, Core::PropertyReal, Core::PropertyTransform, Core::PropertyVector, Core::PropertyColor, Core::PropertyDateTime, Core::PropertyDrawStyle, Core::PropertyFace, Core::PropertyInteger, Core::PropertyPen, Core::PropertyFile, and Core::PropertyPercent.

◆ setWillChangeStatusOnChange()

bool Core::Property::setWillChangeStatusOnChange ( bool on )

inline

◆ setXMLPropertyAttributeName()

static void Core::Property::setXMLPropertyAttributeName ( const char * )

static

◆ setXMLPropertyAttributeValue()

static void Core::Property::setXMLPropertyAttributeValue ( const char * )

static

◆ testExStatus()

bool Core::Property::testExStatus ( ExStatus pos ) const

inline

◆ touch()

void Core::Property::touch ( )

inline

Simulates the value being changed - calls aboutToSetValue() and hasSetValue(), aboutToSetValue() is called without the optional argument Core::Variant &newValue,

more info at the PropertyContainer's onBeforeChange() method

Friends And Related Function Documentation

◆ DynamicProperty

friend class DynamicProperty

friend

Member Data Documentation

◆ StatusBits

std::bitset<32> Core::Property::StatusBits

protected

Status bits of the property The first 8 bits are used for the base system the rest can be used in descendant classes to mark special statuses on the objects. The bits and their meaning are listed below: 0 - object is marked as 'touched' 1 - object is marked as 'immutable' 2 - object is marked as 'read-only' (for property editor) 3 - object is marked as 'hidden' (for property editor)

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/Core/include/Core/Property.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Member Enumeration Documentation

◆ ExStatus

◆ Status

Constructor & Destructor Documentation

◆ Property()

◆ ~Property()

Member Function Documentation

◆ aboutToSetValue()

◆ accept()

◆ addToContainer()

◆ copy()

◆ copyValue()

◆ createSQL()

◆ deepCopy()

◆ enableNotify()

◆ getContainer()

◆ getDbgInfo()

◆ getExStatus()

◆ getKeys()

◆ getKeyValueMap()

◆ getName()

◆ getPropertyKind()

◆ getRegisteredProperties()

◆ getStatus()

◆ getTransactionNumber()

◆ getType()

◆ getVariant()

◆ getVariantFromKey()

◆ getXMLPropertyAttributeName()

◆ getXMLPropertyAttributeValue()

◆ hasSetValue()

◆ hasValue()

◆ isDefaultValue()

◆ isEqual()

◆ isLink()

◆ isNotifyEnabled()

◆ isOptional()

◆ isTheOnlyUpdatedPropertyInContainer()

◆ isUpdated()

◆ paste()

◆ registerProperties()

◆ setContainer()

◆ setDefaultValue()

◆ setExStatus()

◆ setExStatusValue()

◆ setHasValue()

◆ setKeyValue()

◆ setName()

◆ setPropertyKind()

◆ setStatus()

◆ setValueFromVariant()

◆ setWillChangeStatusOnChange()

◆ setXMLPropertyAttributeName()

◆ setXMLPropertyAttributeValue()

◆ testExStatus()

◆ touch()

Friends And Related Function Documentation

◆ DynamicProperty

Member Data Documentation

◆ StatusBits
