Core::CoreDocument Class Reference

#include <CoreDocument.h>

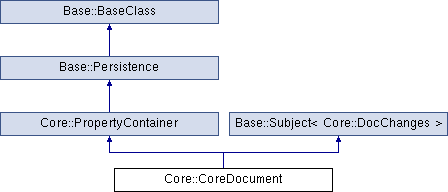

Inheritance diagram for Core::CoreDocument:

Public Types
enum	Status {   SkipRecompute = 0, KeepTrailingDigits = 1, Closable = 2, Restoring = 3,   Recomputing = 4, PartialRestore = 5, Importing = 6, PartialDoc = 7,   AllowPartialRecompute = 8, TempDoc = 9, RestoreError = 10 }
Public Types inherited from Base::Subject< Core::DocChanges >
typedef Observer< Core::DocChanges >	ObserverType
typedef Core::DocChanges	MessageType
typedef Subject< Core::DocChanges >	SubjectType

Public Member Functions
int	getDocumentVersion () const
	Returns the version of the document. More...
bool	addObject (Core::DocObject *e)
	Adds an existing object to the document. More...
void	removeObject (Core::DocObject *e)
	Removes an object from the document. More...
void	removeObjectFinal (Core::DocObject *e, bool deep=false)
	Removes an object from the document. More...
virtual void	onFileOpened ()
	Is called when the file was opened, but before the message FileOpened gets emitted. Can be overwritten to add custom behavior. More...
void	onBeforeChangeProperty (const Core::DocObject *Who, const Property *What)
	callback from the Document objects before property will be changed More...
void	onChangedProperty (const Core::DocObject *Who, const Property *What)
	callback from the Document objects after property was changed More...
virtual bool	onChangedDebug (Core::DocObject *o, Core::Property *p)
Base::Type	getCopyType () const
void	clearCopyType ()
	Sets the copy type to Base::Type::badType(), next copied object will be copied as its own type. More...
Core::DocObject *	copyObject (Core::DocObject *o, DocObjectMap &copyMap=DocObjectMap())
	Creates a copy of 'o' and adds it to the document, provides map of pairs original-copy to see which object is a copy of another one. More...
Core::DocObject *	copyToDifferentType (Core::DocObject *o, Base::Type typeToCreate, DocObjectMap &copyMap)
	Creates an object of type 'typeToCreate' and copy properties from 'o' to it. Provides map of pairs original-copy. More...
Core::DocObject *	copySharedObject (Core::DocObject *o, DocObjectMap &copyMap)
	Copy shared object. This is violating of the share, but in some cases this is useful. Use wisely!! More...
template<typename Type >
Type	copyObjectShallow (Type o)
	Creates a copy of 'o' and adds it to the document. Performs shallow copy. More...
std::vector< Core::DocObject * >	getObjects (bool includeDeletedObjects=false) const
	Returns all objects in the document. More...
std::vector< const Core::DocObject * >	getObjectsConst (bool includeDeletedObjects=false) const
std::vector< Core::DocObject * >	getObjectsSorted () const
	Returns all objects topologically sorted. More...
Core::DocObject *	createObjectFromTypeName (const char *typeName)
	Creates an object from type name and adds it to the document. More...
Core::DocObject *	createObjectFromType (Base::Type type)
	Creates an object from type and adds it to the document. More...
std::vector< Core::DocObject * >	getObjectsByTypeName (const std::string &typeName) const
	Returns all objects of typeName. More...
virtual void	recompute ()
	Recomputes the document. More...
Public Member Functions inherited from Core::PropertyContainer
	PropertyContainer (void)
	PropertyContainer (const PropertyContainer &rhs)
virtual	~PropertyContainer (void)=default
bool	addProperty (Core::Property *p, const std::string &name)
Core::Property *	addProperty (Base::Type t, const std::string &name, const Core::Variant &defaultValue)
	Adds a property to the PropertyContainer. Returns the added property on success, '0' on failure. More...
Core::PropertyUser *	addPropertyUser (const std::string &name, const Core::Variant &value)
	Convenience method for Python bindings. More...
void	removeProperty (Core::Property *p, std::string pName)
	Removes a property from the PropertyContainer and deletes it. More...
void	removeAllProperties ()
	Removes all properties from the PropertyContainer and deletes them. More...
Core::Property *	getPropertyByName (const std::string &name) const
	Returns the property with name 'name'. Returns '0' on failure. More...
Core::Property *	getPropertyByName (const Base::String &name) const
	Returns the property with name 'name'. Returns '0' on failure. More...
virtual const char *	getPropertyName (const Property *prop) const
	get the name of a property More...
template<typename T >
T *	getPropertyByName (const std::string &name) const
	Returns the property of type T with name 'name'. Returns 'nullptr' on failure. More...
void	getPropertyMap (Core::PropertyMap &) const
	Fills a PropertyMap. More...
std::vector< std::pair< Core::Property *, std::string > >	getPropertiesAndNameByType (Base::Type type) const
	Returns all properties of type 'type'. More...
std::vector< Core::Property * >	getPropertiesByType (Base::Type type) const
std::vector< Core::Property * >	getPropertiesByTypes (const std::vector< Base::Type > &type) const
bool	setPropertyFromVariant (const std::string &name, const Core::Variant &value)
	Sets a property to value. More...
bool	setProperty (const std::string &name, double value)
bool	setProperty (const std::string &name, int value)
bool	setProperty (const std::string &name, const Geom::Vec &value)
bool	setProperty (const std::string &name, const std::list< Geom::Vec > &value)
bool	setProperty (const std::string &name, const Geom::Trsf &value)
bool	setProperty (const std::string &name, const std::string &value)
bool	setProperty (const std::string &name, const char *value)
bool	setProperty (const std::string &name, const Base::String &value)
bool	setProperty (const std::string &name, const Geom::Pnt &value)
bool	setProperty (const std::string &name, const Geom::Pnt2d &value)
bool	setProperty (const std::string &name, const std::vector< Geom::Pnt > &value)
bool	setProperty (const std::string &name, const std::vector< Geom::Pnt2d > &value)
bool	setProperty (const std::string &name, const MD5 &value)
bool	setProperty (const std::string &name, bool value)
bool	setProperty (const std::string &name, Core::DocObject *value)
bool	setProperty (const std::string &name, const Core::DocObject *value)
bool	setProperty (const std::string &name, const std::unordered_set< Core::DocObject * > &value)
bool	setProperty (const std::string &name, const std::list< Core::DocObject * > &value)
bool	setProperty (const std::string &name, const std::vector< int > &value)
bool	setProperty (const std::string &name, const QFont &value)
bool	setProperty (const std::string &name, const Draw::DrawStyle &value)
bool	setProperty (const std::string &name, const Draw::Arrowheads &value)
bool	setProperty (const std::string &name, const Geom::Dir &value)
bool	setProperty (const std::string &name, const Geom::Dir2d &value)
bool	setProperty (const std::string &name, const Base::Color &value)
bool	setProperty (const std::string &name, const Geom::Ax1 &value)
bool	setProperty (const std::string &name, const Geom::Ax2 &value)
bool	setProperty (const std::string &name, const Draw::Texture2Transform &value)
bool	setProperty (const std::string &name, const std::list< std::list< Geom::Pnt > > &value)
bool	setProperty (const std::string &name, const std::vector< double > &value)
bool	setProperty (const std::string &name, pBrepData &value)
virtual bool	onBeforeChange (Core::Property *p, const Core::Variant &newValue=Core::Variant())
virtual void	onChanged (Core::Property *p)
	Is called after a property in a PropertyContainer has been changed. More...
virtual void	onDeleted ()
	Is called when a PropertyContainer's status is set to MarkedForDelete. More...
virtual void	onNew ()
	Is called when a PropertyContainer's status is set to New. More...
virtual void	onPropertyStatusBitsChanged (const Property &prop, unsigned long oldStatus)
	Is called when the Property StatusBits are changed. More...
virtual void	save (Base::AbstractWriter &writer, Base::PersistenceVersion &version)
	Saves the PropertyContainer to writer. More...
virtual void	restore (Base::AbstractXMLReader &reader, Base::PersistenceVersion &version)
	Restores the PropertyContainer from reader in specified version. More...
bool	enableNotify (const bool enable)
bool	isNotifyEnabled (void) const
	Returns whether notification of changes to the field values in the container is propagated to its auditors. More...
void	touch ()
	Sets all properties of this PropertyContainer to updated. More...
bool	isDeleted () const
bool	isStatusDeleted () const
	Returns true if the status is set to 'Deleted'. More...
bool	isMarkedForDelete () const
	Returns true if the status is set to 'MarkedForDelete'. More...
bool	isMarkedForDeleteFinal () const
	Returns true if the status is set to 'MarkedForDeleteFinal'. More...
bool	isDeletedFinal () const
	Returns true if the status is set to 'DeletedFinal'. More...
bool	isNew () const
	Returns true if the status is set to 'New'. More...
bool	isUpdated () const
	Returns true if the status is set to 'Updated'. More...
bool	isValid () const
	Returns true if the status is set to 'Valid'. More...
bool	hasErrors () const
	Returns true if the status is set to 'Error'. More...
void	setData (const std::string &key, void *data)
	Adds arbitrary data for this key to the PropertyContainer (Used in SDK) More...
void *	getData (const std::string &key, bool *ok=nullptr) const
	Returns data for this key from the PropertyContainer (Used in SDK) More...
void	removeData (const std::string &key)
	Removes the data from the PropertyContainer (Used in SDK) More...
bool	hasSameValuesAs (const PropertyContainer *container) const
	Returns 'true' if all values in 'container' match the corresponding property in this PropertyContainer. More...
void	setPropertyValues (const PropertyContainer *other)
	Copies the property values from 'other' PropertyContainer to this PropertyContainer. More...
template<typename T >
T	getPropertyValueByName (const std::string &propertyName, bool *ok=0) const
	Returns the property value T with this name. If ok=true T holds a valid value. More...
virtual void	ensureIntegrity ()
void	integrityMaintained ()
void	integrityLost ()
	Sets _integrity to false. More...
bool	checkIntegrity ()
	Returns the value of _integrity. More...
virtual bool	onChangedDebug (Core::Property *p)
	Is called after a property in a PropertyContainers has been changed, it ignores notify-flag. More...
virtual void	checkAfterOnDeleted ()
Core::PropertyValueMap	getPropertyValueMap () const
	Returns a map with the name of the property and its PropertyValue as a struct of the property type and the Core::Variant value. More...
std::map< std::string, Core::Variant >	getKeyValueMap () const
	Returns all keys and sub keys with their values of this container. More...
bool	setPropertyFromKeyValue (const std::string &propertyName, const std::string &key, const Core::Variant &value)
	Sets the key in a property to value. More...
std::set< Core::Property * >	getUpdatedProperties () const
	Returns all properties that were updated since the last recompute. More...
void	setUpdated ()
	Sets the status to 'Updated' if the old status was 'Valid'. More...
void	setUpdated (const Core::Property *p)
void	setHasErrors ()
	Sets the status to 'Error'. More...
void	setNew ()
	Sets the status to 'New'. More...
void	setValid ()
	Sets the status to 'Valid'. More...
void	setDeleted ()
	Sets the status to 'Delete'. More...
void	setMarkedForDelete ()
	Sets the status to 'MarkedForDelete'. More...
void	setMarkedForDeleteFinal ()
	Sets the status to 'MarkedForDeleteFinal'. More...
void	setDeleteFinal ()
	Sets the status to 'DeleteFinal'. More...
virtual void	breakLinks ()
	Sets all links of this container to null. More...
unsigned int	getPropertyChangeStatus () const
void	setAllPropertiesValid ()
	Sets the status of all properties to 'Valid'. More...
void	setPropertyValues (const Core::PropertyValueMap &other)
	Copies the property values from a Core::PropertyValueMap to this PropertyContainer. More...
std::vector< Core::Property * >	getPropertiesOrdered () const
	Returns the properties in the init order. More...
virtual bool	check_lx (char *f, char *n)
bool	rollBack ()
	Brings back the PropertyContainer to its last valid status. More...
void	saveLastValidPropertyMap ()
	Saves the last valid property map, p.e. before a recompute to enable a rollback. More...
const Core::PropertyValueMap &	getLastValidPropertyMap () const
	Returns the last valid PropertyValueMap. More...
virtual Core::Property *	addDynamicProperty (const char *type, const char *name=0, const char *group=0, const char *doc=0, short attr=0, bool ro=false, bool hidden=false)
DynamicProperty::PropData	getDynamicPropertyData (const Property *prop) const
virtual bool	removeDynamicProperty (const char *name)
virtual std::vector< std::string >	getDynamicPropertyNames () const
virtual Core::Property *	getDynamicPropertyByName (const char *name) const
Public Member Functions inherited from Base::Persistence
virtual void	saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
	This method is used to save large amounts of data to a binary file. More...
virtual void	restoreDocFile (Base::Reader &, const Base::String &)
	This method is used to restore large amounts of data from a binary file. More...
virtual bool	mustbeSaved () const
	Return 'true' if this object must always be saved in the file. More...
virtual bool	createSQL (Base::AbstractWriter &, Base::PersistenceVersion &, bool)
	This method is used to save properties or very small amounts of data to an XML document. More...
Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const
template<typename T >
bool	isDerivedFrom () const
bool	isDerivedFrom (const Type type) const
	BaseClass ()
	Construction. More...
virtual	~BaseClass ()
	Destruction. More...
Public Member Functions inherited from Base::Subject< Core::DocChanges >
	Subject ()
virtual	~Subject ()
void	attach (Observer< Core::DocChanges > *ToObserv)
void	detach (Observer< Core::DocChanges > *ToObserv)
void	observerDeleted (Observer< Core::DocChanges > *ToObserv)
void	detachAll ()
void	notify_internal (Core::DocChanges &rcReason, size_t deep)
void	notify (Core::DocChanges &rcReason)
Observer< Core::DocChanges > *	get (const char *Name)
std::vector< Observer< Core::DocChanges > * >	getAll ()
virtual const char *	subject_name (void)
void	resetObserverTime ()
std::map< std::string, double >	getObserverTime ()

Public Attributes
Core::PropertyText	name
Core::PropertyText	documentVersion
Core::PropertyText	compatibleInfo
Core::PropertyText	documentGUID
Core::PropertyIndex	documentChanges
Core::PropertyIndex	documentMaxID
Core::PropertyIndex	application_mainversion
Core::PropertyIndex	application_minorversion
Core::PropertyText	documentTypeName
Core::PropertyText	filename
Core::PropertyText	createdBy
Core::PropertyText	creationDate
Core::PropertyText	lastModifiedBy
Core::PropertyText	lastModifiedDate
Core::PropertyText	company
Core::PropertyText	comment
Core::PropertyText	projectNumber
Core::PropertyText	architect
Base::String	fileName
auto	onRecomputedCB
Public Attributes inherited from Core::PropertyContainer
bool	isRestored = false
Public Attributes inherited from Base::BaseClass
long	____deadVal = 0xBADEAFFE

Friends
class	CoreApplication
class	CoreDocument_Factory
class	PropertyGUID
class	DocumentTimeStampSentinel

Additional Inherited Members
Static Public Member Functions inherited from Base::Persistence
static std::string	encodeAttribute (const std::string &)
Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)
static void	init (void)
static void *	create (void)
static void	setIfcNameAndID (const std::string &n, int id)
Protected Types inherited from Core::PropertyContainer
enum	Status {   Status::New = 1, Status::Updated = 2, Status::Valid = 3, Status::MarkedForDelete = 4,   Status::MarkedForDeleteFinal, Status::Deleted, Status::DeletedFinal, Status::Error }
Protected Types inherited from Base::Subject< Core::DocChanges >
typedef std::set< ObserverHolder, CompareObservers >	ObserverSetType
Protected Member Functions inherited from Core::PropertyContainer
virtual void	onBeforeChangeProperty (const Property *prop)
virtual void	onChangedProperty (const Property *prop)
void	addPropertiesFrom (const Core::PropertyContainer *other)
	Adds copy of all properties from other to this PropertyContainer. More...
virtual void	setStatus (Status status)
Status	getStatus () const
bool	checkForAlreadyExistingProperty (Core::Property *property)
virtual void	restoreProperty (Core::Property *property, const Base::String &name, Base::AbstractXMLReader &reader, Base::PersistenceVersion &version)
	Restores property from from reader in specified version. More...
Protected Member Functions inherited from Base::Subject< Core::DocChanges >
std::vector< ObserverHolder >	getObserverSortedByPriority (const ObserverSetType &obs)
Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char *ClassName, const char *ParentName, Type::instantiationMethod method=0)
static void	initIfcTypes (const std::string &s, Base::Type classTypeId, int id)
Protected Attributes inherited from Core::PropertyContainer
unsigned int	_changedProperties
Protected Attributes inherited from Base::Subject< Core::DocChanges >
ObserverSetType	_ObserverSet
ObserverSetType	_ObserverSet_AddedLater
	Set of attached observers. More...
bool	_running_notify
	Set of attached observers at running notify. More...
std::list< Core::DocChanges >	_messages_WhileRunningNotify
std::map< std::string, double >	_observerTime

Member Enumeration Documentation

Status

enum Core::CoreDocument::Status

Enumerator
SkipRecompute
KeepTrailingDigits
Closable
Restoring
Recomputing
PartialRestore
Importing
PartialDoc
AllowPartialRecompute
TempDoc
RestoreError

Member Function Documentation

addObject()

bool Core::CoreDocument::addObject

(

Core::DocObject *

e

)

Adds an existing object to the document.

clearCopyType()

void Core::CoreDocument::clearCopyType

(

)

Sets the copy type to Base::Type::badType(), next copied object will be copied as its own type.

copyObject()

Core::DocObject* Core::CoreDocument::copyObject	(	Core::DocObject *	o,
		DocObjectMap &	copyMap = DocObjectMap()
	)

Creates a copy of 'o' and adds it to the document, provides map of pairs original-copy to see which object is a copy of another one.

copyObjectShallow()

template<typename Type >

Type Core::CoreDocument::copyObjectShallow ( Type  o )

inline

Creates a copy of 'o' and adds it to the document. Performs shallow copy.

copySharedObject()

Core::DocObject* Core::CoreDocument::copySharedObject	(	Core::DocObject *	o,
		DocObjectMap &	copyMap
	)

Copy shared object. This is violating of the share, but in some cases this is useful. Use wisely!!

copyToDifferentType()

Core::DocObject* Core::CoreDocument::copyToDifferentType	(	Core::DocObject *	o,
		Base::Type	typeToCreate,
		DocObjectMap &	copyMap
	)

Creates an object of type 'typeToCreate' and copy properties from 'o' to it. Provides map of pairs original-copy.

createObjectFromType()

Core::DocObject* Core::CoreDocument::createObjectFromType

(

Base::Type

type

)

Creates an object from type and adds it to the document.

createObjectFromTypeName()

Core::DocObject* Core::CoreDocument::createObjectFromTypeName

(

const char *

typeName

)

Creates an object from type name and adds it to the document.

getCopyType()

Base::Type Core::CoreDocument::getCopyType

(

)

const

Return type of which new copied element should be created. setCopyType is intentionally not available because it is decided in copy methods.

getDocumentVersion()

int Core::CoreDocument::getDocumentVersion

(

)

const

Returns the version of the document.

getObjects()

std::vector<Core::DocObject*> Core::CoreDocument::getObjects

(

bool

includeDeletedObjects = false

)

const

Returns all objects in the document.

getObjectsByTypeName()

std::vector<Core::DocObject*> Core::CoreDocument::getObjectsByTypeName

(

const std::string &

typeName

)

const

Returns all objects of typeName.

getObjectsConst()

std::vector<const Core::DocObject*> Core::CoreDocument::getObjectsConst

(

bool

includeDeletedObjects = false

)

const

getObjectsSorted()

std::vector<Core::DocObject*> Core::CoreDocument::getObjectsSorted

(

)

const

Returns all objects topologically sorted.

onBeforeChangeProperty()

void Core::CoreDocument::onBeforeChangeProperty	(	const Core::DocObject *	Who,
		const Property *	What
	)

callback from the Document objects before property will be changed

onChangedDebug()

virtual bool Core::CoreDocument::onChangedDebug ( Core::DocObject *  o, Core::Property *  p  )

virtual

onChangedProperty()

void Core::CoreDocument::onChangedProperty	(	const Core::DocObject *	Who,
		const Property *	What
	)

callback from the Document objects after property was changed

onFileOpened()

virtual void Core::CoreDocument::onFileOpened ( )

inlinevirtual

Is called when the file was opened, but before the message FileOpened gets emitted. Can be overwritten to add custom behavior.

recompute()

virtual void Core::CoreDocument::recompute ( )

virtual

Recomputes the document.

removeObject()

void Core::CoreDocument::removeObject

(

Core::DocObject *

e

)

Removes an object from the document.

removeObjectFinal()

void Core::CoreDocument::removeObjectFinal	(	Core::DocObject *	e,
		bool	deep = false
	)

Removes an object from the document.

Friends And Related Function Documentation

CoreApplication

friend class CoreApplication

friend

CoreDocument_Factory

friend class CoreDocument_Factory

friend

DocumentTimeStampSentinel

friend class DocumentTimeStampSentinel

friend

PropertyGUID

friend class PropertyGUID

friend

Member Data Documentation

application_mainversion

Core::PropertyIndex Core::CoreDocument::application_mainversion

application_minorversion

Core::PropertyIndex Core::CoreDocument::application_minorversion

architect

Core::PropertyText Core::CoreDocument::architect

comment

Core::PropertyText Core::CoreDocument::comment

company

Core::PropertyText Core::CoreDocument::company

compatibleInfo

Core::PropertyText Core::CoreDocument::compatibleInfo

createdBy

Core::PropertyText Core::CoreDocument::createdBy

creationDate

Core::PropertyText Core::CoreDocument::creationDate

documentChanges

Core::PropertyIndex Core::CoreDocument::documentChanges

documentGUID

Core::PropertyText Core::CoreDocument::documentGUID

documentMaxID

Core::PropertyIndex Core::CoreDocument::documentMaxID

documentTypeName

Core::PropertyText Core::CoreDocument::documentTypeName

documentVersion

Core::PropertyText Core::CoreDocument::documentVersion

filename

Core::PropertyText Core::CoreDocument::filename

fileName

Base::String Core::CoreDocument::fileName

lastModifiedBy

Core::PropertyText Core::CoreDocument::lastModifiedBy

lastModifiedDate

Core::PropertyText Core::CoreDocument::lastModifiedDate

name

Core::PropertyText Core::CoreDocument::name

onRecomputedCB

auto Core::CoreDocument::onRecomputedCB

Initial value:

= [this] (DOCOBJECTS newObj, DOCOBJECTS updatedObj,
     *  DOCOBJECTS deletedObj, DOCOBJECTS_ERROR_MAP errorObj)

Recomputes the document. Takes a lambda as an argument -> { /*CODE

projectNumber

Core::PropertyText Core::CoreDocument::projectNumber

---

The documentation for this class was generated from the following file:

• D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/Core/include/Core/CoreDocument.h
