Topo::SkinningOptions Class Reference

#include <NurbsOptions.h>

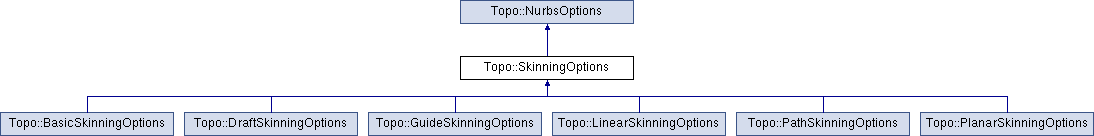

Inheritance diagram for Topo::SkinningOptions:

Public Types
enum	ClosedMode { ClosedMode::OPEN = 0, ClosedMode::CLOSED = 1, ClosedMode::LOOP = 2, ClosedMode::SOLID = 3 }

Public Member Functions
	SkinningOptions (void)
virtual	~SkinningOptions (void) override=default
void	setWiresU (const std::vector< pConstShape > &in)
void	setWiresU (const std::vector< pConstWire > &in)
std::vector< pConstWire >	getWiresU () const
void	setClosedMode (const ClosedMode &mode)
ClosedMode	getClosedMode () const
void	setSolid (const bool &solid)
bool	getSolid () const
void	setUniformUV (const bool &uniform)
bool	getArcLen () const
bool	getArcLenU () const
bool	getMerge () const
bool	getAllowUV () const
bool	getSelfIntersect () const
bool	getSimplify () const

Protected Member Functions
virtual void	init () override=0
void	setWires (std::vector< pConstWire > &u_or_vWires, const std::vector< pConstShape > &in)
Protected Member Functions inherited from Topo::NurbsOptions
	NurbsOptions ()=default
virtual	~NurbsOptions ()=default

Protected Attributes
bool	_allow_same_uv = true
bool	_arc_length = true
bool	_arc_length_u = true
bool	_merge_wirecoedges = true
bool	_self_int_test = false
bool	_simplify
ClosedMode	_closedMode = ClosedMode::OPEN
std::vector< pConstWire >	_uWires = {}

Member Enumeration Documentation

ClosedMode

enum Topo::SkinningOptions::ClosedMode

strong

Enumerator
OPEN
CLOSED
LOOP
SOLID

Constructor & Destructor Documentation

SkinningOptions()

Topo::SkinningOptions::SkinningOptions ( void  )

inline

~SkinningOptions()

virtual Topo::SkinningOptions::~SkinningOptions ( void  )

overridevirtualdefault

Member Function Documentation

getAllowUV()

bool Topo::SkinningOptions::getAllowUV ( ) const

inline

getArcLen()

bool Topo::SkinningOptions::getArcLen ( ) const

inline

getArcLenU()

bool Topo::SkinningOptions::getArcLenU ( ) const

inline

getClosedMode()

ClosedMode Topo::SkinningOptions::getClosedMode ( ) const

inline

getMerge()

bool Topo::SkinningOptions::getMerge ( ) const

inline

getSelfIntersect()

bool Topo::SkinningOptions::getSelfIntersect ( ) const

inline

getSimplify()

bool Topo::SkinningOptions::getSimplify ( ) const

inline

getSolid()

bool Topo::SkinningOptions::getSolid ( ) const

inline

getWiresU()

std::vector<pConstWire> Topo::SkinningOptions::getWiresU ( ) const

inline

init()

virtual void Topo::SkinningOptions::init ( )

overrideprotectedpure virtual

Implements Topo::NurbsOptions.

Implemented in Topo::PlanarSkinningOptions, Topo::PathSkinningOptions, Topo::LinearSkinningOptions, Topo::GuideSkinningOptions, Topo::DraftSkinningOptions, and Topo::BasicSkinningOptions.

setClosedMode()

void Topo::SkinningOptions::setClosedMode ( const ClosedMode &  mode )

inline

setSolid()

void Topo::SkinningOptions::setSolid ( const bool &  solid )

inline

setUniformUV()

void Topo::SkinningOptions::setUniformUV ( const bool &  uniform )

inline

setWires()

void Topo::SkinningOptions::setWires ( std::vector< pConstWire > &  u_or_vWires, const std::vector< pConstShape > &  in  )

protected

setWiresU() [1/2]

void Topo::SkinningOptions::setWiresU ( const std::vector< pConstShape > &  in )

inline

setWiresU() [2/2]

void Topo::SkinningOptions::setWiresU ( const std::vector< pConstWire > &  in )

inline

Member Data Documentation

_allow_same_uv

bool Topo::SkinningOptions::_allow_same_uv = true

protected

_arc_length

bool Topo::SkinningOptions::_arc_length = true

protected

_arc_length_u

bool Topo::SkinningOptions::_arc_length_u = true

protected

_closedMode

ClosedMode Topo::SkinningOptions::_closedMode = ClosedMode::OPEN

protected

_merge_wirecoedges

bool Topo::SkinningOptions::_merge_wirecoedges = true

protected

_self_int_test

bool Topo::SkinningOptions::_self_int_test = false

protected

_simplify

bool Topo::SkinningOptions::_simplify

protected

Initial value:

=
        false

_uWires

std::vector<pConstWire> Topo::SkinningOptions::_uWires = {}

protected

---

The documentation for this class was generated from the following file:

• D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/Topo/include/Topo/NurbsOptions.h
