IfcMaterialConstituent is a single and identifiable part of an element which is constructed of a number of part (one or more) each having an individual material. The association of the material constituent to the part is provided by a keyword as value of the Name attribute. In order to identify and distinguish the part of the shape representation to which the material constituent applies the IfcProductDefinitionShape of the element has to include instances of IfcShapeAspect, using the same keyword for their Name attribute. More...

#include <MaterialConstituent.h>

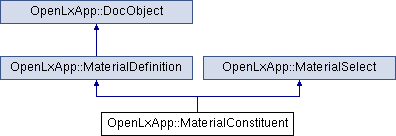

Inheritance diagram for OpenLxApp::MaterialConstituent:

Public Member Functions
Base::String	getName () const

void	setName (const Base::String &aValue)

Base::String	getDescription () const

void	setDescription (const Base::String &aValue)

double	getFraction () const

void	setFraction (const double &aValue)

Base::String	getCategory () const

void	setCategory (const Base::String &aValue)

	~MaterialConstituent ()

void	setMaterial (std::shared_ptr< Material > aMaterial)

std::shared_ptr< Material >	getMaterial () const

Public Member Functions inherited from OpenLxApp::MaterialDefinition
virtual	~MaterialDefinition (void)

Public Member Functions inherited from OpenLxApp::DocObject
std::shared_ptr< Document >	getDocument () const

bool	isNew () const

bool	isUpdated () const

bool	isValid () const

bool	hasErrors () const

void	touch ()

LxIfc4::LxIfc4EntityEnum	getEntityType () const

std::string	getEntityTypeAsString () const

std::shared_ptr< Core::DbgInfo >	getDbgInfo () const

	DocObject (Core::DocObject *aObject)

virtual	~DocObject (void)

Core::DocObject *	__getObj__ () const

Public Member Functions inherited from OpenLxApp::MaterialSelect
	MaterialSelect ()

virtual	~MaterialSelect ()

Additional Inherited Members
Protected Member Functions inherited from OpenLxApp::MaterialDefinition
	MaterialDefinition ()

Protected Member Functions inherited from OpenLxApp::DocObject
	DocObject ()

Protected Attributes inherited from OpenLxApp::DocObject
Core::DocObject *	_coreObj = nullptr

Detailed Description

IfcMaterialConstituent is a single and identifiable part of an element which is constructed of a number of part (one or more) each having an individual material. The association of the material constituent to the part is provided by a keyword as value of the Name attribute. In order to identify and distinguish the part of the shape representation to which the material constituent applies the IfcProductDefinitionShape of the element has to include instances of IfcShapeAspect, using the same keyword for their Name attribute.

NOTE See the "Material Use Definition" at the individual element to which an IfcMaterialConstituentSet may apply for a required or recommended definition of such keywords as value for MaterialConstituent.Name. (Definition from ISO/CD 16739:2011)

See also: Documentation from IFC4: IfcMaterialConstituent

Constructor & Destructor Documentation

◆ ~MaterialConstituent()

OpenLxApp::MaterialConstituent::~MaterialConstituent ( )

Member Function Documentation

◆ getCategory()

Base::String OpenLxApp::MaterialConstituent::getCategory ( ) const

◆ getDescription()

Base::String OpenLxApp::MaterialConstituent::getDescription ( ) const

◆ getFraction()

double OpenLxApp::MaterialConstituent::getFraction ( ) const

◆ getMaterial()

std::shared_ptr<Material> OpenLxApp::MaterialConstituent::getMaterial ( ) const

◆ getName()

Base::String OpenLxApp::MaterialConstituent::getName ( ) const

◆ setCategory()

void OpenLxApp::MaterialConstituent::setCategory ( const Base::String & aValue )

◆ setDescription()

void OpenLxApp::MaterialConstituent::setDescription ( const Base::String & aValue )

◆ setFraction()

void OpenLxApp::MaterialConstituent::setFraction ( const double & aValue )

◆ setMaterial()

void OpenLxApp::MaterialConstituent::setMaterial ( std::shared_ptr< Material > aMaterial )

◆ setName()

void OpenLxApp::MaterialConstituent::setName ( const Base::String & aValue )

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V28.0/lexocad/OpenLxApp/include/OpenLxApp/MaterialConstituent.h
